TL 70 S Terex TL 70 S Specifications & Technical Data (2015—2016)

The Terex TL 70 S is a wheel loader manufactured by Terex from 2015 to 2016. It has a weight of 5.4 tons and a transport length of…

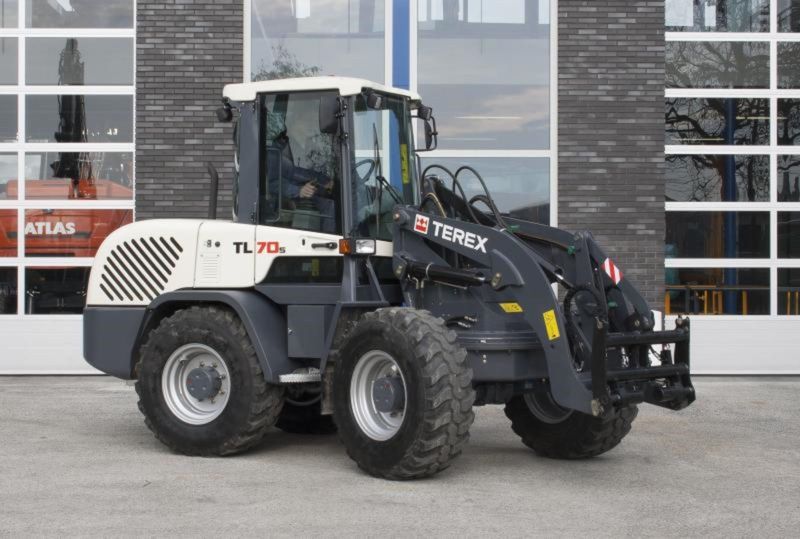

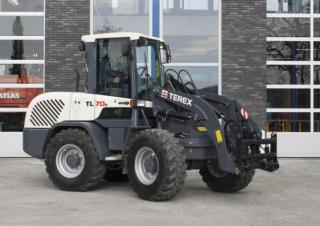

The Terex TL 70 S is a wheel loader manufactured by Terex from 2015 to 2016. It has a weight of 5.4 tons and a transport length of 4.96 meters. The bucket capacity is 0.7 cubic meters with a bucket width of 1.85 meters. The maximum discharge height is 2.6 meters and it has a travel speed of 36 km/h. The transport width is 1.85 meters and the transport height is 2.66 meters. It has a lifting force of 44.6 kN and a turning radius outside of 4.15 meters. The bucket capacity ranges from 0.7 to 1 cubic meters. It is equipped with special features such as a quick hitch mechanism and a swing loader.

TL 70 S

Years of manufacture: 2015—2016

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TL 70 S Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.4 t

Standard tyres: 12.5-20 MPT 10

Bucket width: 1.85 m

Bucket capacity: 0.7 m³

Bucket capacity min.: 0.7 m³

Bucket capacity max.: 1 m³

Steering mode: KL

Transport length: 4.96 m

Transport width: 1.85 m

Transport height: 2.66 m

Travel speed: 36 km/h

Max. discharge height: 2.6 m

Turning radius outside: 4.15 m

Lifting force: 44.6 kN

Model series: TL

More technical details, like: engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Terex TL 70 S FAQ

When was the Terex TL 70 S manufactured?

The Terex TL 70 S was manufactured from 2015 to 2016.

How much does the Terex TL 70 S wheel loader weigh?

The Terex TL 70 S wheel loader weighs 5.4 tons.

What are the transport dimensions of the Terex TL 70 S wheel loader?

The Terex TL 70 S has a transport length of 4.96 meters, a transport width of 1.85 meters, and a transport height of 2.66 meters.

What is the travel speed of the Terex TL 70 S wheel loader?

The Terex TL 70 S has a travel speed of 36 km/h.

What are the undercarriage specifications of the Terex TL 70 S wheel loader?

The Terex TL 70 S wheel loader is equipped with standard tyres sized 12.5-20 MPT 10.

What are the maneuverability specifications of the Terex TL 70 S wheel loader?

The Terex TL 70 S has an articulated-frame steering system and an outside turning radius of 4.15 meters.

What are the power ratings of the Terex TL 70 S wheel loader?

There are no power rating data available for the Terex TL 70 S wheel loader in the provided source.

What is the maximum discharge height of the Terex TL 70 S wheel loader?

The Terex TL 70 S wheel loader has a maximum discharge height of 2.6 meters.

What are the specifications of the bucket on the Terex TL 70 S wheel loader?

The Terex TL 70 S wheel loader has a bucket with a capacity ranging from 0.7 to 1 cubic meter and a width of 1.85 meters.
