TL 65 Terex TL 65 Specifications & Technical Data (2006—2013)

The Terex TL 65 is a wheel loader manufactured by Terex from 2006 to 2013. It has a weight of 3.9 tons and a transport length of 4…

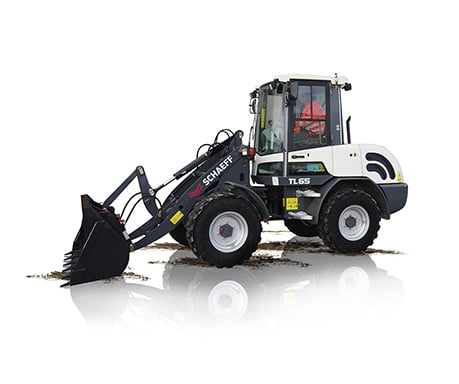

The Terex TL 65 is a wheel loader manufactured by Terex from 2006 to 2013. It has a weight of 3.9 tons and a transport length of 4.78 meters. The bucket capacity is 0.65 cubic meters with a width of 1.7 meters. The maximum discharge height is 2.52 meters. It has a travel speed of 20 km/h and a transport width and height of 1.7 meters and 2.61 meters respectively. The lifting force of this machine is 33 kN. It has a turning radius outside of 3.87 meters. The bucket capacity is a minimum of 0.65 cubic meters. Additionally, it is equipped with a telescopic feature.

TL 65

Years of manufacture: 2006—2013

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TL 65 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.9 t

Standard tyres: 365/70 R18

Bucket width: 1.7 m

Bucket capacity: 0.65 m³

Bucket capacity min.: 0.65 m³

Steering mode: KL

Transport length: 4.78 m

Transport width: 1.7 m

Transport height: 2.61 m

Travel speed: 20 km/h

Max. discharge height: 2.52 m

Turning radius outside: 3.87 m

Lifting force: 33 kN

Model series: TL

Engine manuf.: Deutz

Engine type: F4M2011

Engine power: 36.4 kW

Displacement: 3.1 l

Revolutions at max torque: 1500 rpm

No. of cylinders: 4

Cylinder bore x stroke: 94x112 mm

More technical details, like: bucket capacity max., dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Terex TL 65 FAQ

When was the Terex TL 65 manufactured?

The Terex TL 65 was manufactured from 2006 to 2013.

How much does the Terex TL 65 wheel loader weigh?

The Terex TL 65 wheel loader weighs 3.9 tons.

What are the transport dimensions of the Terex TL 65 wheel loader?

The Terex TL 65 has a transport length of 4.78 meters, a transport width of 1.7 meters, and a transport height of 2.61 meters.

What is the travel speed of the Terex TL 65 wheel loader?

The Terex TL 65 has a travel speed of 20 km/h.

What are the undercarriage specifications of the Terex TL 65 wheel loader?

The Terex TL 65 wheel loader is equipped with standard tyres sized 365/70 R18.

What are the maneuverability specifications of the Terex TL 65 wheel loader?

The Terex TL 65 wheel loader has an outside turning radius of 3.87 meters and features articulated-frame steering.

What power rating information is available for the Terex TL 65 wheel loader?

The source data does not provide power rating information for the Terex TL 65 wheel loader.

What is the maximum discharge height of the Terex TL 65 wheel loader?

The Terex TL 65 wheel loader has a maximum discharge height of 2.52 meters.

What are the specifications of the bucket on the Terex TL 65 wheel loader?

The Terex TL 65 wheel loader has a bucket with a capacity of 0.65 cubic meters and a width of 1.7 meters.

How much is a Terex TL 65 Wheel loader (2006u20132013) worth?

The residual value of the Terex TL 65 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
