SKS 634 Terex-Schaeff SKS 634 Specifications & Technical Data (2002—2006)

Model rating
5,00 / 10

The Terex-Schaeff SKS 634 is a wheel loader manufactured from 2002 to 2006. It has a weight of 5.2 tons and a transport length of …

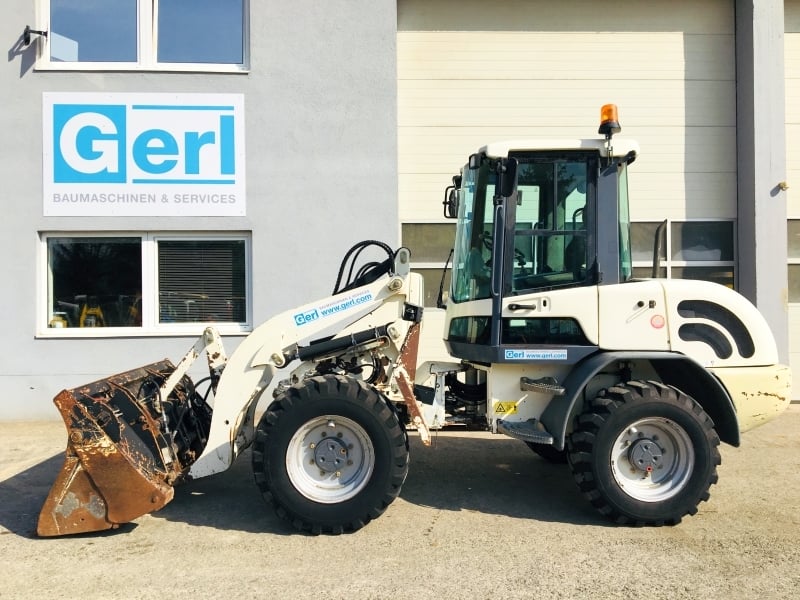

The Terex-Schaeff SKS 634 is a wheel loader manufactured from 2002 to 2006. It has a weight of 5.2 tons and a transport length of 4.96 meters. The bucket capacity is 1 cubic meter with a width of 1.85 meters. The maximum discharge height is 2.6 meters. It has a travel speed of 20 km/h and a transport width and height of 1.85 meters and 2.67 meters respectively. The lifting force is 44.6 kN and the turning radius outside is 4.15 meters. It is equipped with a quick hitch mechanism and a swing loader.

Wheel Loaders Terex-Schaeff SKS 634

Technical specs - SKS 634 Terex-Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.2 t
Standard tyres
12.5-20 MPT 10 PR
Bucket width
1.85 m
Bucket capacity
1 m³
Bucket capacity min.
1 m³
Steering mode
KL
Transport length
4.96 m
Transport width
1.85 m
Transport height
2.67 m
Travel speed
20 km/h
Max. discharge height
2.6 m
Turning radius outside
4.15 m
Lifting force
44.6 kN
Model series
SKS
Engine manuf.
Deutz
Engine type
F4M2011
Engine power
44 kW
Displacement
3.11 l
Revolutions at max torque
2400 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
Yes
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Terex-Schaeff SKS 634 FAQ

When was the Terex-Schaeff SKS 634 manufactured?

The Terex-Schaeff SKS 634 was manufactured from 2002 to 2006.

How much does the Terex-Schaeff SKS 634 weigh?

The Terex-Schaeff SKS 634 weighs 5.2 tons.

What are the transport dimensions of the Terex-Schaeff SKS 634 wheel loader?

The Terex-Schaeff SKS 634 has a transport length of 4.96 meters, a transport width of 1.85 meters, and a transport height of 2.67 meters.

What is the travel speed of the Terex-Schaeff SKS 634 wheel loader?

The Terex-Schaeff SKS 634 has a travel speed of 20 km/h.

What are the standard tyre specifications of the Terex-Schaeff SKS 634 wheel loader?

The Terex-Schaeff SKS 634 wheel loader is equipped with standard tyres sized 12.5-20 MPT 10 PR.

What are the maneuverability specifications of the Terex-Schaeff SKS 634 wheel loader?

The Terex-Schaeff SKS 634 has an outside turning radius of 4.15 meters and uses articulated-frame steering for maneuverability.

What is the lifting force of the Terex-Schaeff SKS 634 wheel loader?

The Terex-Schaeff SKS 634 wheel loader has a lifting force of 44.6 kN.

What is the maximum discharge height of the Terex-Schaeff SKS 634 wheel loader?

The Terex-Schaeff SKS 634 has a maximum discharge height of 2.6 meters.

What are the specifications of the bucket on the Terex-Schaeff SKS 634 wheel loader?

The Terex-Schaeff SKS 634 wheel loader has a bucket capacity of 1 cubic meter, a minimum bucket capacity of 1 cubic meter, and a bucket width of 1.85 meters.

How much is a Terex-Schaeff SKS 634 Wheel loader (2002u20132006) worth?

The residual value of the Terex-Schaeff SKS 634 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
