TW 9 Takeuchi TW 9 Specifications & Technical Data (2015—2016)

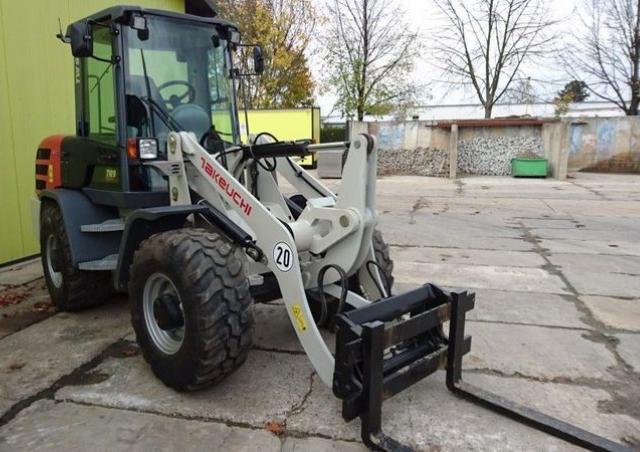

The Takeuchi TW 9 is a wheel loader manufactured from 2015 to 2016. It has a weight of 4.9 tons and a transport length of 5.08 met…

The Takeuchi TW 9 is a wheel loader manufactured from 2015 to 2016. It has a weight of 4.9 tons and a transport length of 5.08 meters. The bucket capacity is 0.8 cubic meters with a bucket width of 1.85 meters. The maximum discharge height is 2.55 meters and it has a travel speed of 20 km/h. The transport width is 1.78 meters and the transport height is 2.64 meters. The lifting force is 48 kN and the turning radius outside is 1.98 meters. The machine is equipped with a quick hitch hydr. for special operations.

TW 9

Years of manufacture: 2015—2016

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TW 9 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.9 t

Standard tyres: 405/70 R 28

Bucket width: 1.85 m

Bucket capacity: 0.8 m³

Bucket capacity min.: 0.8 m³

Steering mode: KL

Transport length: 5.08 m

Transport width: 1.78 m

Transport height: 2.64 m

Travel speed: 20 km/h

Max. discharge height: 2.55 m

Turning radius outside: 1.98 m

Lifting force: 48 kN

Model series: TW

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 45 kW

Displacement: 3.62 l

Revolutions at max torque: 2200 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Takeuchi TW 9 FAQ

When was the Takeuchi TW 9 manufactured?

The Takeuchi TW 9 was manufactured from 2015 to 2016.

How much does the Takeuchi TW 9 wheel loader weigh?

The Takeuchi TW 9 wheel loader weighs 4.9 tons.

What are the transport dimensions of the Takeuchi TW 9 wheel loader?

The Takeuchi TW 9 has a transport length of 5.08 meters, a transport width of 1.78 meters, and a transport height of 2.64 meters.

What is the travel speed of the Takeuchi TW 9 wheel loader?

The Takeuchi TW 9 has a travel speed of 20 km/h.

What are the undercarriage specifications of the Takeuchi TW 9 wheel loader?

The Takeuchi TW 9 wheel loader is equipped with standard tyres sized 405/70 R 28.

What is the outside turning radius and steering mode of the Takeuchi TW 9 wheel loader?

The Takeuchi TW 9 has an outside turning radius of 1.98 meters and features articulated-frame steering.

What is the lifting force of the Takeuchi TW 9 wheel loader?

The Takeuchi TW 9 wheel loader has a lifting force of 48 kN.

What is the maximum discharge height of the Takeuchi TW 9?

The Takeuchi TW 9 has a maximum discharge height of 2.55 meters.

What are the bucket specifications of the Takeuchi TW 9 wheel loader?

The Takeuchi TW 9 wheel loader has a bucket capacity of 0.8 cubic meters, a minimum bucket capacity of 0.8 cubic meters, and a bucket width of 1.85 meters.
