TW 9 Takeuchi TW 9 Specifications & Technical Data (2009—2015)

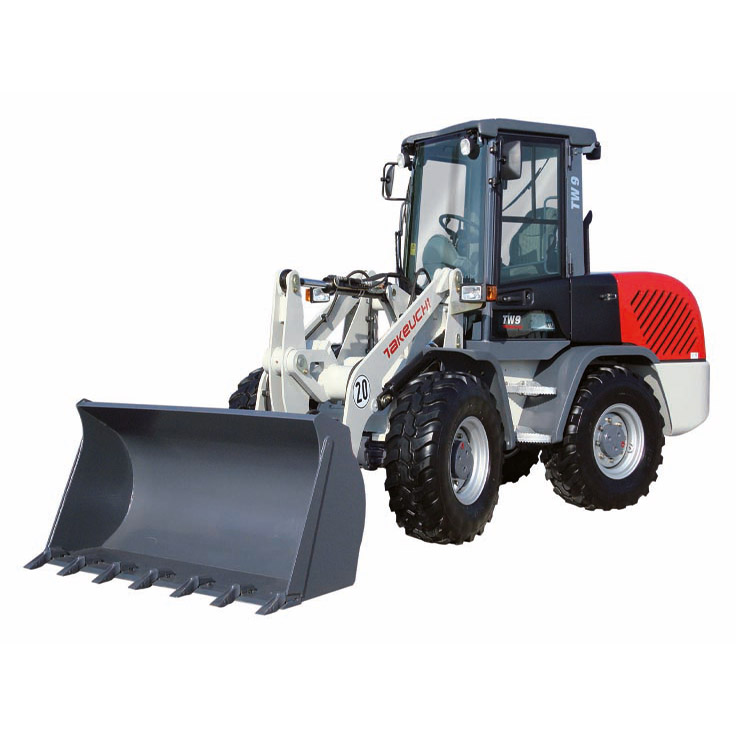

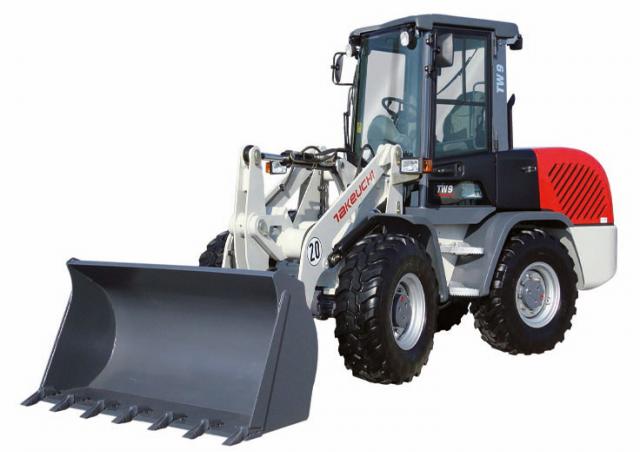

The Takeuchi TW 9 is a wheel loader manufactured by Takeuchi from 2009 to 2015. It has a weight of 4.9 tons and a transport length…

The Takeuchi TW 9 is a wheel loader manufactured by Takeuchi from 2009 to 2015. It has a weight of 4.9 tons and a transport length of 5.08 meters. The bucket capacity is 0.8 cubic meters with a bucket width of 1.85 meters. The maximum discharge height is 2.55 meters and it has a travel speed of 20 km/h. The transport width is 1.78 meters and the transport height is 2.64 meters. It has a lifting force of 48 kN and a turning radius outside of 1.98 meters. The special equipment included is a quick hitch hydr.

Wheel Loaders Takeuchi TW 9

Technical specs - TW 9 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.9 t
Standard tyres
405/70R28
Bucket width
1.85 m
Bucket capacity
0.8 m³
Bucket capacity min.
0.8 m³
Steering mode
KL
Transport length
5.08 m
Transport width
1.78 m
Transport height
2.64 m
Travel speed
20 km/h
Max. discharge height
2.55 m
Turning radius outside
1.98 m
Lifting force
48 kN
Model series
TW
Engine manuf.
Deutz
Engine type
D2011 L04w
Engine power
44 kW
Displacement
3.62 l
Revolutions at max torque
2200 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TW 9 FAQ

When was the Takeuchi TW 9 manufactured?

The Takeuchi TW 9 was manufactured from 2009 to 2015.

How much does the Takeuchi TW 9 weigh?

The Takeuchi TW 9 weighs 4.9 tons.

What are the transport dimensions of the Takeuchi TW 9 wheel loader?

The Takeuchi TW 9 has a transport length of 5.08 meters, a transport width of 1.78 meters, and a transport height of 2.64 meters.

What is the travel speed of the Takeuchi TW 9 wheel loader?

The Takeuchi TW 9 has a travel speed of 20 km/h.

What are the standard tyre specifications of the Takeuchi TW 9?

The Takeuchi TW 9 is equipped with standard tyres sized 405/70R28.

What are the maneuverability specifications of the Takeuchi TW 9 wheel loader?

The Takeuchi TW 9 wheel loader has an articulated-frame steering mode and an outside turning radius of 1.98 meters.

What power rating information is available for the Takeuchi TW 9 wheel loader?

The available data does not provide any power rating information for the Takeuchi TW 9 wheel loader.

What is the maximum discharge height of the Takeuchi TW 9 wheel loader?

The Takeuchi TW 9 wheel loader has a maximum discharge height of 2.55 meters.

What are the specifications of the bucket on the Takeuchi TW 9 wheel loader?

The bucket of the Takeuchi TW 9 has a capacity of 0.8 cubic meters and a width of 1.85 meters.
