656F SEM 656F Specifications & Technical Data (2026—2026)

Weight: 17.385t – Standard tyres: 23.5-25 – Bucket width: 3.117m – Bucket capacity min.: 2.6m³ – Bucket capacity max.: 5m³ – Steering mode: KL

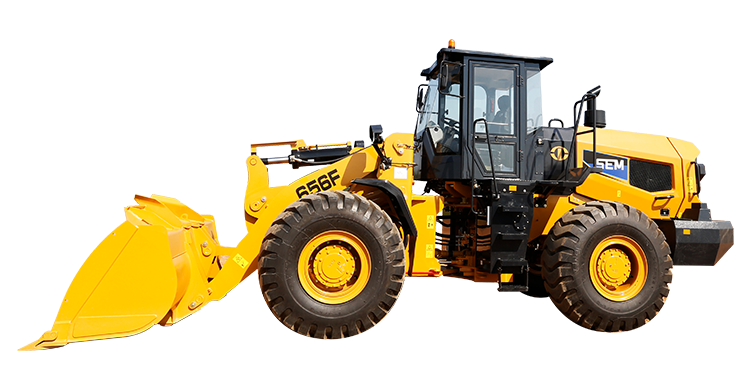

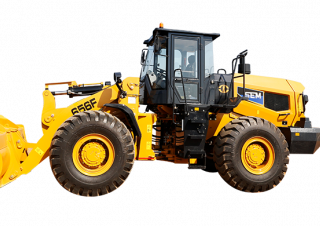

Wheel Loaders SEM 656F

Technical specs - 656F SEM

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.385 t
Standard tyres
23.5-25
Bucket width
3.117 m
Bucket capacity min.
2.6 m³
Bucket capacity max.
5 m³
Steering mode
KL
Transport length
8.472 m
Transport width
2.872 m
Transport height
3.465 m
Travel speed
39 km/h
Max. discharge height
2.991 m
Model series
F
Engine manuf.
Weichai
Engine type
WD10G220E23
Engine power
162 kW
Displacement
9.7 l

More technical details, like: bucket capacity, turning radius outside, lifting force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
