655D SEM 655D Specifications & Technical Data (2020—2026)

The SEM 655D is a wheel loader manufactured since 2020. It has a weight of 16.7 tons and a transport length of 8.085 meters. The b…

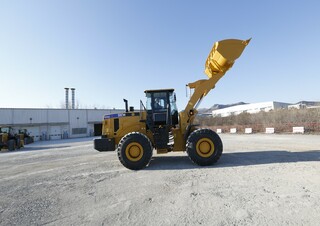

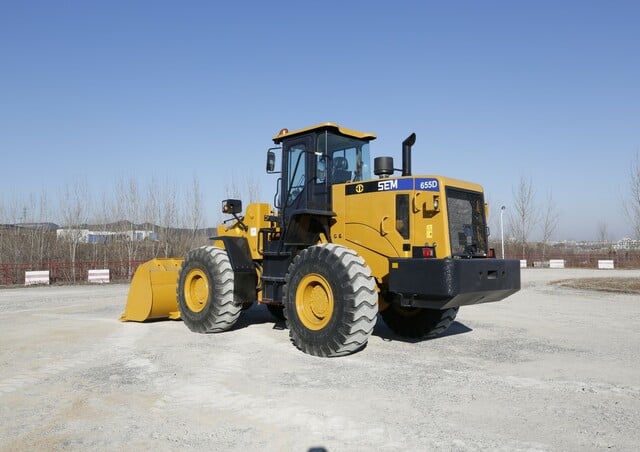

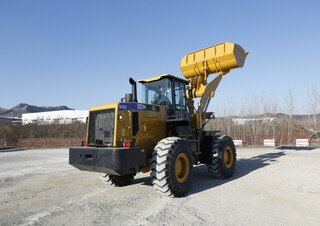

The SEM 655D is a wheel loader manufactured since 2020. It has a weight of 16.7 tons and a transport length of 8.085 meters. The bucket width is 2.963 meters and the maximum discharge height is 3.058 meters. It has a travel speed of 39 km/h and a transport width and height of 2.963 and 3.463 meters, respectively. The bucket capacity ranges from 2.7 to 4.5 cubic meters. Special equipment includes air conditioning.

655D

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 655D SEM

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16.7 t

Standard tyres: 23.5-25

Bucket width: 2.963 m

Bucket capacity min.: 2.7 m³

Bucket capacity max.: 4.5 m³

Steering mode: KL

Transport length: 8.085 m

Transport width: 2.963 m

Transport height: 3.463 m

Travel speed: 39 km/h

Max. discharge height: 3.058 m

Engine manuf.: Cummins

Engine type: 6LTAA9.3

Engine power: 162 kW

Displacement: 9.242 l

Revolutions at max torque: 2000 rpm

More technical details, like: bucket capacity, turning radius outside, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

655D SEM Specification for Europe (EN)

SEM 655D FAQ

When was the SEM 655D manufactured?

The SEM 655D was first produced in 2020.

How much does the SEM 655D wheel loader weigh?

The SEM 655D wheel loader weighs 16.7 tons.

What are the transport dimensions of the SEM 655D wheel loader?

The SEM 655D has a transport length of 8.09 meters, a transport width of 2.96 meters, and a transport height of 3.46 meters.

What is the travel speed of the SEM 655D wheel loader?

The SEM 655D wheel loader has a travel speed of 39 km/h.

What is the standard tyre size of the SEM 655D wheel loader?

The SEM 655D wheel loader is equipped with standard tyres sized 23.5-25.

What is the steering mode of the SEM 655D wheel loader?

The SEM 655D wheel loader has articulated-frame steering.

What is the maximum discharge height of the SEM 655D?

The SEM 655D has a maximum discharge height of 3.06 meters.

What are the specifications of the bucket on the SEM 655D wheel loader?

The SEM 655D wheel loader has a bucket with a maximum capacity of 4.5 cubic meters, a minimum capacity of 2.7 cubic meters, and a width of 2.96 meters.
