9640 T-2 Schäffer 9640 T-2 Specifications & Technical Data (2021—2024)

The Schäffer 9640 T-2 is a wheel loader manufactured since 2021. It has a weight of 9.7 tons and a transport length of 6.13 meters…

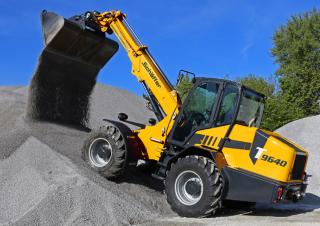

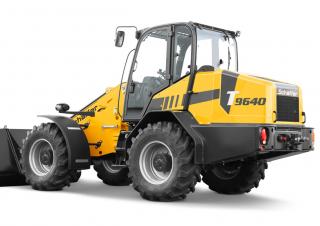

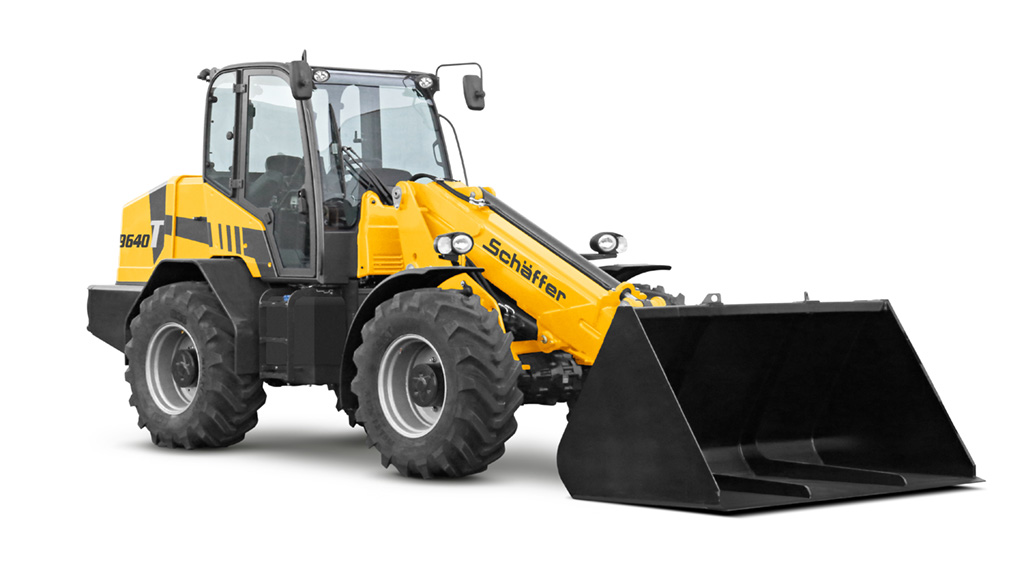

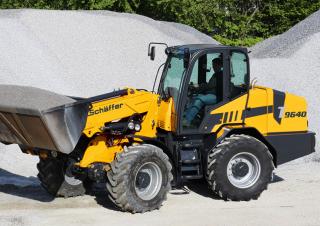

The Schäffer 9640 T-2 is a wheel loader manufactured since 2021. It has a weight of 9.7 tons and a transport length of 6.13 meters. The maximum discharge height is 4.7 meters, and it can travel at a speed of 20 km/h. The transport width is 2.075 meters, and the transport height is 2.64 meters. It has a lifting force of 41 kN and a turning radius outside of 4.43 meters. Special equipment includes a telescopic mechanism.

9640 T-2

Years of manufacture: 2021—2024

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 9640 T-2 Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.7 t

Standard tyres: 460/70 R24 AS

Steering mode: KL

Transport length: 6.13 m

Transport width: 2.075 m

Transport height: 2.64 m

Travel speed: 20 km/h

Max. discharge height: 4.7 m

Turning radius outside: 4.43 m

Lifting force: 41.19 kN

Engine manuf.: Deutz

Engine type: TCD3.6

Engine power: 105 kW

Displacement: 3.621 l

No. of cylinders: 4

Emission level: V

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Schäffer 9640 T-2 FAQ

When was the Schu00e4ffer 9640 T-2 manufactured?

The Schu00e4ffer 9640 T-2 was manufactured from 2021 to 2024.

How much does the Schu00e4ffer 9640 T-2 weigh?

The Schu00e4ffer 9640 T-2 weighs 9.7 tons.

What are the transport dimensions of the Schu00e4ffer 9640 T-2 wheel loader?

The Schu00e4ffer 9640 T-2 has a transport length of 6.13 meters, a transport width of 2.08 meters, and a transport height of 2.64 meters.

What is the travel speed of the Schu00e4ffer 9640 T-2 wheel loader?

The Schu00e4ffer 9640 T-2 has a travel speed of 20 km/h.

What are the undercarriage specifications of the Schu00e4ffer 9640 T-2 wheel loader?

The Schu00e4ffer 9640 T-2 wheel loader is equipped with standard tyres sized 460/70 R24 AS.

What are the maneuverability specifications of the Schu00e4ffer 9640 T-2 wheel loader?

The Schu00e4ffer 9640 T-2 has an articulated-frame steering system and an outside turning radius of 4.43 meters.

What is the power rating of the Schu00e4ffer 9640 T-2 wheel loader?

The source data does not provide power rating information for the Schu00e4ffer 9640 T-2 wheel loader.

What is the maximum discharge height of the Schu00e4ffer 9640 T-2?

The Schu00e4ffer 9640 T-2 has a maximum discharge height of 4.7 meters.

How much is a Schu00e4ffer 9640 T-2 Wheel loader (2021u20132024) worth?

The residual value of the Schu00e4ffer 9640 T-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
