6680 T Schäffer 6680 T Specifications & Technical Data (2019—2024)

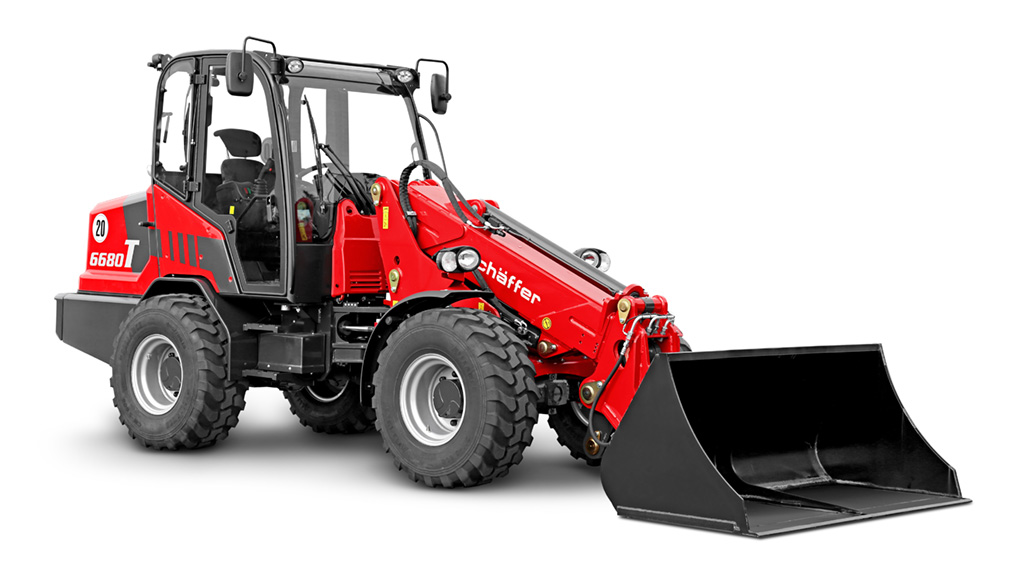

The Schäffer 6680 T is a wheel loader manufactured since 2019. It has a weight of 5.6 tons and a transport length of 5.05 meters. …

The Schäffer 6680 T is a wheel loader manufactured since 2019. It has a weight of 5.6 tons and a transport length of 5.05 meters. The maximum discharge height is 3.93 meters, and it can travel at a speed of 20 km/h. The transport width is 1.71 meters, and the transport height is 2.63 meters. It has a lifting force of 30.4 kN and a turning radius outside of 3.36 meters. Special equipment includes a telescopic feature.

6680 T

Years of manufacture: 2019—2024

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 6680 T Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.6 t

Standard tyres: 400/70-20 AS

Steering mode: KL

Transport length: 5.05 m

Transport width: 1.71 m

Transport height: 2.63 m

Travel speed: 20 km/h

Max. discharge height: 3.93 m

Turning radius outside: 3.36 m

Lifting force: 30.4 kN

Engine manuf.: Deutz

Engine type: TCD2.9

Engine power: 55 kW

Displacement: 2.9 l

No. of cylinders: 4

Emission level: V

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Schäffer 6680 T FAQ

When was the Schu00e4ffer 6680 T manufactured?

The Schu00e4ffer 6680 T was manufactured from 2019 to 2024.

How much does the Schu00e4ffer 6680 T wheel loader weigh?

The Schu00e4ffer 6680 T wheel loader weighs 5.6 tons.

What are the transport dimensions of the Schu00e4ffer 6680 T wheel loader?

The Schu00e4ffer 6680 T has a transport length of 5.05 meters, a transport width of 1.71 meters, and a transport height of 2.63 meters.

What is the travel speed of the Schu00e4ffer 6680 T wheel loader?

The Schu00e4ffer 6680 T has a travel speed of 20 km/h.

What are the undercarriage specifications of the Schu00e4ffer 6680 T wheel loader?

The Schu00e4ffer 6680 T wheel loader is equipped with standard tyres sized 400/70-20 AS.

What are the maneuverability specifications of the Schu00e4ffer 6680 T wheel loader?

The Schu00e4ffer 6680 T has an articulated-frame steering system and an outside turning radius of 3.36 meters.

What is the lifting force of the Schu0000e4ffer 6680 T wheel loader?

The Schu0000e4ffer 6680 T wheel loader has a lifting force of 30.4 kN.

What is the material handling capacity of the Schu00e4ffer 6680 T in terms of maximum discharge height?

The Schu00e4ffer 6680 T has a maximum discharge height of 3.93 meters for material handling.
