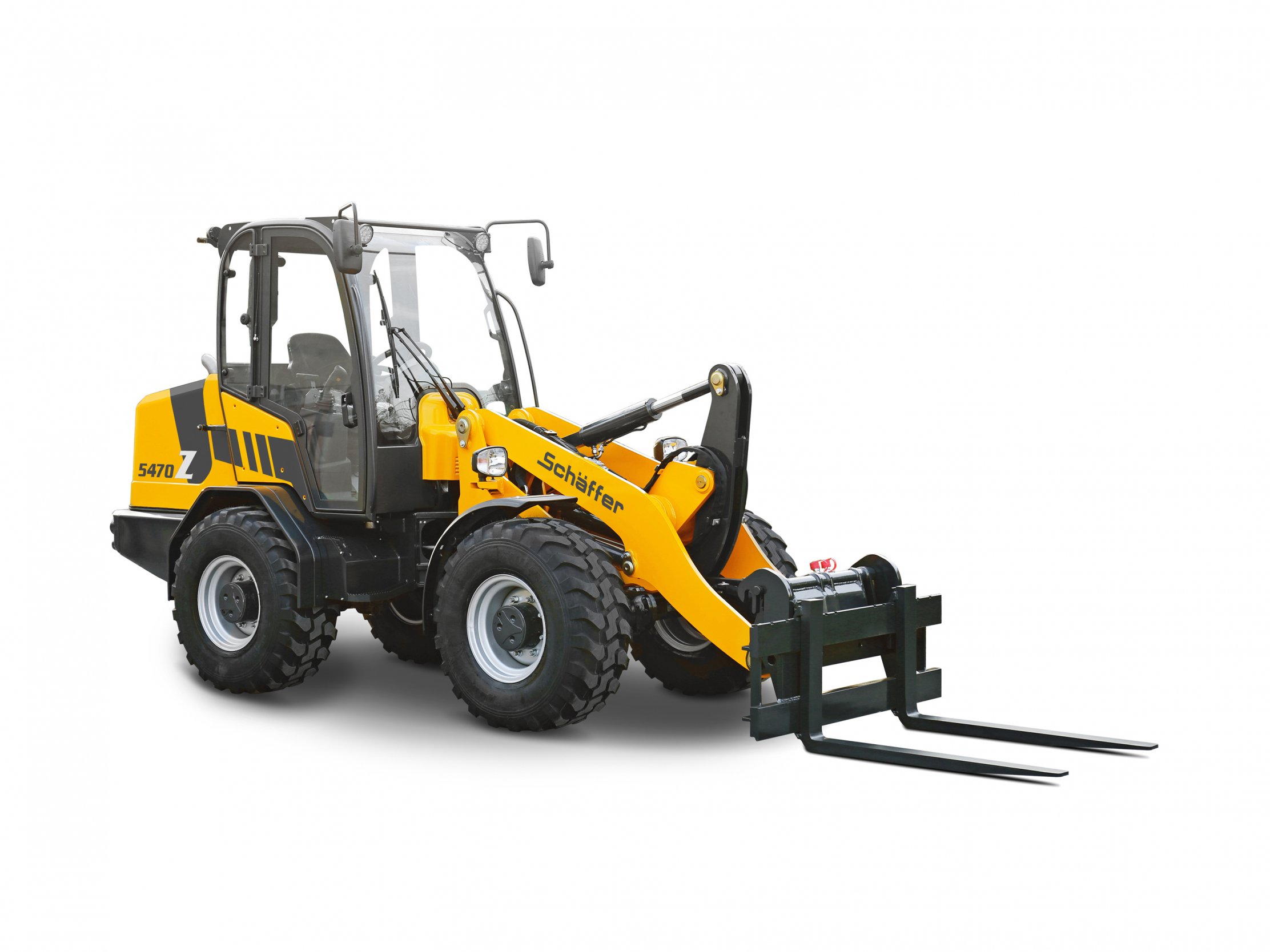

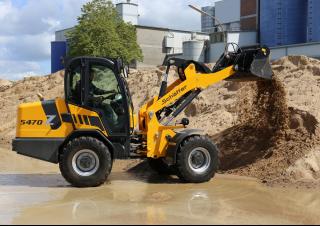

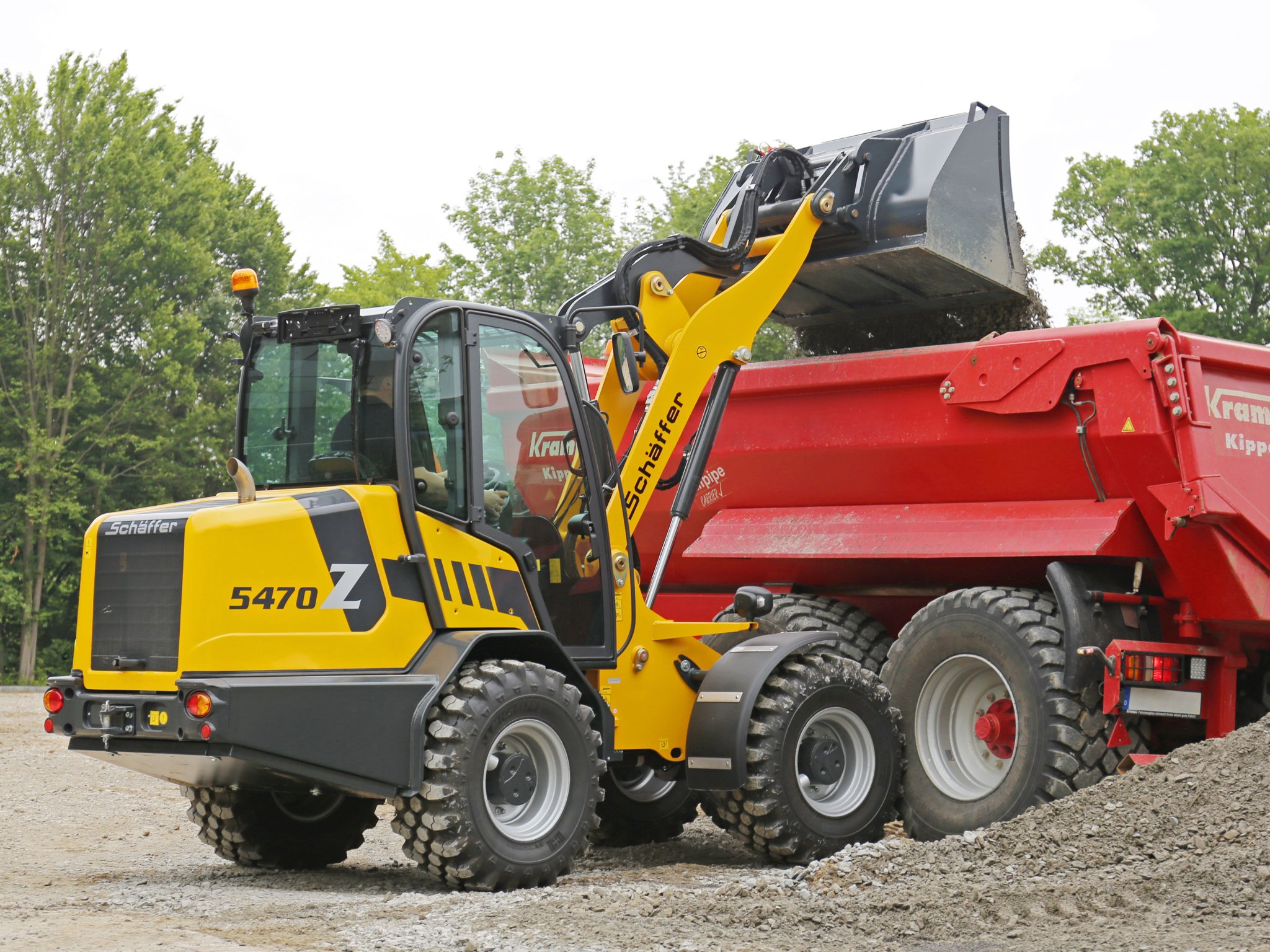

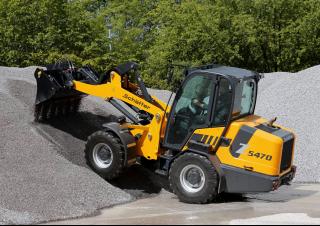

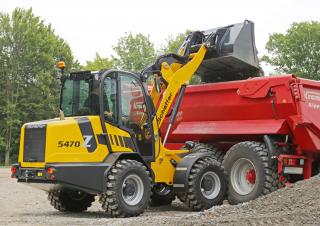

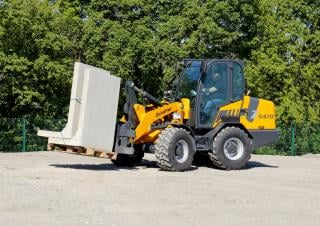

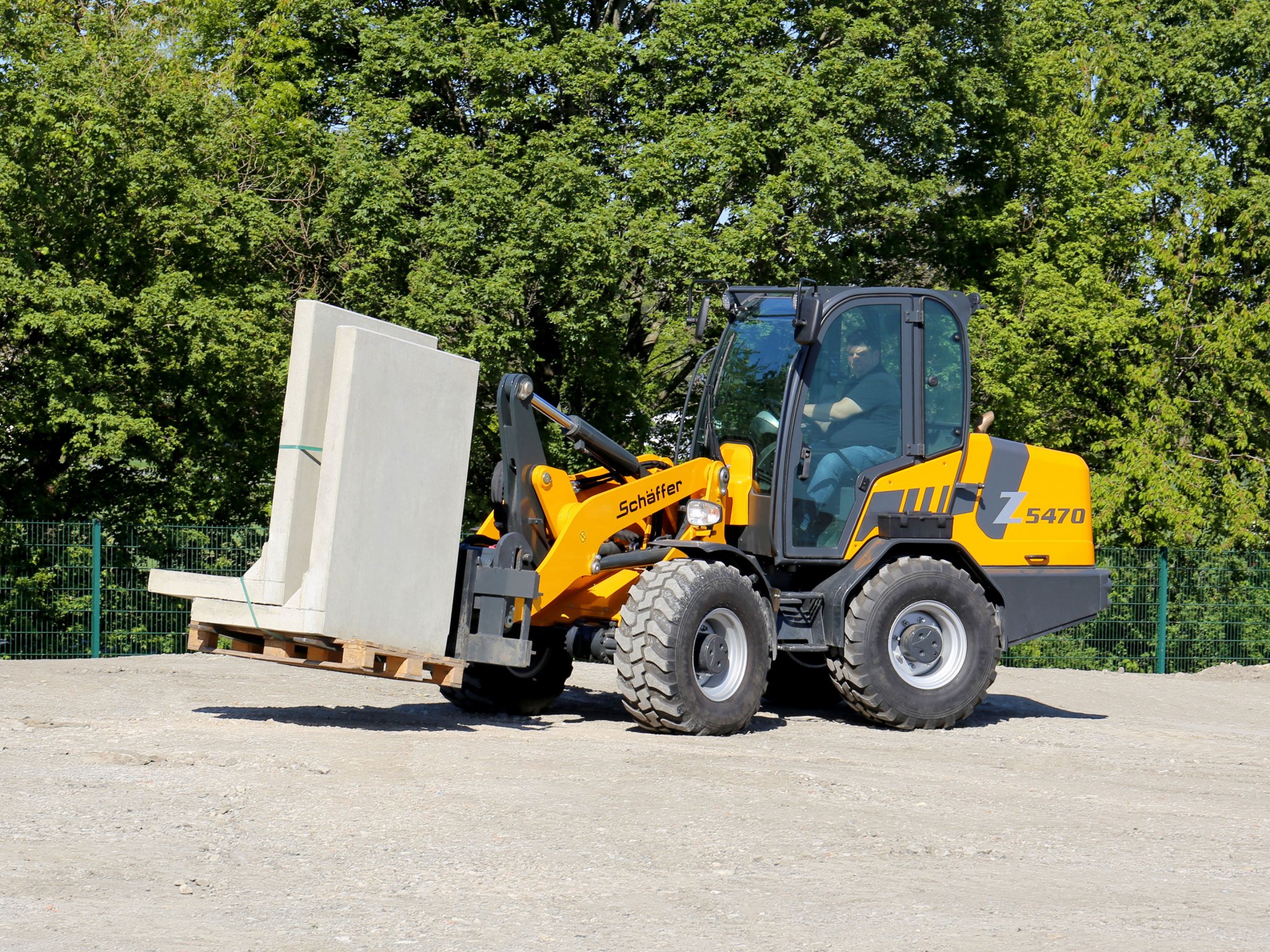

5470 Z Schäffer 5470 Z Specifications & Technical Data (2026—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Schäffer live at
Technical specs - 5470 Z Schäffer
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 5.215 t
- Standard tyres
- 400/70R18 A068
- Bucket width
- 1.8 m
- Bucket capacity
- 0.8 m³
- Steering mode
- KL
- Transport length
- 5.25 m
- Transport width
- 1.82 m
- Transport height
- 2.57 m
- Travel speed
- 20 km/h
- Max. discharge height
- 2.5 m
- Turning radius outside
- 3.47 m
- Engine manuf.
- Deutz
- Engine type
- TD2.9
- Engine power
- 55 kW
- Displacement
- 2.925 l
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: bucket capacity min., bucket capacity max., lifting force, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
No
- Swing loader
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
