4670 T Schäffer 4670 T Specifications & Technical Data (2019—2024)

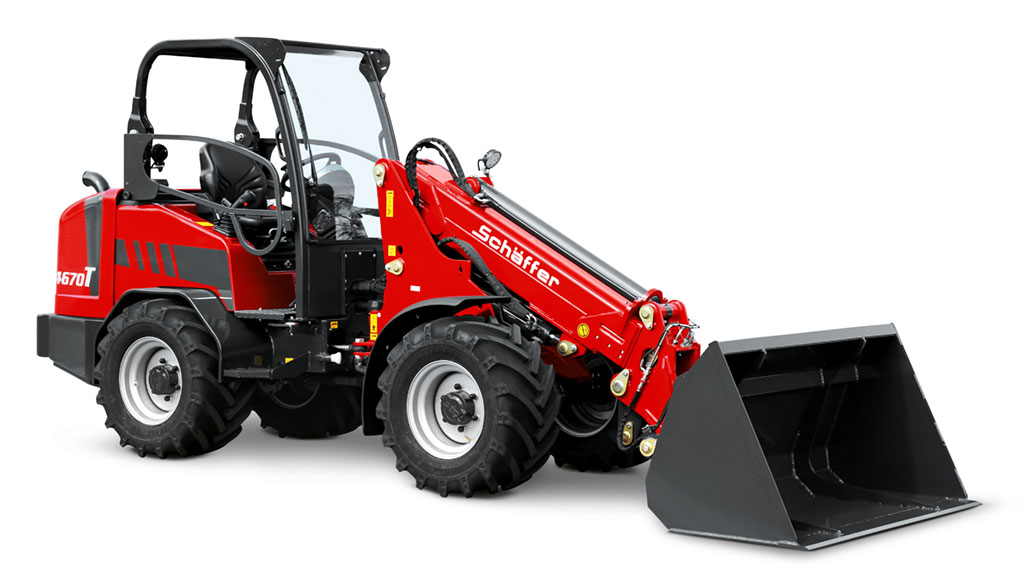

The Schäffer 4670 T is a wheel loader manufactured since 2019. It has a weight of 3.9 tons and a transport length of 4.265 meters.…

The Schäffer 4670 T is a wheel loader manufactured since 2019. It has a weight of 3.9 tons and a transport length of 4.265 meters. The maximum discharge height is 3.33 meters and it can travel at a speed of 20 km/h. The transport width is 1.42 meters and the transport height is 2.27 meters. It has a lifting force of 23.54 kN and a turning radius outside of 2.68 meters. Special equipment includes a telescopic feature.

4670 T

Years of manufacture: 2019—2024

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 4670 T Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.9 t

Standard tyres: 15.0/55-17 AS

Steering mode: KL

Transport length: 4.265 m

Transport width: 1.42 m

Transport height: 2.27 m

Travel speed: 20 km/h

Max. discharge height: 3.33 m

Turning radius outside: 2.68 m

Lifting force: 23.54 kN

Engine manuf.: Kubota

Engine type: V2403-CR-T

Engine power: 48.6 kW

No. of cylinders: 4

Emission level: V

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Schäffer 4670 T FAQ

When was the Schu00e4ffer 4670 T manufactured?

The Schu00e4ffer 4670 T was manufactured from 2019 to 2024.

How much does the Schu00e4ffer 4670 T wheel loader weigh?

The Schu00e4ffer 4670 T wheel loader weighs 3.9 tons.

What are the transport dimensions of the Schu00e4ffer 4670 T wheel loader?

The Schu00e4ffer 4670 T has a transport length of 4.27 meters, a transport width of 1.42 meters, and a transport height of 2.27 meters.

What is the travel speed of the Schu00e4ffer 4670 T wheel loader?

The Schu00e4ffer 4670 T has a travel speed of 20 km/h.

What is the standard tyres undercarriage specification of the Schu0000e4ffer 4670 T wheel loader?

The Schu0000e4ffer 4670 T wheel loader has standard tyres sized 15.0/55-17 AS.

What are the maneuverability specifications of the Schu00e4ffer 4670 T wheel loader?

The Schu00e4ffer 4670 T has an articulated-frame steering system and an outside turning radius of 2.68 meters.

What are the power ratings of the Schu0000e4ffer 4670 T wheel loader?

The source data does not provide power ratings for the Schu0000e4ffer 4670 T wheel loader.

What is the material handling capacity of the Schu00e4ffer 4670 T in terms of discharge height?

The Schu00e4ffer 4670 T has a maximum discharge height of 3.33 meters.

How much is a Schu00e4ffer 4670 T Wheel loader (2019u20132024) worth?

The residual value of the Schu00e4ffer 4670 T depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
