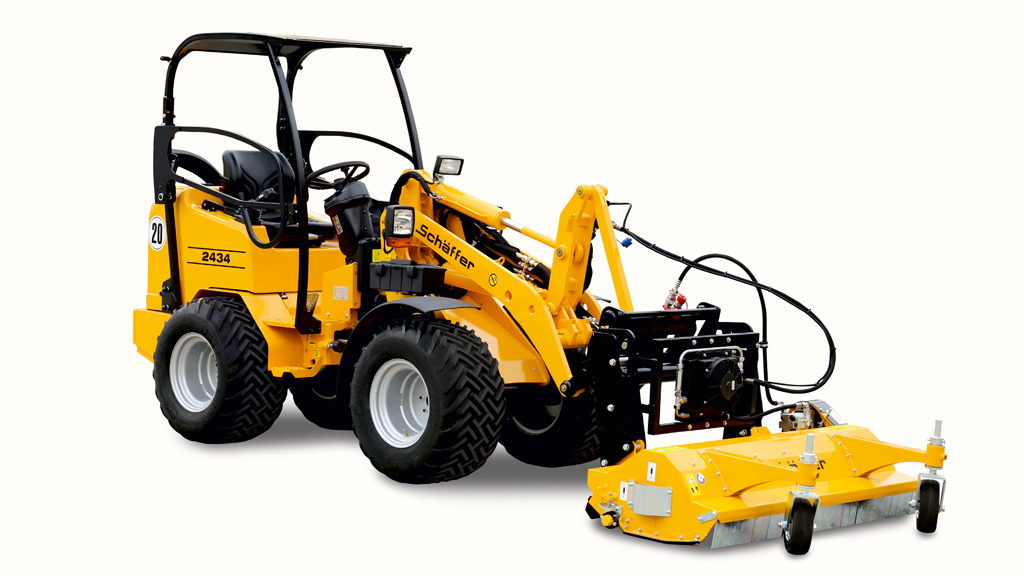

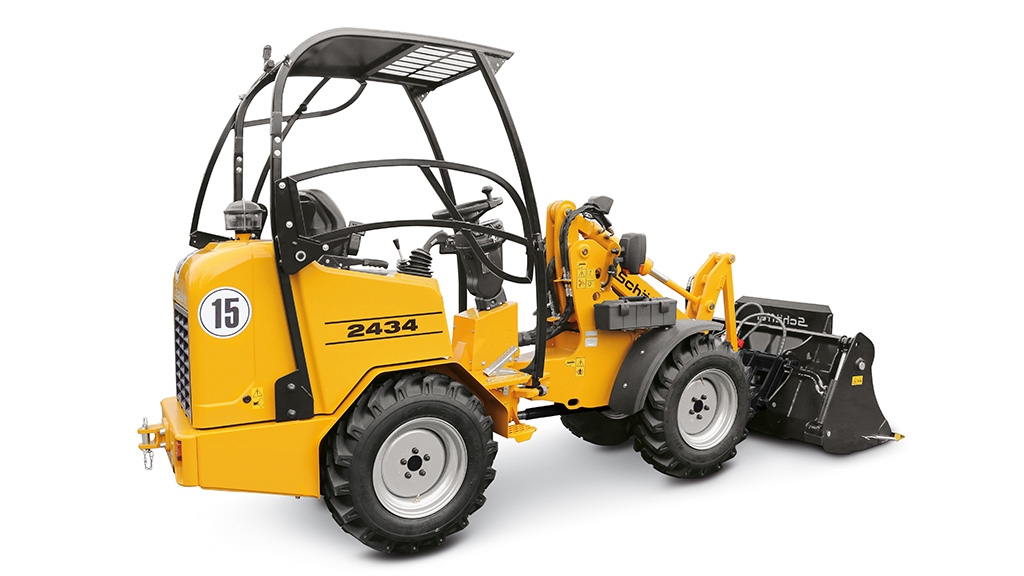

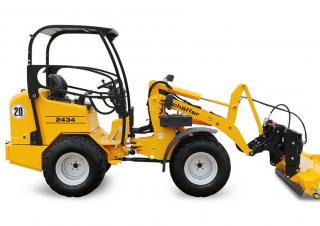

2434 Schäffer 2434 Specifications & Technical Data (2016—2018)

The Schäffer 2434 is a compact wheel loader manufactured from 2016 to 2018. It has a weight of 2.2 tons and a transport length of …

The Schäffer 2434 is a compact wheel loader manufactured from 2016 to 2018. It has a weight of 2.2 tons and a transport length of 3.8 meters. The bucket capacity is 0.42 cubic meters with a width of 1.1 meters. The maximum discharge height is 1.7 meters. It has a travel speed of 15 km/h and a transport width of 1.02 meters. The transport height is 2.22 meters and the turning radius outside is 2.31 meters. The minimum bucket capacity is also 0.42 cubic meters.

2434

Years of manufacture: 2016—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2434 Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.2 t

Standard tyres: 10.0/75-15.3 AS

Bucket width: 1.1 m

Bucket capacity: 0.42 m³

Bucket capacity min.: 0.42 m³

Steering mode: KL

Transport length: 3.8 m

Transport width: 1.02 m

Transport height: 2.22 m

Travel speed: 15 km/h

Max. discharge height: 1.7 m

Turning radius outside: 2.31 m

More technical details, like: bucket capacity max., lifting force, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

2434 Schäffer Specification for Europe (DE)

Schäffer 2434 FAQ

When was the Schu00e4ffer 2434 manufactured?

The Schu00e4ffer 2434 was manufactured from 2016 to 2018.

How much does the Schu00e4ffer 2434 wheel loader weigh?

The Schu00e4ffer 2434 wheel loader weighs 2.2 tons.

What are the transport dimensions of the Schu00e4ffer 2434 wheel loader?

The Schu00e4ffer 2434 has a transport length of 3.8 meters, a transport width of 1.02 meters, and a transport height of 2.22 meters.

What is the travel speed of the Schu00e4ffer 2434 wheel loader?

The Schu00e4ffer 2434 wheel loader has a travel speed of 15 km/h.

What are the standard tyre specifications of the Schu0000e4ffer 2434 wheel loader?

The Schu0000e4ffer 2434 wheel loader is equipped with standard tyres sized 10.0/75-15.3 AS.

What are the maneuverability specifications of the Schu00e4ffer 2434 wheel loader?

The Schu00e4ffer 2434 wheel loader has an outside turning radius of 2.31 meters and uses articulated-frame steering.

What is the maximum discharge height of the Schu0000e4ffer 2434?

The Schu0000e4ffer 2434 has a maximum discharge height of 1.7 meters.

What are the bucket specifications of the Schu00e4ffer 2434 wheel loader?

The Schu00e4ffer 2434 wheel loader has a bucket capacity of 0.42 cubic meters and a bucket width of 1.1 meters.

How much is a Schu00e4ffer 2434 Wheel loader (2016u20132018) worth?

The residual value of the Schu00e4ffer 2434 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
