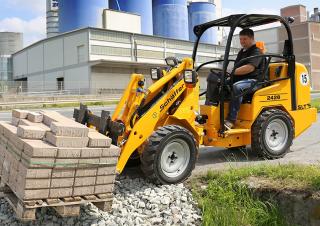

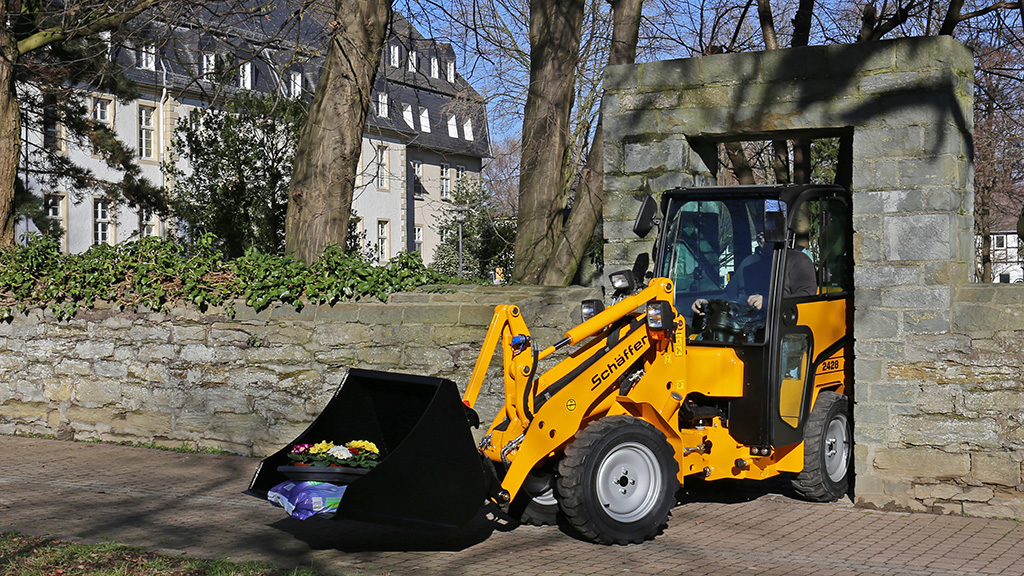

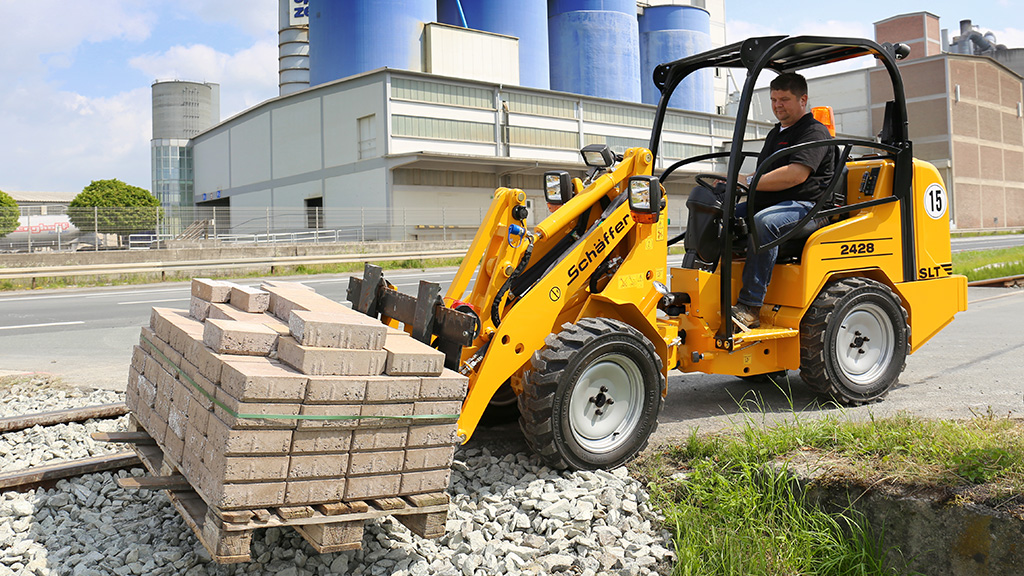

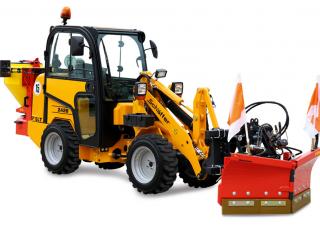

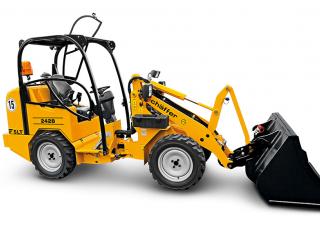

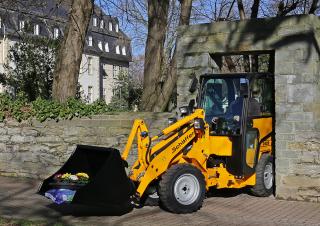

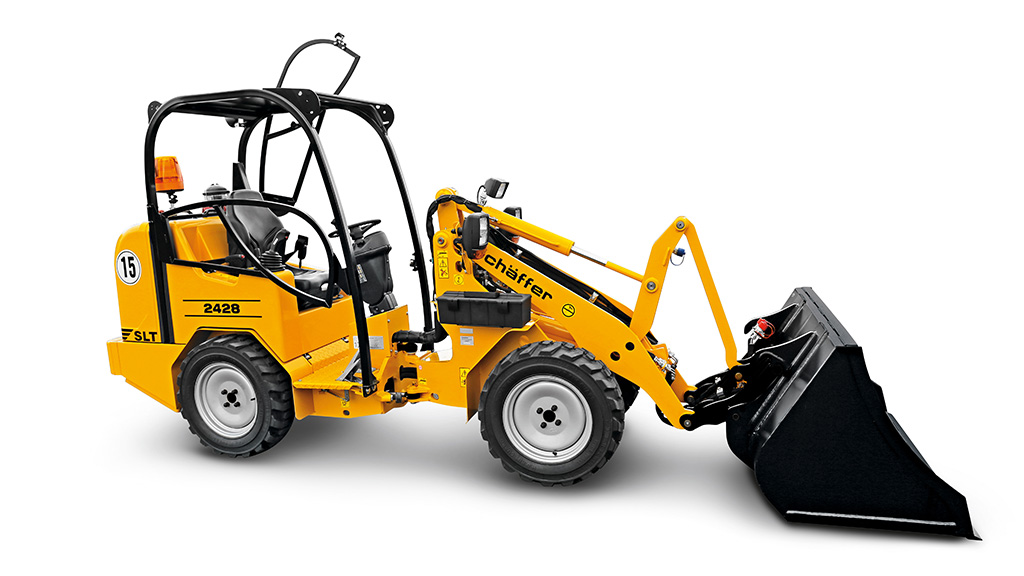

2428 SLT Schäffer 2428 SLT Specifications & Technical Data (2016—2021)

The Schäffer 2428 SLT is a wheel loader manufactured by Schäffer from 2016 to 2021. It has a weight of 1.96 tons and a transport l…

The Schäffer 2428 SLT is a wheel loader manufactured by Schäffer from 2016 to 2021. It has a weight of 1.96 tons and a transport length of 3.95 meters. The bucket capacity is 0.37 cubic meters with a bucket width of 1 meter. The maximum discharge height is 1.45 meters and it has a travel speed of 15 km/h. The transport width is 0.94 meters and the transport height is 2.3 meters. The turning radius outside is 2.51 meters.

Wheel Loaders Schäffer 2428 SLT
Wheel Loaders Schäffer 2428 SLT
Wheel Loaders Schäffer 2428 SLT
Wheel Loaders Schäffer 2428 SLT
Wheel Loaders Schäffer 2428 SLT
Wheel Loaders Schäffer 2428 SLT
Wheel Loaders Schäffer 2428 SLT
Wheel Loaders Schäffer 2428 SLT

Technical specs - 2428 SLT Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.96 t
Standard tyres
27.8.50-15
Bucket width
1 m
Bucket capacity
0.37 m³
Steering mode
KL
Transport length
3.95 m
Transport width
0.94 m
Transport height
2.3 m
Travel speed
15 km/h
Max. discharge height
1.45 m
Turning radius outside
2.51 m
Lifting force
18.63 kN
Engine manuf.
Kubota
Engine type
D1703-M-DI
Engine power
18.5 kW
Displacement
1.647 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
Tier 4b

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Schäffer 2428 SLT FAQ

When was the Schu00e4ffer 2428 SLT manufactured?

The Schu00e4ffer 2428 SLT was manufactured from 2016 to 2021.

How much does the Schu00e4ffer 2428 SLT wheel loader weigh?

The Schu00e4ffer 2428 SLT wheel loader weighs 1.96 tons.

What are the transport dimensions of the Schu00e4ffer 2428 SLT wheel loader?

The Schu00e4ffer 2428 SLT has a transport length of 3.95 meters, a transport width of 0.94 meters, and a transport height of 2.3 meters.

What is the travel speed of the Schu00e4ffer 2428 SLT wheel loader?

The Schu00e4ffer 2428 SLT has a travel speed of 15 km/h.

What are the standard tyre specifications for the Schu00e4ffer 2428 SLT wheel loader?

The Schu00e4ffer 2428 SLT wheel loader is equipped with standard tyres sized 27.8.50-15.

What are the maneuverability specifications of the Schu00e4ffer 2428 SLT wheel loader?

The Schu00e4ffer 2428 SLT wheel loader has an articulated-frame steering mode and an outside turning radius of 2.51 meters.

What is the lifting force of the Schu0000e4ffer 2428 SLT wheel loader?

The Schu0000e4ffer 2428 SLT wheel loader has a lifting force of 18.63 kN.

What is the maximum discharge height of the Schu0000e4ffer 2428 SLT?

The Schu0000e4ffer 2428 SLT has a maximum discharge height of 1.45 meters.

What are the specifications of the primary work tool bucket on the Schu00e4ffer 2428 SLT?

The primary work tool bucket of the Schu00e4ffer 2428 SLT has a capacity of 0.37 cubic meters and a width of 1 meter.

How much is a Schu00e4ffer 2428 SLT Wheel loader (2016u20132021) worth?

The residual value of the Schu00e4ffer 2428 SLT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
