TL 70 S Schaeff TL 70 S Specifications & Technical Data (2017—2026)

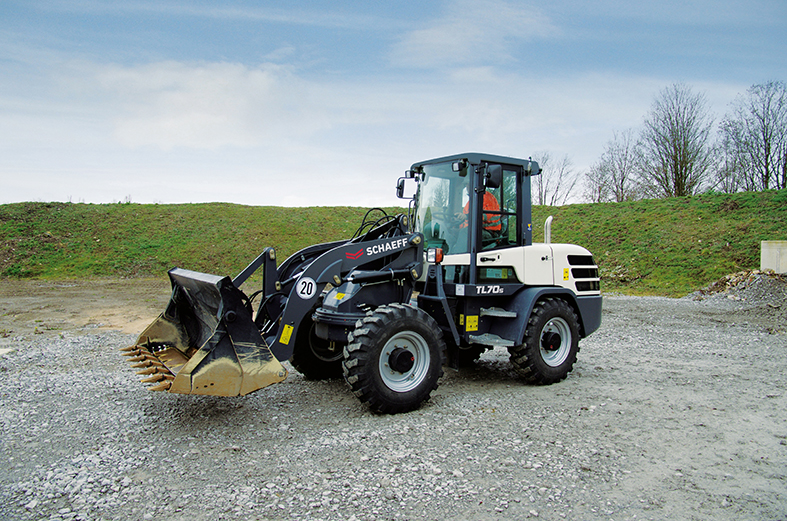

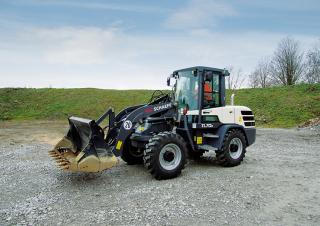

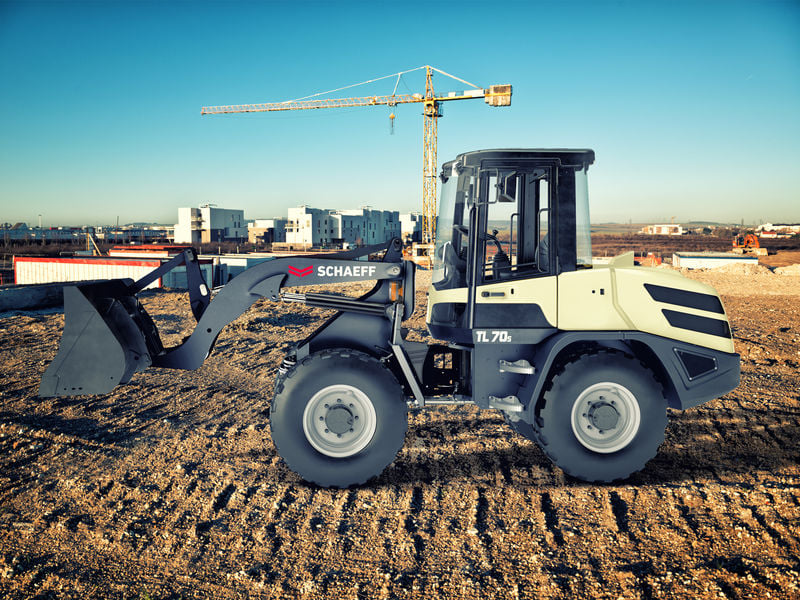

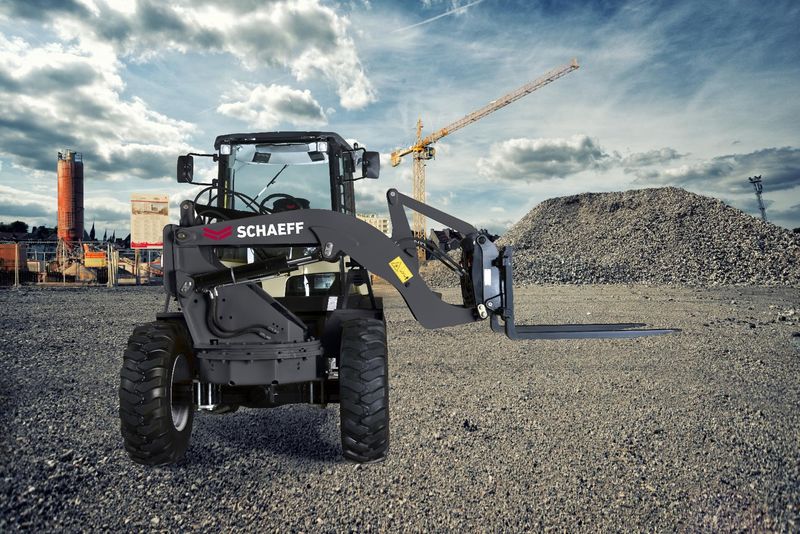

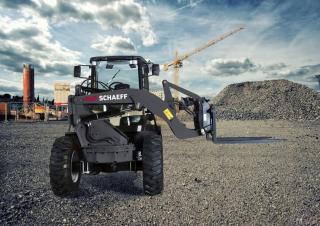

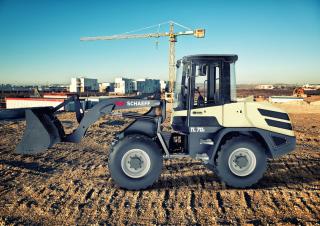

The Schaeff TL 70 S is a wheel loader manufactured since 2017. It has a weight of 5.2 tons and a transport length of 5.09 meters. …

The Schaeff TL 70 S is a wheel loader manufactured since 2017. It has a weight of 5.2 tons and a transport length of 5.09 meters. The bucket capacity is 0.7 cubic meters, with a bucket width of 1.85 meters. The maximum discharge height is 2.6 meters. It has a travel speed of 20 km/h and a transport width of 1.85 meters. The transport height is 2.66 meters. The lifting force is 45.1 kN. The turning radius outside is 4.15 meters. The bucket capacity ranges from a minimum of 0.7 cubic meters to a maximum of 1 cubic meter. It is equipped with a quick hitch mechanism and a swing loader.

TL 70 S

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TL 70 S Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.2 t

Standard tyres: 12.5-10 MPT 10

Bucket width: 1.85 m

Bucket capacity: 0.7 m³

Bucket capacity min.: 0.7 m³

Bucket capacity max.: 1 m³

Steering mode: KL

Transport length: 5.09 m

Transport width: 1.85 m

Transport height: 2.66 m

Travel speed: 20 km/h

Max. discharge height: 2.6 m

Turning radius outside: 4.15 m

Lifting force: 45.1 kN

Model series: S

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 45 kW

Revolutions at max torque: 1600 rpm

Max. torque: 240 Nm

Emission level: Tier 4f

More technical details, like: dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Schaeff TL 70 S FAQ

When was the Schaeff TL 70 S manufactured?

The Schaeff TL 70 S was first produced in 2017.

How much does the Schaeff TL 70 S wheel loader weigh?

The Schaeff TL 70 S wheel loader weighs 5.2 tons.

What are the transport dimensions of the Schaeff TL 70 S wheel loader?

The Schaeff TL 70 S has a transport length of 5.09 meters, a transport width of 1.85 meters, and a transport height of 2.66 meters.

What is the travel speed of the Schaeff TL 70 S wheel loader?

The Schaeff TL 70 S has a travel speed of 20 km/h.

What are the undercarriage specifications of the Schaeff TL 70 S wheel loader?

The Schaeff TL 70 S wheel loader is equipped with standard tyres sized 12.5-10 MPT 10.

What are the maneuverability specifications of the Schaeff TL 70 S wheel loader?

The Schaeff TL 70 S has an articulated-frame steering system and an outside turning radius of 4.15 meters.

What are the power ratings of the Schaeff TL 70 S wheel loader?

The source data does not provide any power ratings for the Schaeff TL 70 S wheel loader.

What is the maximum discharge height of the Schaeff TL 70 S?

The Schaeff TL 70 S has a maximum discharge height of 2.6 meters.

What are the bucket specifications of the Schaeff TL 70 S wheel loader?

The Schaeff TL 70 S wheel loader has a bucket capacity ranging from 0.7 to 1 cubic meter, with a bucket width of 1.85 meters.
