TL 65 Schaeff TL 65 Specifications & Technical Data (2017—2026)

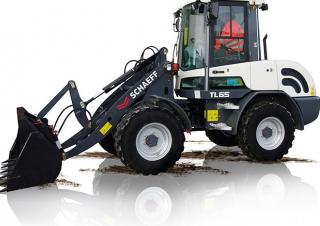

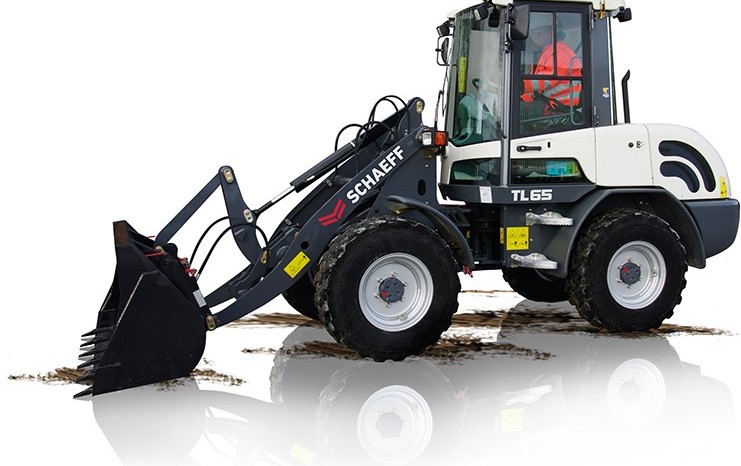

The Schaeff TL 65 is a wheel loader manufactured since 2017. It has a weight of 3.9 tons and a transport length of 4.78 meters. Th…

The Schaeff TL 65 is a wheel loader manufactured since 2017. It has a weight of 3.9 tons and a transport length of 4.78 meters. The bucket capacity is 0.65 cubic meters, with a bucket width of 1.7 meters. The maximum discharge height is 2.52 meters. It has a travel speed of 20 km/h and a transport width and height of 1.7 meters and 2.61 meters respectively. The lifting force is 33 kN and the turning radius outside is 3.87 meters. The machine is equipped with a quick hitch mechanism. The maximum bucket capacity is 1 cubic meter, while the minimum is 0.65 cubic meters.

TL 65

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TL 65 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.9 t

Standard tyres: 365/70 R 18

Bucket width: 1.7 m

Bucket capacity: 0.65 m³

Bucket capacity min.: 0.65 m³

Bucket capacity max.: 1 m³

Steering mode: KL

Transport length: 4.78 m

Transport width: 1.7 m

Transport height: 2.61 m

Travel speed: 20 km/h

Max. discharge height: 2.52 m

Turning radius outside: 3.87 m

Lifting force: 33 kN

Engine manuf.: Deutz

Engine type: D2011 L4

Engine power: 36.4 kW

Displacement: 3.1 l

Revolutions at max torque: 2300 rpm

More technical details, like: model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Schaeff TL 65 FAQ

When was the Schaeff TL 65 manufactured?

The Schaeff TL 65 was first produced in 2017.

How much does the Schaeff TL 65 wheel loader weigh?

The Schaeff TL 65 wheel loader weighs 3.9 tons.

What are the transport dimensions of the Schaeff TL 65 wheel loader?

The Schaeff TL 65 has a transport length of 4.78 meters, a transport width of 1.7 meters, and a transport height of 2.61 meters.

What is the travel speed of the Schaeff TL 65 wheel loader?

The Schaeff TL 65 has a travel speed of 20 km/h.

What are the undercarriage tyre specifications of the Schaeff TL 65 wheel loader?

The Schaeff TL 65 wheel loader is equipped with standard tyres sized 365/70 R 18.

What are the maneuverability specifications of the Schaeff TL 65 wheel loader?

The Schaeff TL 65 wheel loader has an articulated-frame steering mode and an outside turning radius of 3.87 meters.

What is the lifting force of the Schaeff TL 65 wheel loader?

The Schaeff TL 65 wheel loader has a lifting force of 33 kN.

What is the maximum discharge height of the Schaeff TL 65?

The Schaeff TL 65 has a maximum discharge height of 2.52 meters.

What are the specifications of the bucket on the Schaeff TL 65 wheel loader?

The Schaeff TL 65 wheel loader has a bucket with a capacity ranging from 0.65 to 1 cubic meter and a bucket width of 1.7 meters.
