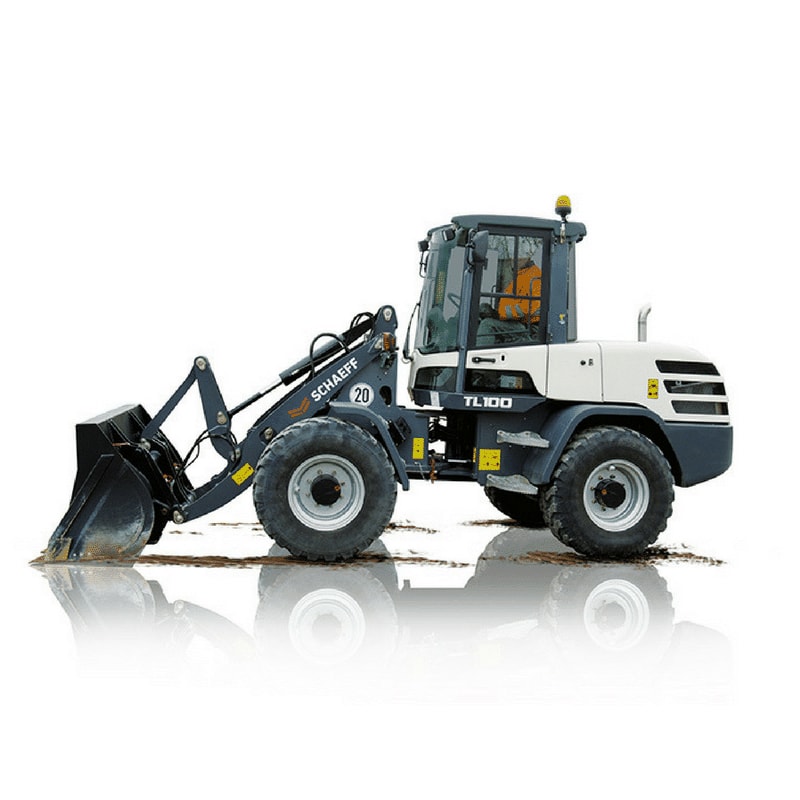

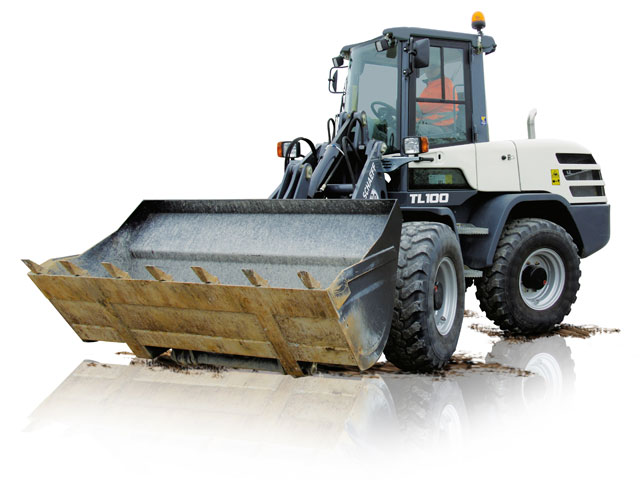

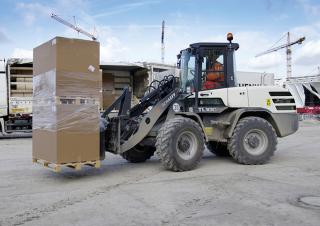

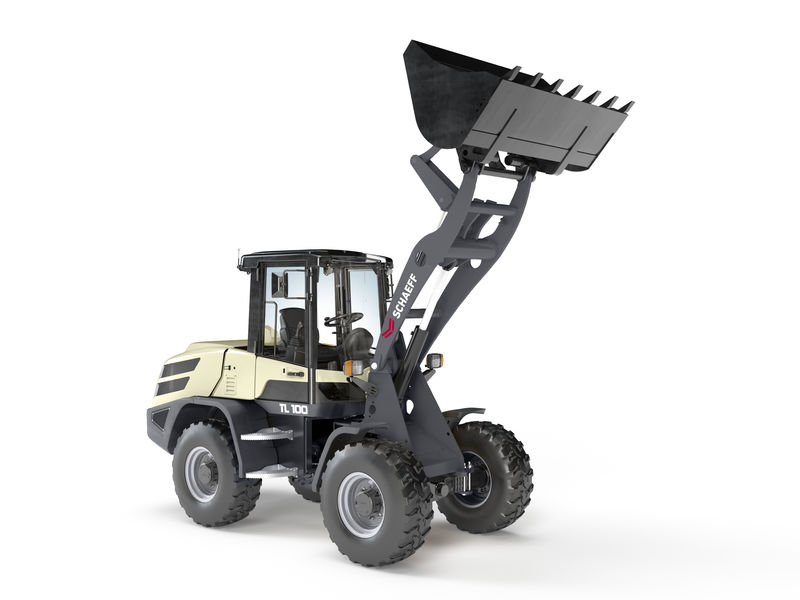

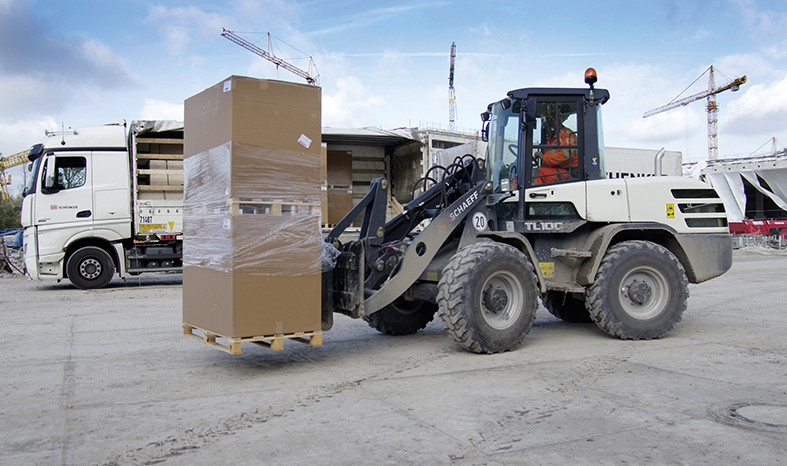

TL 100 Schaeff TL 100 Specifications & Technical Data (2017—2026)

The Schaeff TL 100 is a wheel loader manufactured since 2017. It has a weight of 5.8 tons and a transport length of 5.27 meters. T…

The Schaeff TL 100 is a wheel loader manufactured since 2017. It has a weight of 5.8 tons and a transport length of 5.27 meters. The bucket capacity is 1.55 cubic meters, with a bucket width of 1.95 meters. The maximum discharge height is 2.64 meters. It has a travel speed of 36 km/h and a transport width of 1.95 meters. The transport height is 2.77 meters. The lifting force is 61 kN. The turning radius outside is 4.45 meters. The bucket capacity ranges from a maximum of 1.55 cubic meters to a minimum of 1 cubic meter. It is equipped with a quick hitch mechanism.

TL 100

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TL 100 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.8 t

Standard tyres: 405/70 R 20

Bucket width: 1.95 m

Bucket capacity: 1.55 m³

Bucket capacity min.: 1 m³

Bucket capacity max.: 1.55 m³

Steering mode: KL

Transport length: 5.27 m

Transport width: 1.95 m

Transport height: 2.77 m

Travel speed: 36 km/h

Max. discharge height: 2.64 m

Turning radius outside: 4.45 m

Lifting force: 61 kN

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 45 kW

Revolutions at max torque: 1600 rpm

Max. torque: 240 Nm

Emission level: Tier 4f

More technical details, like: model series, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Schaeff TL 100 FAQ

When was the Schaeff TL 100 manufactured?

The Schaeff TL 100 was first produced in 2017.

How much does the Schaeff TL 100 weigh?

The Schaeff TL 100 weighs 5.8 tons.

What are the transport dimensions of the Schaeff TL 100 wheel loader?

The Schaeff TL 100 has a transport length of 5.27 meters, a transport width of 1.95 meters, and a transport height of 2.77 meters.

What is the travel speed of the Schaeff TL 100 wheel loader?

The Schaeff TL 100 has a travel speed of 36 km/h.

What are the standard tyre specifications of the Schaeff TL 100 wheel loader?

The Schaeff TL 100 wheel loader has standard tyres sized 405/70 R 20.

What are the maneuverability specifications of the Schaeff TL 100 wheel loader?

The Schaeff TL 100 wheel loader has an articulated-frame steering system and an outside turning radius of 4.45 meters.

What are the power ratings of the Schaeff TL 100 wheel loader?

The source data does not provide power ratings for the Schaeff TL 100 wheel loader.

What is the maximum discharge height of the Schaeff TL 100?

The Schaeff TL 100 has a maximum discharge height of 2.64 meters.

What are the specifications of the bucket on the Schaeff TL 100 wheel loader?

The Schaeff TL 100 wheel loader has a bucket capacity ranging from 1 to 1.55 cubic meters, with a bucket width of 1.95 meters.
