L 45.5 O&K L 45.5 Specifications & Technical Data (2000—2005)

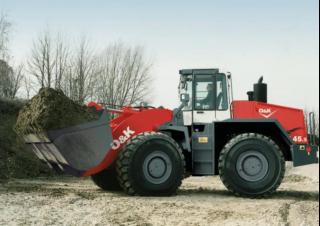

The O&K L 45.5 is a wheel loader manufactured from 2000 to 2005. It has a weight of 23 tons and a transport length of 8.096 meters…

The O&K L 45.5 is a wheel loader manufactured from 2000 to 2005. It has a weight of 23 tons and a transport length of 8.096 meters. The bucket capacity is 3.8 cubic meters with a bucket width of 3 meters. The maximum discharge height is 3.182 meters and it has a travel speed of 37.6 km/h. The transport width and height are both 3 meters, and it has a lifting force of 182 kN. The turning radius outside is 6.886 meters. The minimum bucket capacity is 3.8 cubic meters.

L 45.5

Years of manufacture: 2000—2005

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - L 45.5 O&K

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 23 t

Standard tyres: 26.5R25

Bucket width: 3 m

Bucket capacity: 3.8 m³

Bucket capacity min.: 3.8 m³

Steering mode: KL

Transport length: 8.096 m

Transport width: 3 m

Transport height: 3.521 m

Travel speed: 37.6 km/h

Max. discharge height: 3.182 m

Turning radius outside: 6.886 m

Lifting force: 182 kN

Model series: L

Engine manuf.: Cummins

Engine type: M11C250

Engine power: 177 kW

Displacement: 10.8 l

Revolutions at max torque: 2100 rpm

More technical details, like: bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

L 45.5 O&K Specification for Europe (DE)

O&K L 45.5 FAQ

When was the O&K L 45.5 manufactured?

The O&K L 45.5 was manufactured from 2000 to 2005.

How much does the O&K L 45.5 wheel loader weigh?

The O&K L 45.5 wheel loader weighs 23 tons.

What are the transport dimensions of the O&K L 45.5 wheel loader?

The O&K L 45.5 has a transport length of 8.1 meters, a transport width of 3 meters, and a transport height of 3.52 meters.

What is the travel speed of the O&K L 45.5 wheel loader?

The O&K L 45.5 wheel loader has a travel speed of 37.6 km/h.

What is the standard tyre size of the O&K L 45.5 wheel loader?

The O&K L 45.5 wheel loader has standard tyres sized 26.5R25.

What are the maneuverability specifications of the O&K L 45.5 wheel loader?

The O&K L 45.5 wheel loader has an articulated-frame steering system and an outside turning radius of 6.886 meters.

What is the lifting force of the O&K L 45.5 wheel loader?

The O&K L 45.5 wheel loader has a lifting force of 182 kN. Note that the source data does not provide power ratings for this machine.

What is the material handling capacity of the O&K L 45.5 in terms of discharge height?

The O&K L 45.5 has a maximum discharge height of 3.18 meters.

What are the specifications of the bucket on the O&K L 45.5 wheel loader?

The O&K L 45.5 wheel loader has a bucket capacity of 3.8 cubic meters, a minimum bucket capacity of 3.8 cubic meters, and a bucket width of 3 meters.
