L 10.5 O&K L 10.5 Specifications & Technical Data (2000—2005)

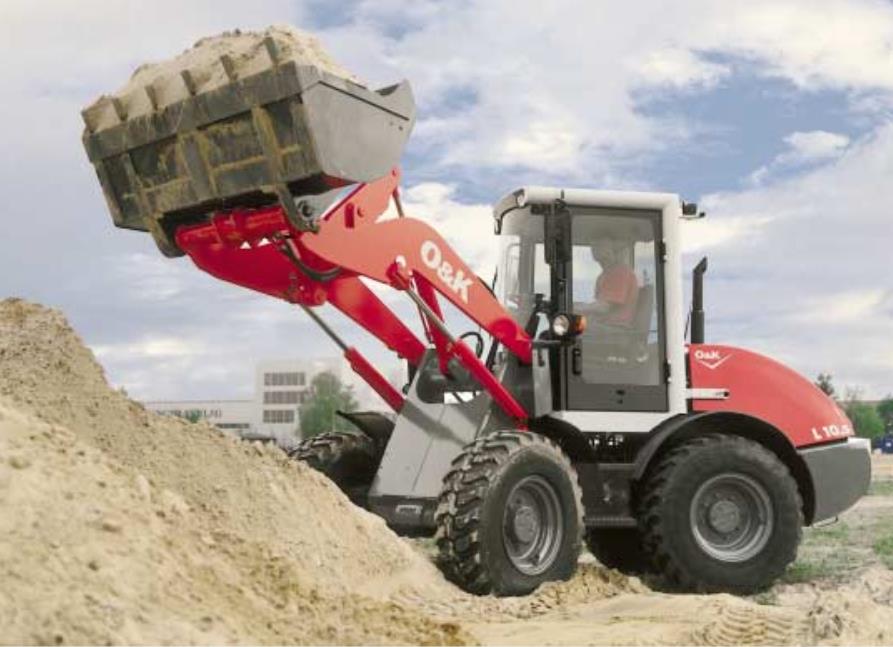

The O&K L 10.5 is a wheel loader manufactured from 2000 to 2005. It has a weight of 5.7 tons and a transport length of 5.67 meters…

The O&K L 10.5 is a wheel loader manufactured from 2000 to 2005. It has a weight of 5.7 tons and a transport length of 5.67 meters. The bucket capacity is 1.1 cubic meters, with a bucket width of 2.1 meters. The maximum discharge height is 2.63 meters, and it has a travel speed of 35 km/h. The transport width and height are both 2.1 and 2.74 meters, respectively. It has a lifting force of 58 kN.

L 10.5

Years of manufacture: 2000—2005

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - L 10.5 O&K

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.7 t

Standard tyres: 405-70R20

Bucket width: 2.1 m

Bucket capacity: 1.1 m³

Bucket capacity min.: 1.1 m³

Steering mode: KL

Transport length: 5.67 m

Transport width: 2.1 m

Transport height: 2.74 m

Travel speed: 35 km/h

Max. discharge height: 2.63 m

Lifting force: 58 kN

Model series: L

Engine manuf.: Perkins

Engine type: 1007.42

Engine power: 53 kW

Displacement: 4.23 l

Revolutions at max torque: 2200 rpm

More technical details, like: bucket capacity max., turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

L 10.5 O&K Specification for Europe (DE)

O&K L 10.5 FAQ

When was the O&K L 10.5 manufactured?

The O&K L 10.5 was manufactured from 2000 to 2005.

How much does the O&K L 10.5 wheel loader weigh?

The O&K L 10.5 wheel loader weighs 5.7 tons.

What are the transport dimensions of the O&K L 10.5 wheel loader?

The O&K L 10.5 has a transport length of 5.67 meters, a transport width of 2.1 meters, and a transport height of 2.74 meters.

What is the travel speed of the O&K L 10.5 wheel loader?

The O&K L 10.5 wheel loader has a travel speed of 35 km/h.

What are the undercarriage specifications of the O&K L 10.5 wheel loader?

The O&K L 10.5 wheel loader is equipped with standard tyres sized 405-70R20.

What is the steering mode of the O&K L 10.5 wheel loader?

The O&K L 10.5 wheel loader has articulated-frame steering.

What is the lifting force of the O&K L 10.5 wheel loader?

The O&K L 10.5 wheel loader has a lifting force of 58 kN.

What is the maximum discharge height of the O&K L 10.5 wheel loader?

The O&K L 10.5 wheel loader has a maximum discharge height of 2.63 meters.

What are the bucket specifications of the O&K L 10.5 wheel loader?

The O&K L 10.5 wheel loader has a bucket capacity of 1.1 cubic meters, a minimum bucket capacity of 1.1 cubic meters, and a bucket width of 2.1 meters.
