W190B New Holland W190B Specifications & Technical Data (2005—2012)

Model rating: 8,33 / 10

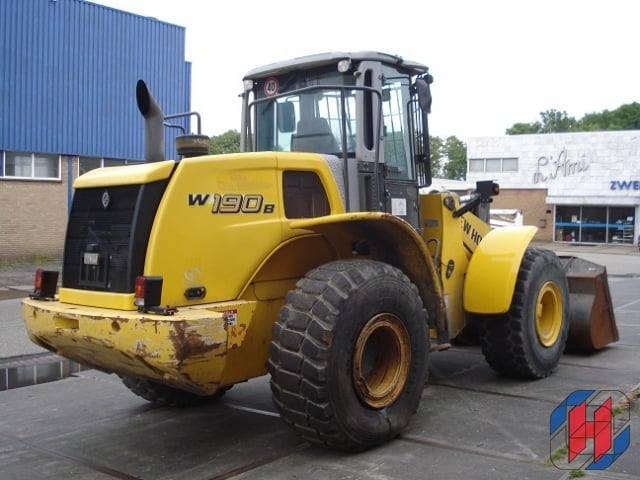

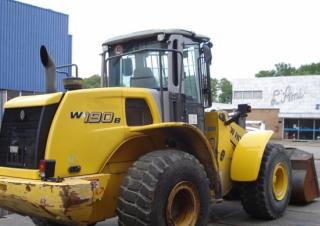

The New Holland W190B is a wheel loader manufactured from 2005 to 2012. It has a weight of 17.9 tons and a transport length of 8.2…

The New Holland W190B is a wheel loader manufactured from 2005 to 2012. It has a weight of 17.9 tons and a transport length of 8.22 meters. The bucket width is 3 meters, and it has a maximum discharge height of 2.81 meters. The travel speed of this machine is 40 km/h. The transport width is 2.76 meters, and the transport height is 3.43 meters. It has a turning radius outside of 6.7 meters. The bucket capacity ranges from a minimum of 3.2 cubic meters to a maximum of 7 cubic meters. Additionally, it is equipped with air conditioning.

W190B

Years of manufacture: 2005—2012

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Reviews
Transport
News

Technical specs - W190B New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 17.9 t

Standard tyres: 23.5-25 GP 2B

Bucket width: 3 m

Bucket capacity min.: 3.2 m³

Bucket capacity max.: 7 m³

Steering mode: KL

Transport length: 8.22 m

Transport width: 2.76 m

Transport height: 3.43 m

Travel speed: 40 km/h

Max. discharge height: 2.81 m

Turning radius outside: 6.7 m

Model series: W

Engine manuf.: CNH

Engine type: 667TA-EBD

Engine power: 169 kW

Displacement: 6.7 l

Revolutions at max torque: 2000 rpm

More technical details, like: bucket capacity, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

New Holland W190B FAQ

When was the New Holland W190B manufactured?

The New Holland W190B was manufactured from 2005 to 2012.

How much does the New Holland W190B wheel loader weigh?

The New Holland W190B wheel loader weighs 17.9 tons.

What are the transport dimensions of the New Holland W190B wheel loader?

The New Holland W190B has a transport length of 8.22 meters, a transport width of 2.76 meters, and a transport height of 3.43 meters.

What is the travel speed of the New Holland W190B wheel loader?

The New Holland W190B has a travel speed of 40 km/h.

What are the undercarriage specifications of the New Holland W190B wheel loader?

The New Holland W190B wheel loader is equipped with standard tyres sized 23.5-25 GP 2B.

What are the maneuverability specifications of the New Holland W190B wheel loader?

The New Holland W190B wheel loader has an outside turning radius of 6.7 meters and uses articulated-frame steering.

What is the maximum discharge height of the New Holland W190B?

The New Holland W190B has a maximum discharge height of 2.81 meters.

What are the bucket specifications of the New Holland W190B wheel loader?

The New Holland W190B wheel loader has a bucket width of 3 meters, with a capacity ranging from 3.2 to 7 cubic meters.

How much is a New Holland W190B Wheel loader (2005u20132012) worth?

The residual value of the New Holland W190B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
