W 270 Evolution New Holland W 270 Evolution Specifications & Technical Data (2005—2007)

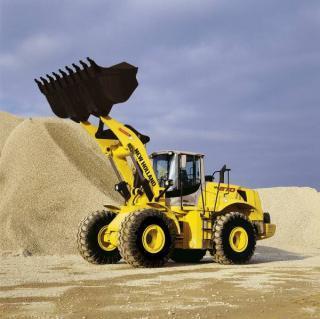

The New Holland W 270 Evolution is a wheel loader manufactured by New Holland from 2005 to 2007. It has a weight of 23.5 tons and …

The New Holland W 270 Evolution is a wheel loader manufactured by New Holland from 2005 to 2007. It has a weight of 23.5 tons and a transport length of 8.84 meters. The bucket capacity is 4 cubic meters, with a maximum capacity of 4.6 cubic meters and a minimum capacity of 4 cubic meters. The transport width is 2.96 meters and the transport height is 2.59 meters. This construction machine is equipped with air conditioning.

W 270 Evolution

Years of manufacture: 2005—2007

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - W 270 Evolution New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 23.5 t

Standard tyres: 26.5 R 25

Bucket capacity: 4 m³

Bucket capacity min.: 4 m³

Bucket capacity max.: 4.6 m³

Steering mode: KL

Transport length: 8.84 m

Transport width: 2.96 m

Transport height: 2.59 m

Model series: W

Engine manuf.: Cummins

Engine type: QSM11

Engine power: 202 kW

More technical details, like: bucket width, travel speed, max. discharge height, turning radius outside, lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

W 270 Evolution New Holland Specification for Europe (DE)

New Holland W 270 Evolution FAQ

When was the New Holland W 270 Evolution manufactured?

The New Holland W 270 Evolution was manufactured from 2005 to 2007.

How much does the New Holland W 270 Evolution weigh?

The New Holland W 270 Evolution weighs 23.5 tons.

What are the transport dimensions of the New Holland W 270 Evolution wheel loader?

The New Holland W 270 Evolution has a transport length of 8.84 meters, a transport width of 2.96 meters, and a transport height of 2.59 meters.

What are the undercarriage specifications of the New Holland W 270 Evolution wheel loader?

The New Holland W 270 Evolution wheel loader is equipped with standard tyres sized 26.5 R 25.

What is the steering mode of the New Holland W 270 Evolution?

The New Holland W 270 Evolution has articulated-frame steering.

What are the bucket capacity specifications of the New Holland W 270 Evolution wheel loader?

The New Holland W 270 Evolution wheel loader has a bucket capacity of 4 cubic meters, with a minimum capacity of 4 cubic meters and a maximum capacity of 4.6 cubic meters.

How much is a New Holland W 270 Evolution Wheel loader (2005u20132007) worth?

The residual value of the New Holland W 270 Evolution depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
