W 230 Evolution New Holland W 230 Evolution Specifications & Technical Data (2005—2007)

Model rating: 2,00 / 10

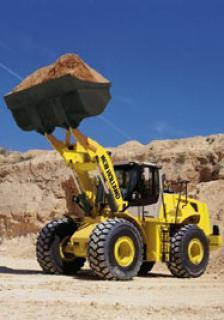

The New Holland W 230 Evolution is a wheel loader manufactured by New Holland from 2005 to 2007. It has a weight of 20.8 tons and …

The New Holland W 230 Evolution is a wheel loader manufactured by New Holland from 2005 to 2007. It has a weight of 20.8 tons and a transport length of 8.5 meters. The bucket capacity is 3.6 cubic meters, with a maximum capacity of 4 cubic meters and a minimum capacity of 3.6 cubic meters. The transport width is 2.9 meters and the transport height is 3.5 meters. This construction machine is equipped with air conditioning.

W 230 Evolution

Years of manufacture: 2005—2007

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - W 230 Evolution New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 20.8 t

Standard tyres: 750/65 R 25

Bucket capacity: 3.6 m³

Bucket capacity min.: 3.6 m³

Bucket capacity max.: 4 m³

Steering mode: KL

Transport length: 8.5 m

Transport width: 2.9 m

Transport height: 3.5 m

Model series: W

Engine manuf.: Cummins

Engine type: 6CTAA

Engine power: 168 kW

Displacement: 8.3 l

Revolutions at max torque: 2200 rpm

More technical details, like: bucket width, travel speed, max. discharge height, turning radius outside, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

W 230 Evolution New Holland Specification for Europe (DE)

New Holland W 230 Evolution FAQ

When was the New Holland W 230 Evolution manufactured?

The New Holland W 230 Evolution was manufactured from 2005 to 2007.

How much does the New Holland W 230 Evolution weigh?

The New Holland W 230 Evolution weighs 20.8 tons.

What are the transport dimensions of the New Holland W 230 Evolution?

The New Holland W 230 Evolution has a transport length of 8.5 meters, a transport width of 2.9 meters, and a transport height of 3.5 meters.

What are the undercarriage specifications of the New Holland W 230 Evolution?

The New Holland W 230 Evolution is equipped with standard tyres sized 750/65 R 25.

What is the steering mode of the New Holland W 230 Evolution?

The New Holland W 230 Evolution has articulated-frame steering.

What are the bucket capacity specifications of the New Holland W 230 Evolution wheel loader?

The New Holland W 230 Evolution has a bucket capacity ranging from 3.6 mu00b3 to a maximum of 4 mu00b3, with a standard bucket capacity of 3.6 mu00b3.
