L190 Michigan L190 Specifications & Technical Data (1988—1991)

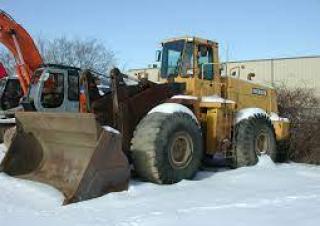

The Michigan L190 is a wheel loader manufactured from 1988 to 1991. It has a weight of 64 tons and a transport length of 8 meters.…

The Michigan L190 is a wheel loader manufactured from 1988 to 1991. It has a weight of 64 tons and a transport length of 8 meters. The bucket width is 3 meters, and it has a maximum discharge height of 5 meters. The travel speed of this machine is 34 km/h. The transport width and height are both 3 meters. The bucket capacity ranges from a minimum of 3 cubic meters to a maximum of 6 cubic meters.

L190

Years of manufacture: 1988—1991

Data sheet
Spare parts
Transport
News

Technical specs - L190 Michigan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 64 t

Standard tyres: 26.5-25

Bucket width: 3.302 m

Bucket capacity min.: 3.8 m³

Bucket capacity max.: 6.9 m³

Transport length: 8.23 m

Transport width: 3.124 m

Transport height: 3.759 m

Travel speed: 34.4 km/h

Max. discharge height: 5.004 m

Engine manuf.: Cummins

Engine type: NTA 855C335

Engine power: 240 kW

Displacement: 14.01 l

Revolutions at max torque: 1400 rpm

Max. torque: 1364 Nm

No. of cylinders: 6

Cylinder bore x stroke: 140 x 152 mm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Michigan L190 FAQ

When was the Michigan L190 manufactured?

The Michigan L190 was manufactured from 1988 to 1991.

How much does the Michigan L190 wheel loader weigh?

The Michigan L190 wheel loader weighs 64 tons.

What are the transport dimensions of the Michigan L190 wheel loader?

The Michigan L190 has a transport length of 8.23 meters, a transport width of 3.12 meters, and a transport height of 3.76 meters.

What is the travel speed of the Michigan L190 wheel loader?

The Michigan L190 wheel loader has a travel speed of 34.4 km/h.

What is the standard tyre size of the Michigan L190 wheel loader?

The Michigan L190 wheel loader has standard tyres sized 26.5-25.

What is the maximum discharge height of the Michigan L190?

The Michigan L190 has a maximum discharge height of 5 meters.

What are the bucket specifications of the Michigan L190 wheel loader?

The Michigan L190 wheel loader has a bucket with a maximum capacity of 6.9 cubic meters, a minimum capacity of 3.8 cubic meters, and a width of 3.3 meters.

How much is a Michigan L190 Wheel loader (1988u20131991) worth?

The residual value of the Michigan L190 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
