AX850 Mecalac AX850 Specifications & Technical Data (2015—2021)

The Mecalac AX850 is a wheel loader manufactured by Mecalac from 2015 to 2021. It has a weight of 5.05 tons and a transport length…

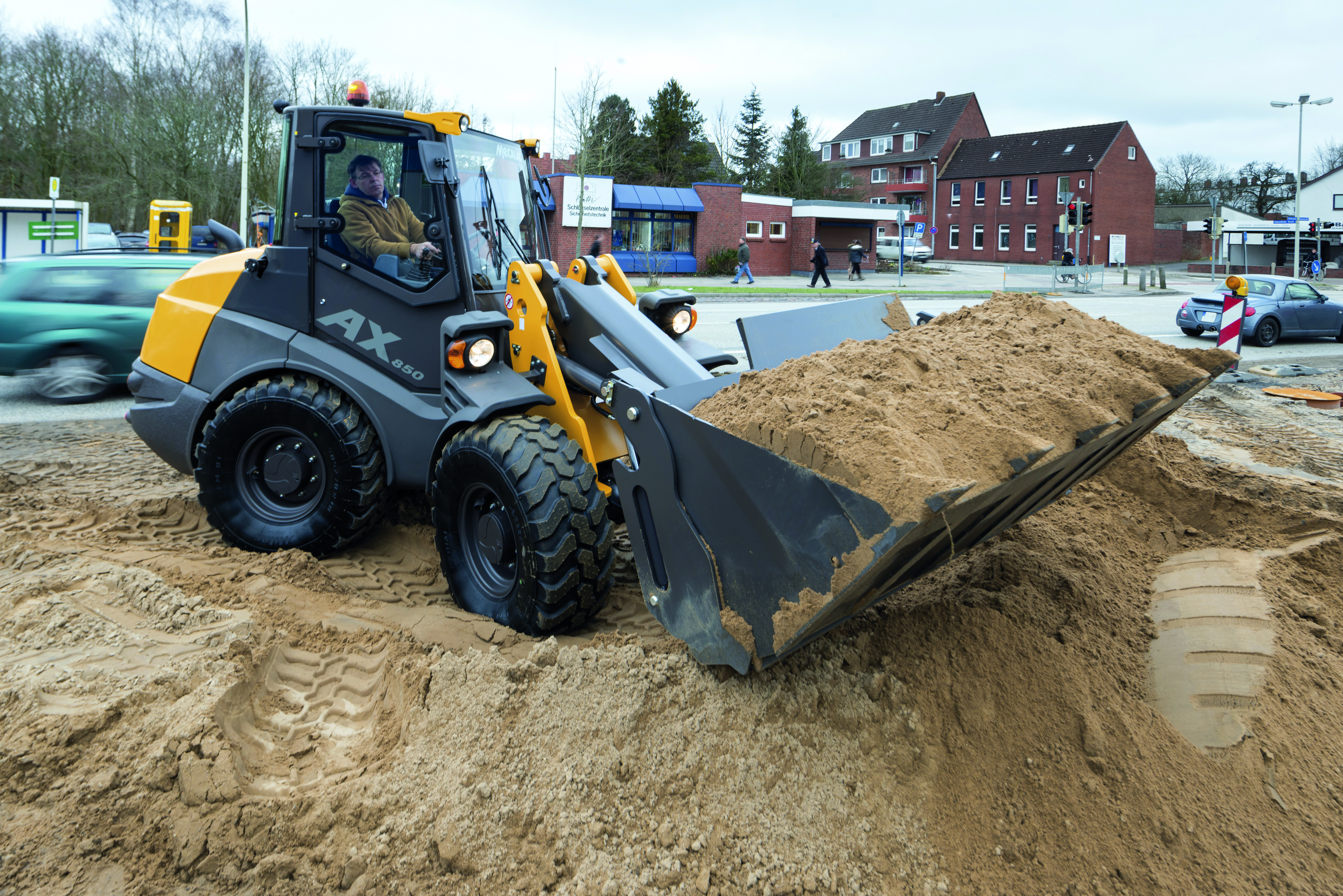

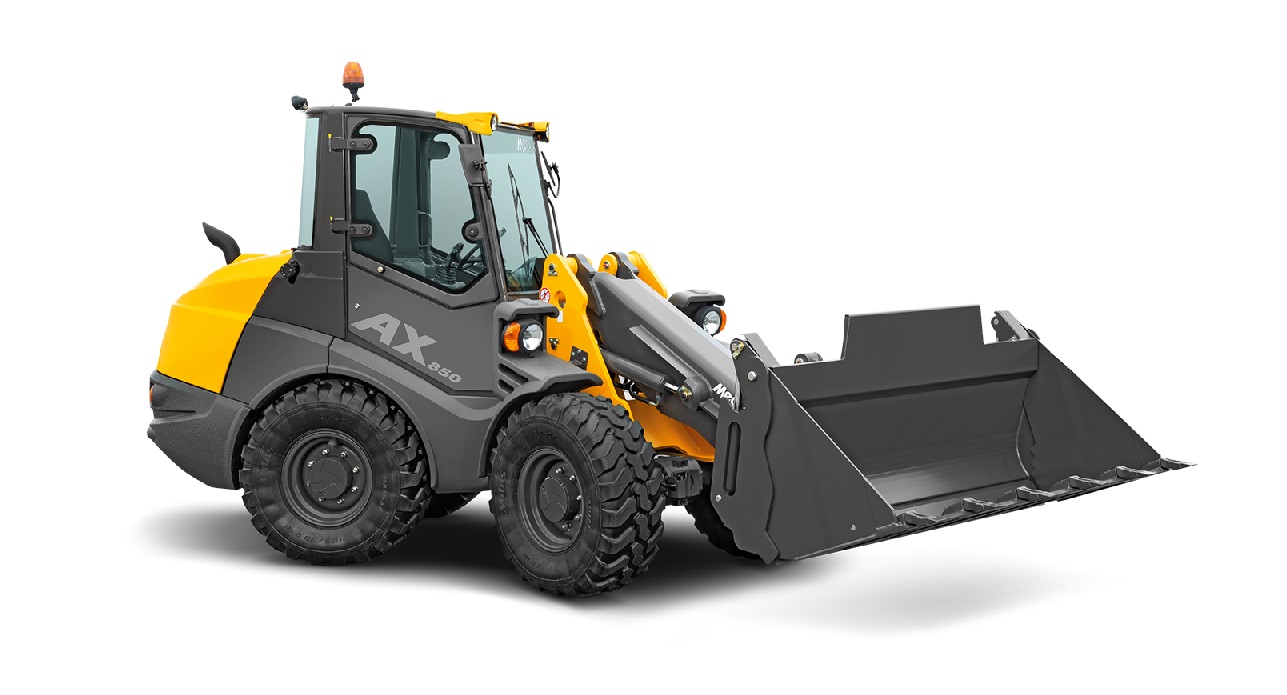

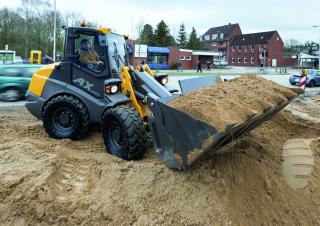

The Mecalac AX850 is a wheel loader manufactured by Mecalac from 2015 to 2021. It has a weight of 5.05 tons and a transport length of 5.285 meters. The bucket capacity is 0.85 cubic meters, with a maximum discharge height of 2.78 meters. The travel speed of the machine is 30 km/h. It has a transport width of 1.85 meters and a transport height of 2.47 meters. The lifting force of the wheel loader is 43 kN. The bucket capacity ranges from a minimum of 0.85 cubic meters to a maximum of 1.5 cubic meters. The special equipment included is a quick hitch hydr.

AX850

Years of manufacture: 2015—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AX850 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.05 t

Standard tyres: 12.5-18

Bucket capacity: 0.85 m³

Bucket capacity min.: 0.85 m³

Bucket capacity max.: 1.5 m³

Steering mode: KL

Transport length: 5.285 m

Transport width: 1.85 m

Transport height: 2.47 m

Travel speed: 30 km/h

Max. discharge height: 2.78 m

Lifting force: 43 kN

Model series: AX

Engine manuf.: Deutz

Engine type: TD2.9 L4

Engine power: 50 kW

Displacement: 2.9 l

Revolutions at max torque: 2300 rpm

Max. torque: 234/1800 Nm

No. of cylinders: 4

Cylinder bore x stroke: 92x110 mm

Emission level: IV

More technical details, like: bucket width, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac AX850 FAQ

When was the Mecalac AX850 manufactured?

The Mecalac AX850 was manufactured from 2015 to 2021.

How much does the Mecalac AX850 wheel loader weigh?

The Mecalac AX850 wheel loader weighs 5.05 tons.

What are the transport dimensions of the Mecalac AX850 wheel loader?

The Mecalac AX850 has a transport length of 5.29 meters, a transport width of 1.85 meters, and a transport height of 2.47 meters.

What is the travel speed of the Mecalac AX850 wheel loader?

The Mecalac AX850 has a travel speed of 30 km/h.

What is the standard tyre size of the Mecalac AX850 wheel loader?

The Mecalac AX850 wheel loader has standard tyres sized 12.5-18.

What is the steering mode of the Mecalac AX850 wheel loader?

The Mecalac AX850 wheel loader uses articulated-frame steering.

What is the lifting force of the Mecalac AX850 wheel loader?

The Mecalac AX850 wheel loader has a lifting force of 43 kN.

What is the maximum discharge height of the Mecalac AX850?

The Mecalac AX850 has a maximum discharge height of 2.78 meters.

What are the bucket capacity specifications of the Mecalac AX850 wheel loader?

The Mecalac AX850 wheel loader has a bucket capacity ranging from a minimum of 0.85 cubic meters to a maximum of 1.5 cubic meters, with a standard bucket capacity of 0.85 cubic meters.
