AX700 Mecalac AX700 Specifications & Technical Data (2015—2021)

The Mecalac AX700 is a wheel loader manufactured from 2015 to 2021. It has a weight of 4.71 tons and a transport length of 5.285 m…

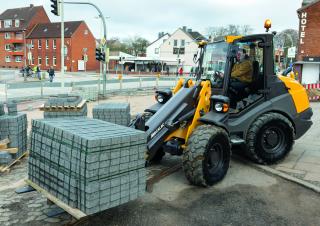

The Mecalac AX700 is a wheel loader manufactured from 2015 to 2021. It has a weight of 4.71 tons and a transport length of 5.285 meters. The bucket capacity ranges from 0.7 to 1.2 cubic meters, with a maximum discharge height of 2.78 meters. It has a travel speed of 20 km/h and a transport width of 1.6 meters. The transport height is 2.47 meters, and it has a lifting force of 35 kN. Special equipment includes a quick hitch hydraulic mechanism.

AX700

Years of manufacture: 2015—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AX700 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.71 t

Standard tyres: 12.5-18

Bucket capacity: 0.7 m³

Bucket capacity min.: 0.7 m³

Bucket capacity max.: 1.2 m³

Steering mode: KL

Transport length: 5.285 m

Transport width: 1.6 m

Transport height: 2.47 m

Travel speed: 20 km/h

Max. discharge height: 2.78 m

Lifting force: 35 kN

Model series: AX

Engine manuf.: Deutz

Engine type: TD2.9 L4

Engine power: 50 kW

Displacement: 2.9 l

Revolutions at max torque: 2300 rpm

Max. torque: 234/1800 Nm

No. of cylinders: 4

Cylinder bore x stroke: 92x110 mm

Emission level: IV

More technical details, like: bucket width, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac AX700 FAQ

When was the Mecalac AX700 manufactured?

The Mecalac AX700 was manufactured from 2015 to 2021.

How much does the Mecalac AX700 wheel loader weigh?

The Mecalac AX700 wheel loader weighs 4.71 tons.

What are the transport dimensions of the Mecalac AX700 wheel loader?

The Mecalac AX700 has a transport length of 5.29 meters, a transport width of 1.6 meters, and a transport height of 2.47 meters.

What is the travel speed of the Mecalac AX700 wheel loader?

The Mecalac AX700 has a travel speed of 20 km/h.

What is the standard tyre size of the Mecalac AX700 wheel loader?

The Mecalac AX700 wheel loader has standard tyres sized 12.5-18.

What is the steering mode of the Mecalac AX700 wheel loader?

The Mecalac AX700 wheel loader has articulated-frame steering.

What is the lifting force of the Mecalac AX700 wheel loader?

The Mecalac AX700 wheel loader has a lifting force of 35 kN.

What is the maximum discharge height of the Mecalac AX700?

The Mecalac AX700 has a maximum discharge height of 2.78 meters.

What are the bucket capacity specifications of the Mecalac AX700 wheel loader?

The Mecalac AX700 wheel loader has a bucket capacity of 0.7 mu00b3, with a minimum capacity of 0.7 mu00b3 and a maximum capacity of 1.2 mu00b3.
