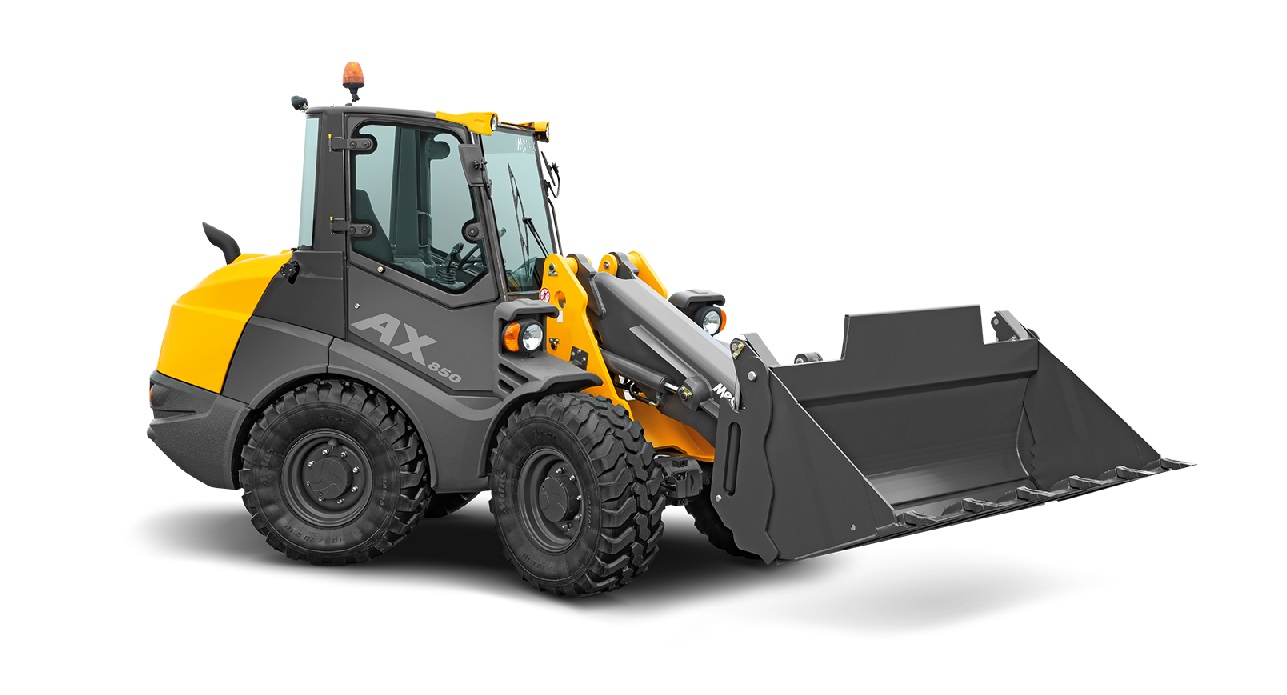

AX 850 Mecalac AX 850 Specifications & Technical Data (2012—2014)

The Mecalac AX 850 is a wheel loader manufactured from 2012 to 2014. It has a weight of 5.2 tons and a transport length of 5.3 met…

The Mecalac AX 850 is a wheel loader manufactured from 2012 to 2014. It has a weight of 5.2 tons and a transport length of 5.3 meters. The bucket capacity is 0.85 cubic meters, with a maximum discharge height of 2.86 meters. It has a travel speed of 20 km/h and a transport width of 1.85 meters. The transport height is 2.47 meters, and it has a lifting force of 43 kN. The special equipment includes a quick hitch hydraulic mechanism.

AX 850

Years of manufacture: 2012—2014

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AX 850 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.2 t

Standard tyres: 12.5-18

Bucket capacity: 0.85 m³

Bucket capacity min.: 0.85 m³

Steering mode: KL

Transport length: 5.3 m

Transport width: 1.85 m

Transport height: 2.47 m

Travel speed: 20 km/h

Max. discharge height: 2.86 m

Lifting force: 43 kN

Model series: AX

Engine manuf.: John Deere

Engine type: 4024HF295

Engine power: 46 kW

Revolutions at max torque: 2000 rpm

More technical details, like: bucket width, bucket capacity max., turning radius outside, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac AX 850 FAQ

When was the Mecalac AX 850 manufactured?

The Mecalac AX 850 was manufactured from 2012 to 2014.

How much does the Mecalac AX 850 wheel loader weigh?

The Mecalac AX 850 wheel loader weighs 5.2 tons.

What are the transport dimensions of the Mecalac AX 850 wheel loader?

The Mecalac AX 850 has a transport length of 5.3 meters, a transport width of 1.85 meters, and a transport height of 2.47 meters.

What is the travel speed of the Mecalac AX 850 wheel loader?

The Mecalac AX 850 has a travel speed of 20 km/h.

What is the standard tyre size of the Mecalac AX 850?

The Mecalac AX 850 is equipped with standard tyres sized 12.5-18.

What is the steering mode of the Mecalac AX 850 wheel loader?

The Mecalac AX 850 wheel loader has articulated-frame steering.

What power rating information is available for the Mecalac AX 850 wheel loader?

There is no power rating information available for the Mecalac AX 850 in the provided data.

What is the maximum discharge height of the Mecalac AX 850?

The Mecalac AX 850 has a maximum discharge height of 2.86 meters.

What is the bucket capacity of the Mecalac AX 850 wheel loader?

The Mecalac AX 850 wheel loader has a bucket capacity of 0.85 cubic meters.

How much is a Mecalac AX 850 Wheel loader (2012u20132014) worth?

The residual value of the Mecalac AX 850 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
