AX 700 Mecalac AX 700 Specifications & Technical Data (2012—2014)

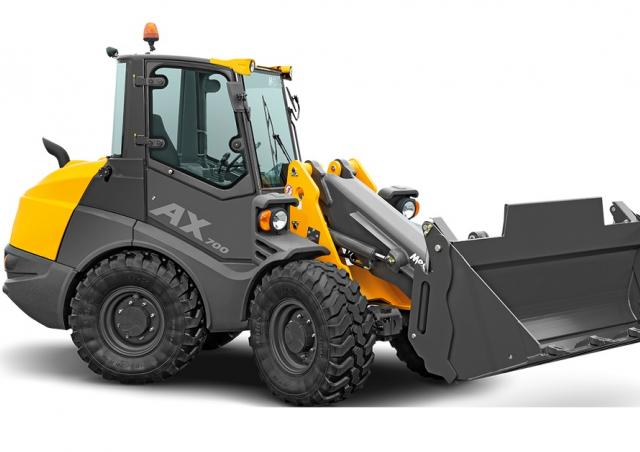

The Mecalac AX 700 is a wheel loader manufactured by Mecalac from 2012 to 2014. It has a weight of 5 tons and a transport length o…

The Mecalac AX 700 is a wheel loader manufactured by Mecalac from 2012 to 2014. It has a weight of 5 tons and a transport length of 5.25 meters. The bucket capacity is 0.7 cubic meters, and it has a maximum discharge height of 2.86 meters. The travel speed of the machine is 20 km/h. It has a transport width of 1.6 meters and a transport height of 2.47 meters. The lifting force of the wheel loader is 41 kN. It is equipped with a quick hitch hydr. for special operations.

AX 700

Years of manufacture: 2012—2014

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AX 700 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5 t

Standard tyres: 12.5-18

Bucket capacity: 0.7 m³

Bucket capacity min.: 0.7 m³

Steering mode: KL

Transport length: 5.25 m

Transport width: 1.6 m

Transport height: 2.47 m

Travel speed: 20 km/h

Max. discharge height: 2.86 m

Lifting force: 41 kN

Model series: AX

Engine manuf.: John Deere

Engine type: 4024HF295

Engine power: 46 kW

Revolutions at max torque: 2000 rpm

More technical details, like: bucket width, bucket capacity max., turning radius outside, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac AX 700 FAQ

When was the Mecalac AX 700 manufactured?

The Mecalac AX 700 was manufactured from 2012 to 2014.

How much does the Mecalac AX 700 weigh?

The Mecalac AX 700 weighs 5 tons.

What are the transport dimensions of the Mecalac AX 700 wheel loader?

The Mecalac AX 700 has a transport length of 5.25 meters, a transport width of 1.6 meters, and a transport height of 2.47 meters.

What is the travel speed of the Mecalac AX 700 wheel loader?

The Mecalac AX 700 has a travel speed of 20 km/h.

What is the standard tyre size of the Mecalac AX 700?

The Mecalac AX 700 has standard tyres sized 12.5-18.

What is the steering mode of the Mecalac AX 700 wheel loader?

The Mecalac AX 700 has articulated-frame steering.

What are the power ratings of the Mecalac AX 700 wheel loader?

The power ratings of the Mecalac AX 700 wheel loader are not provided in the available data.

What is the maximum discharge height of the Mecalac AX 700 wheel loader?

The Mecalac AX 700 has a maximum discharge height of 2.86 meters.

What is the bucket capacity of the Mecalac AX 700 wheel loader?

The Mecalac AX 700 wheel loader has a bucket capacity of 0.7 cubic meters.
