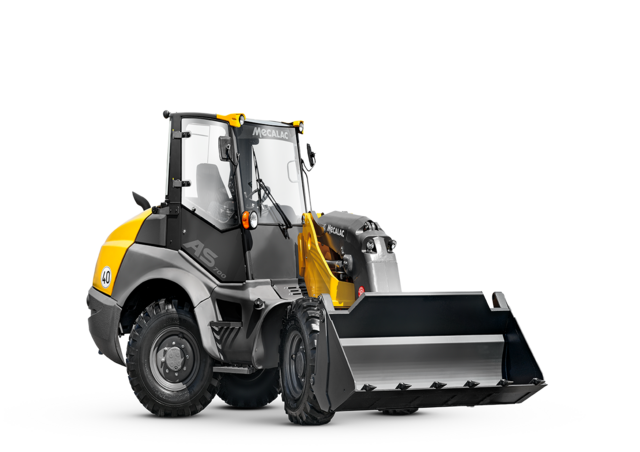

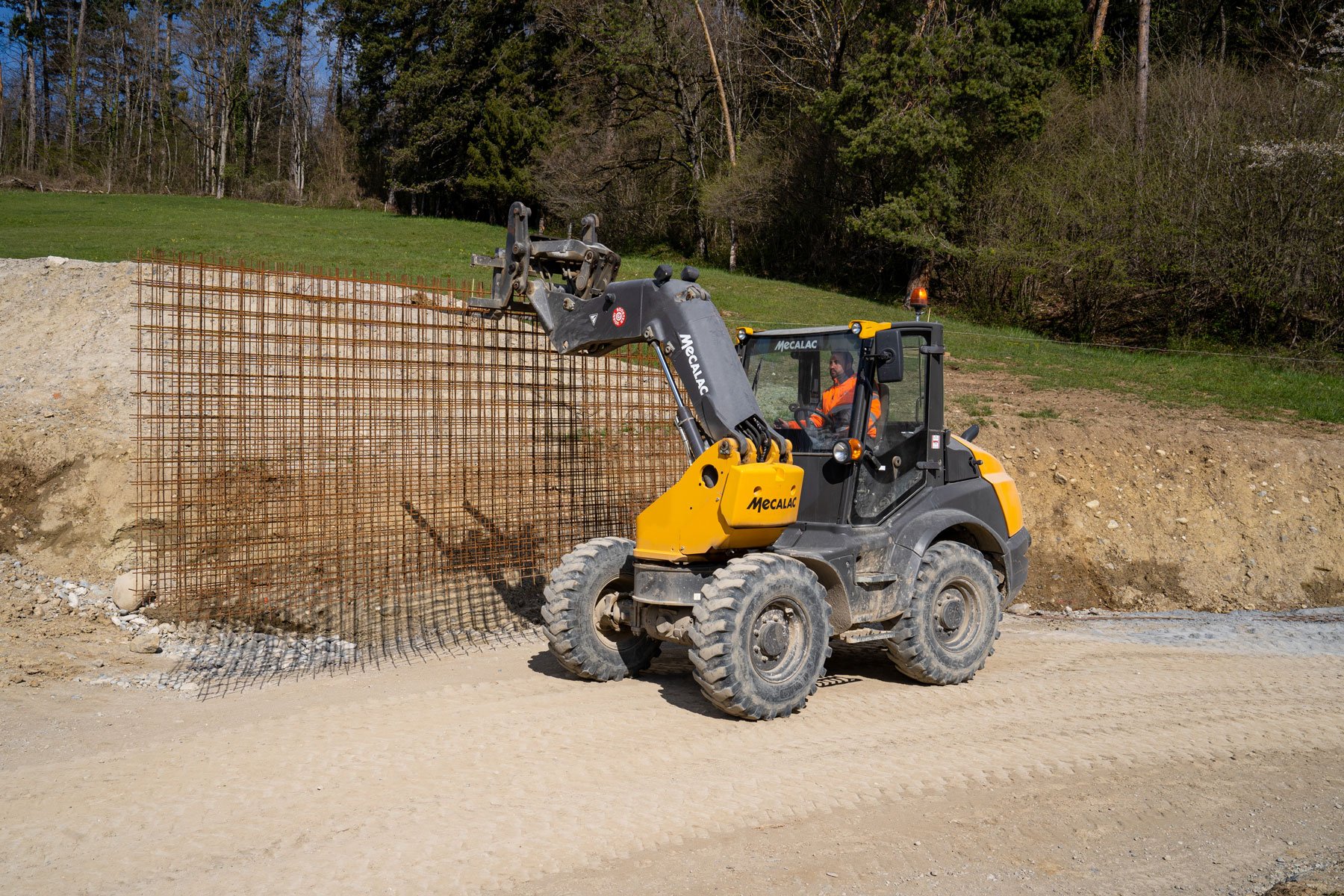

    Mecalac AS700 Specifications & Technical Data (2021-2022)

    Rate this machine now!

    Weight: 5.98t – Standard tyres: 14.5-20 – Bucket capacity: 0.7m³ – Bucket capacity min.: 0.7m³ – Bucket capacity max.: 1.2m³ – Steering mode: AL

    Technical specs - AS700 Mecalac

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 5.98 t
    • Standard tyres 14.5-20
    • Bucket capacity 0.7 m³
    • Bucket capacity min. 0.7 m³
    • Bucket capacity max. 1.2 m³
    • Steering mode AL
    • Transport length 5.55 m
    • Transport width 1.95 m
    • Transport height 2.76 m
    • Travel speed 30 km/h
    • Max. discharge height 2.72 m
    • Turning radius outside 4.27 m
    • Lifting force 60 kN
    • Engine manuf. Deutz
    • Engine type TCD2.9 L4
    • Engine power 55.4 kW
    • Displacement 2.9 l
    • Revolutions at max torque 2300 rpm
    • Max. torque 300/1600 Nm
    • No. of cylinders 4
    • Emission level V

    More technical details, like: bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

    Basic model with ROPS cabin, std. shovel and teeth

    Special equipment

    • Diesel particulate filter
    • Swing loader
    • telescopic
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.
