AS50 Mecalac AS50 Specifications & Technical Data (2012—2020)

The Mecalac AS50 is a wheel loader manufactured by Mecalac from 2012 to 2020. It has a weight of 4.1 tons and a transport length o…

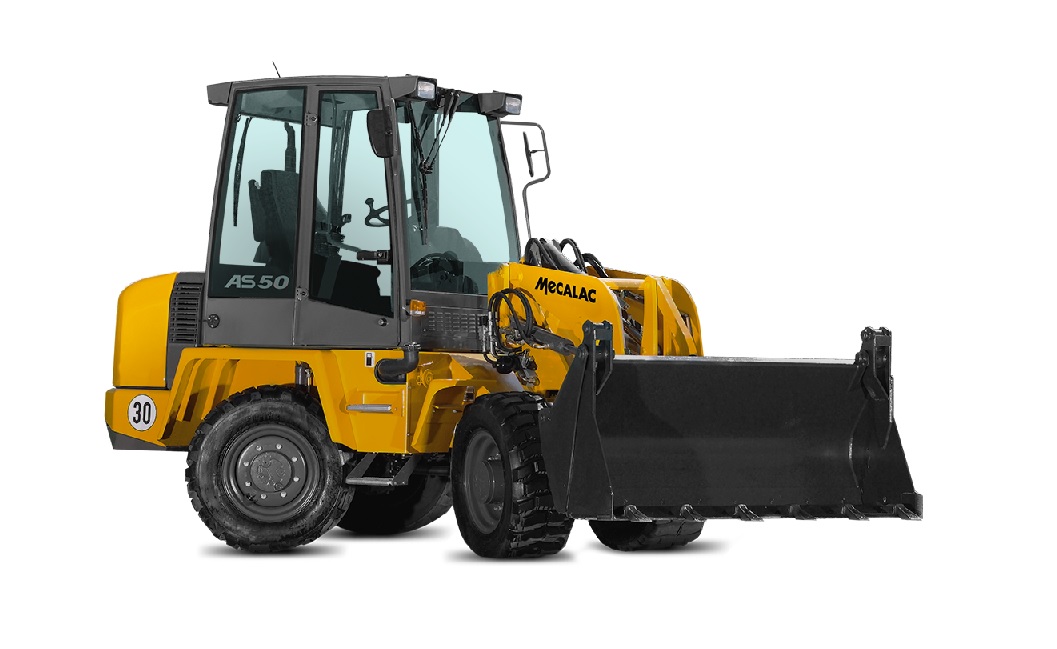

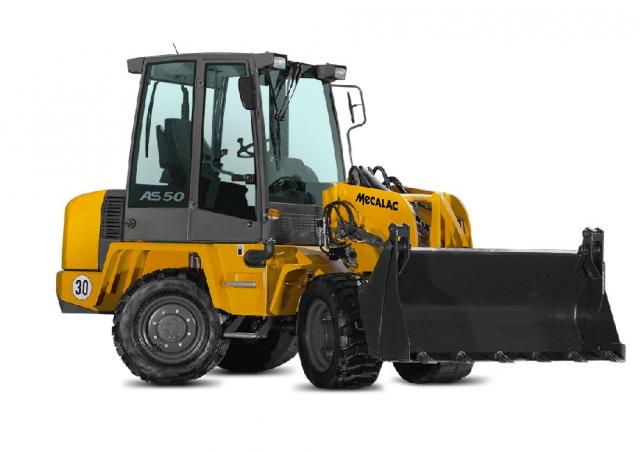

The Mecalac AS50 is a wheel loader manufactured by Mecalac from 2012 to 2020. It has a weight of 4.1 tons and a transport length of 4.865 meters. The bucket capacity ranges from 0.5 to 0.8 cubic meters, with a maximum discharge height of 2.5 meters. The travel speed of this machine is 30 km/h, and it has a transport width of 1.62 meters and a transport height of 2.55 meters. The lifting force of the AS50 is 24 kN. It is equipped with special features such as a quick hitch hydr. and a swing loader.

AS50

Years of manufacture: 2012—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AS50 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.1 t

Standard tyres: 12.5-18

Bucket capacity: 0.5 m³

Bucket capacity min.: 0.5 m³

Bucket capacity max.: 0.8 m³

Steering mode: AL

Transport length: 4.865 m

Transport width: 1.62 m

Transport height: 2.55 m

Travel speed: 30 km/h

Max. discharge height: 2.5 m

Lifting force: 24 kN

Model series: AS

Engine manuf.: Deutz

Engine type: D2011 L03i

Engine power: 29 kW

Revolutions at max torque: 1700 rpm

More technical details, like: bucket width, turning radius outside, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac AS50 FAQ

When was the Mecalac AS50 manufactured?

The Mecalac AS50 was manufactured from 2012 to 2020.

How much does the Mecalac AS50 wheel loader weigh?

The Mecalac AS50 wheel loader weighs 4.1 tons.

What are the transport dimensions of the Mecalac AS50 wheel loader?

The Mecalac AS50 has a transport length of 4.87 meters, a transport width of 1.62 meters, and a transport height of 2.55 meters.

What is the travel speed of the Mecalac AS50 wheel loader?

The Mecalac AS50 wheel loader has a travel speed of 30 km/h.

What is the standard tyre size of the Mecalac AS50 wheel loader?

The Mecalac AS50 wheel loader has standard tyres sized 12.5-18.

What is the steering mode of the Mecalac AS50 wheel loader?

The Mecalac AS50 wheel loader has an all-wheel steering mode.

What is the lifting force rating of the Mecalac AS50 wheel loader?

The Mecalac AS50 wheel loader has a lifting force rating of 24 kN.

What is the maximum discharge height of the Mecalac AS50?

The Mecalac AS50 has a maximum discharge height of 2.5 meters.

What are the bucket capacity specifications of the Mecalac AS50 wheel loader?

The Mecalac AS50 wheel loader has a bucket capacity ranging from 0.5 to 0.8 cubic meters, with a standard bucket capacity of 0.5 cubic meters.
