Mecalac AF1050 Specifications & Technical Data (2021-2024)

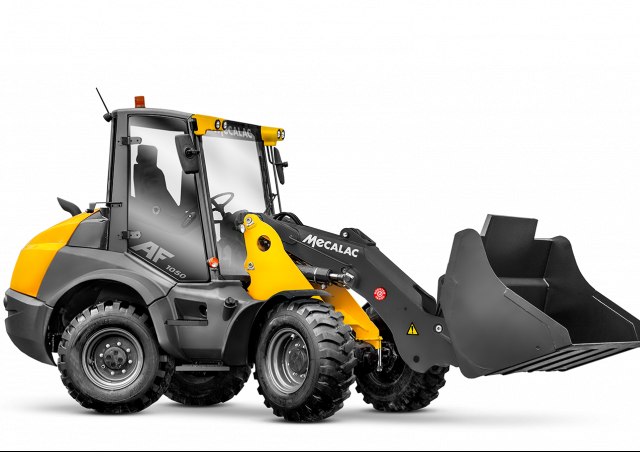

Name: Mecalac AF1050 Wheel Loaders
Brand: Mecalac

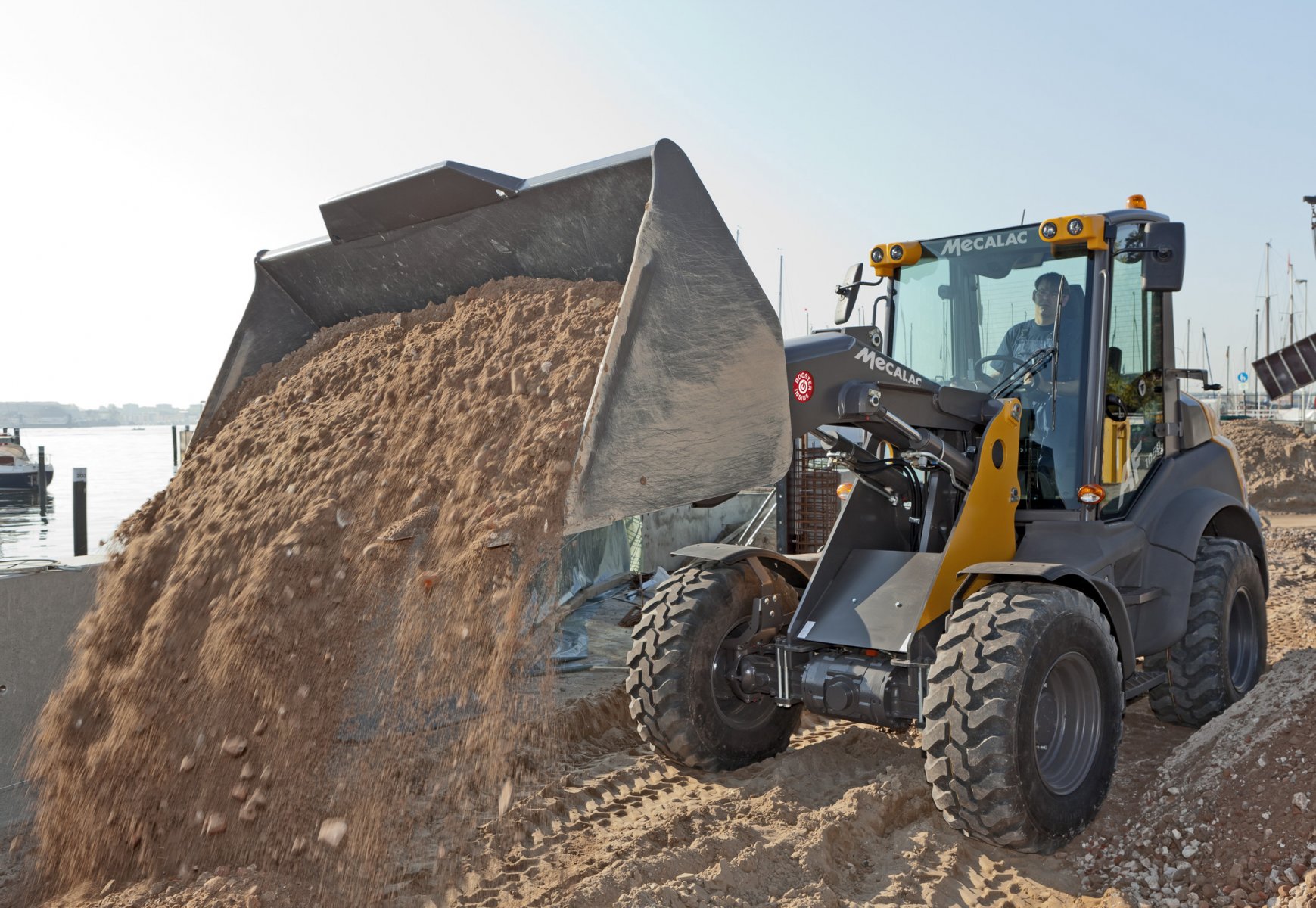

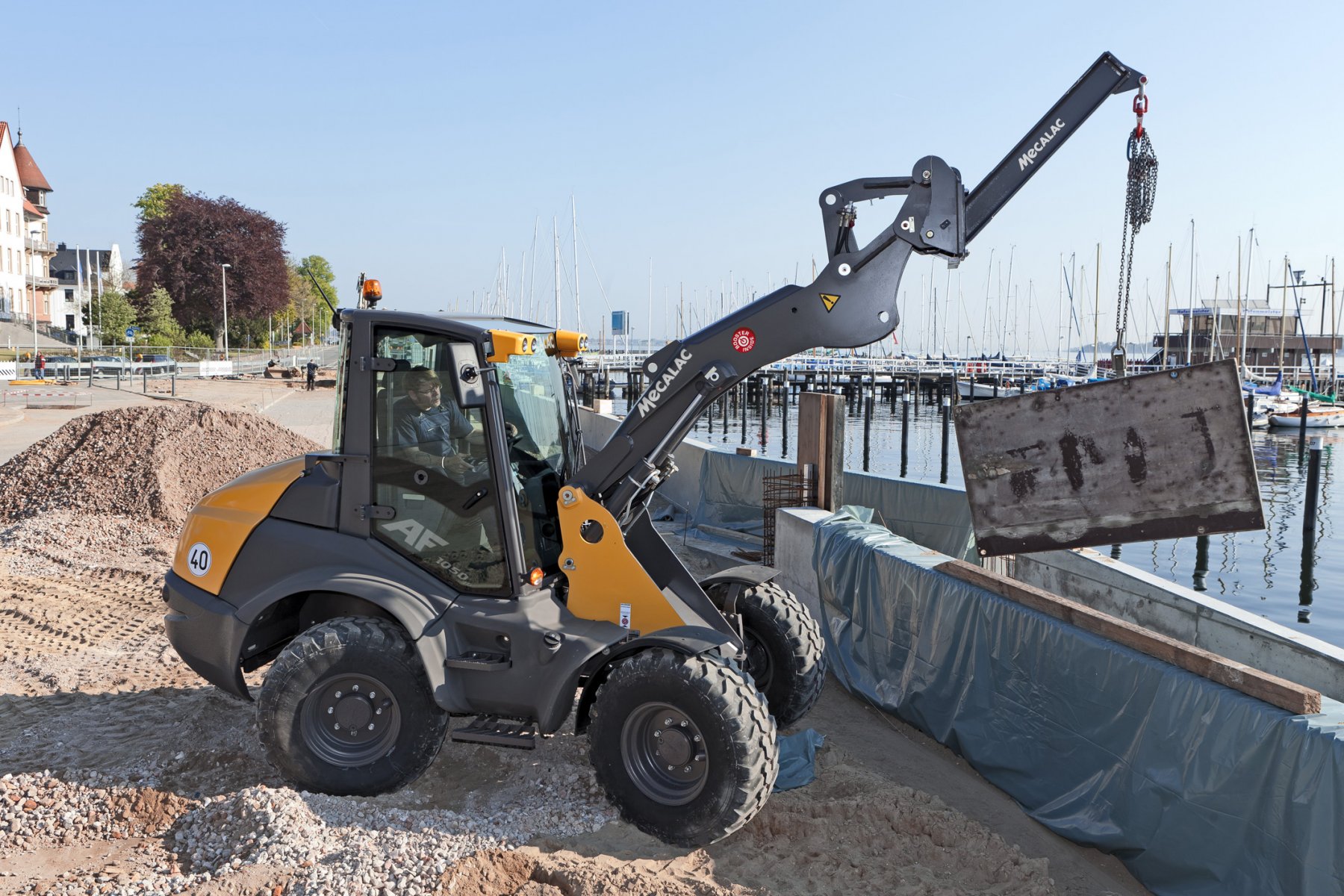

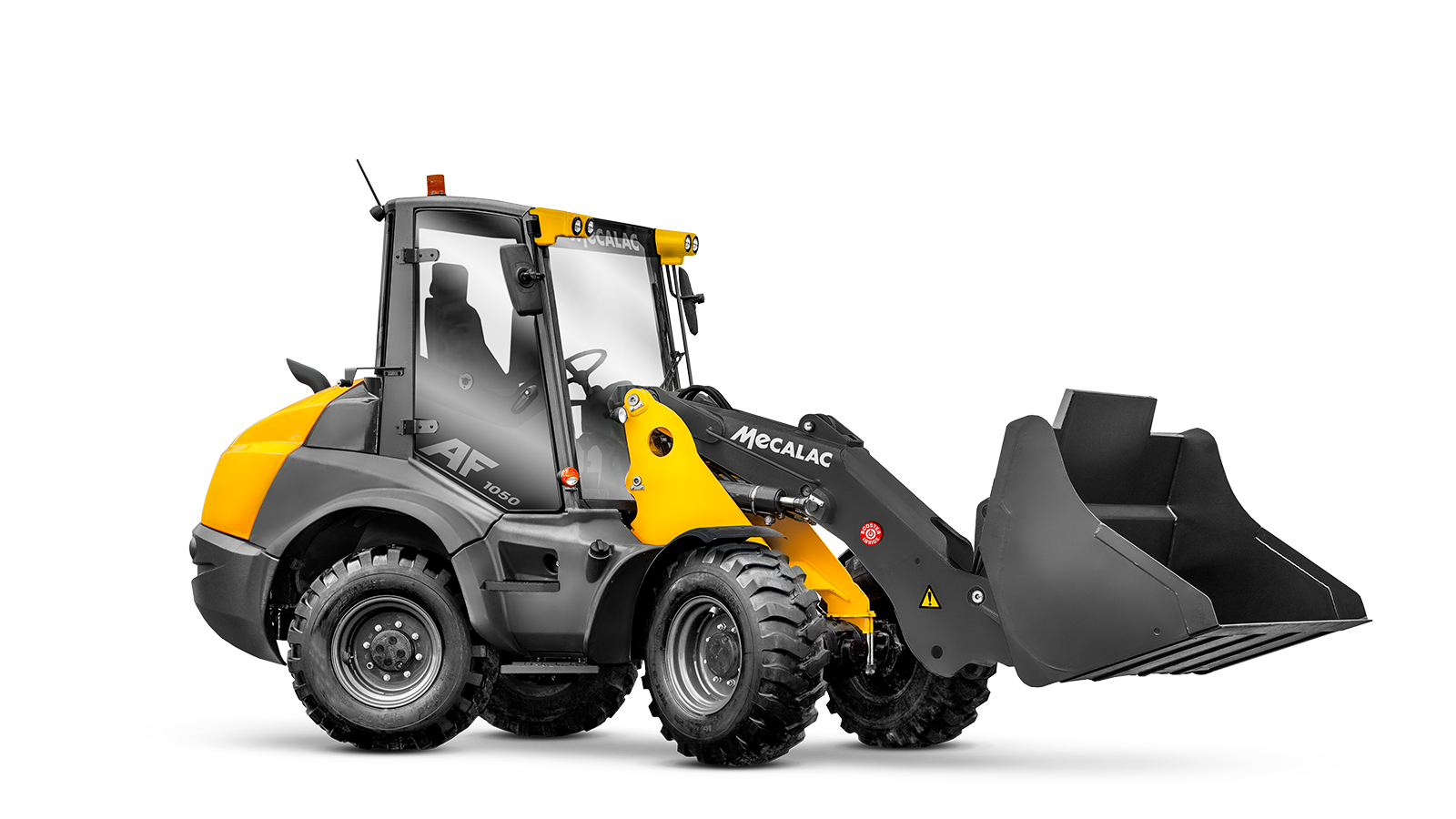

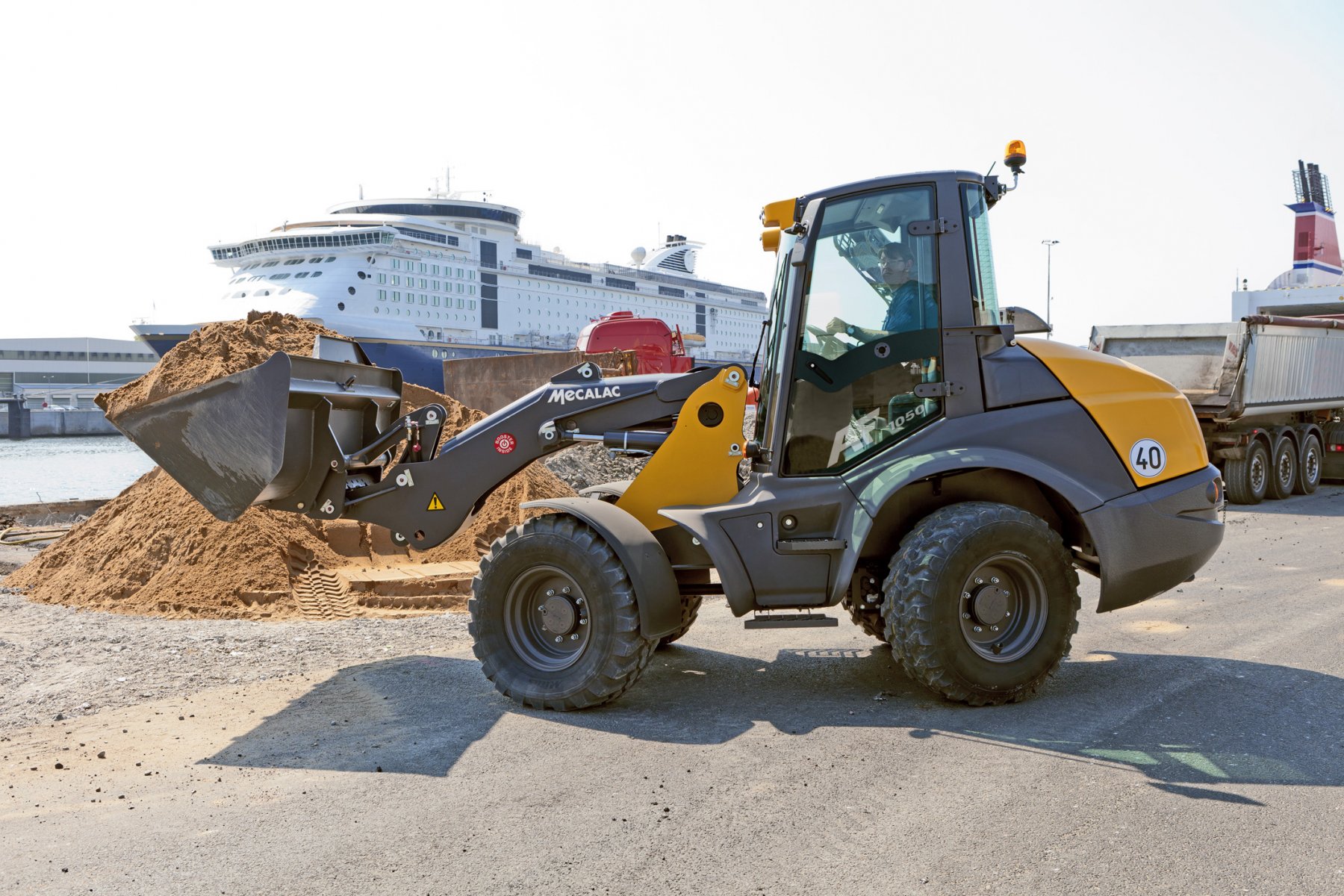

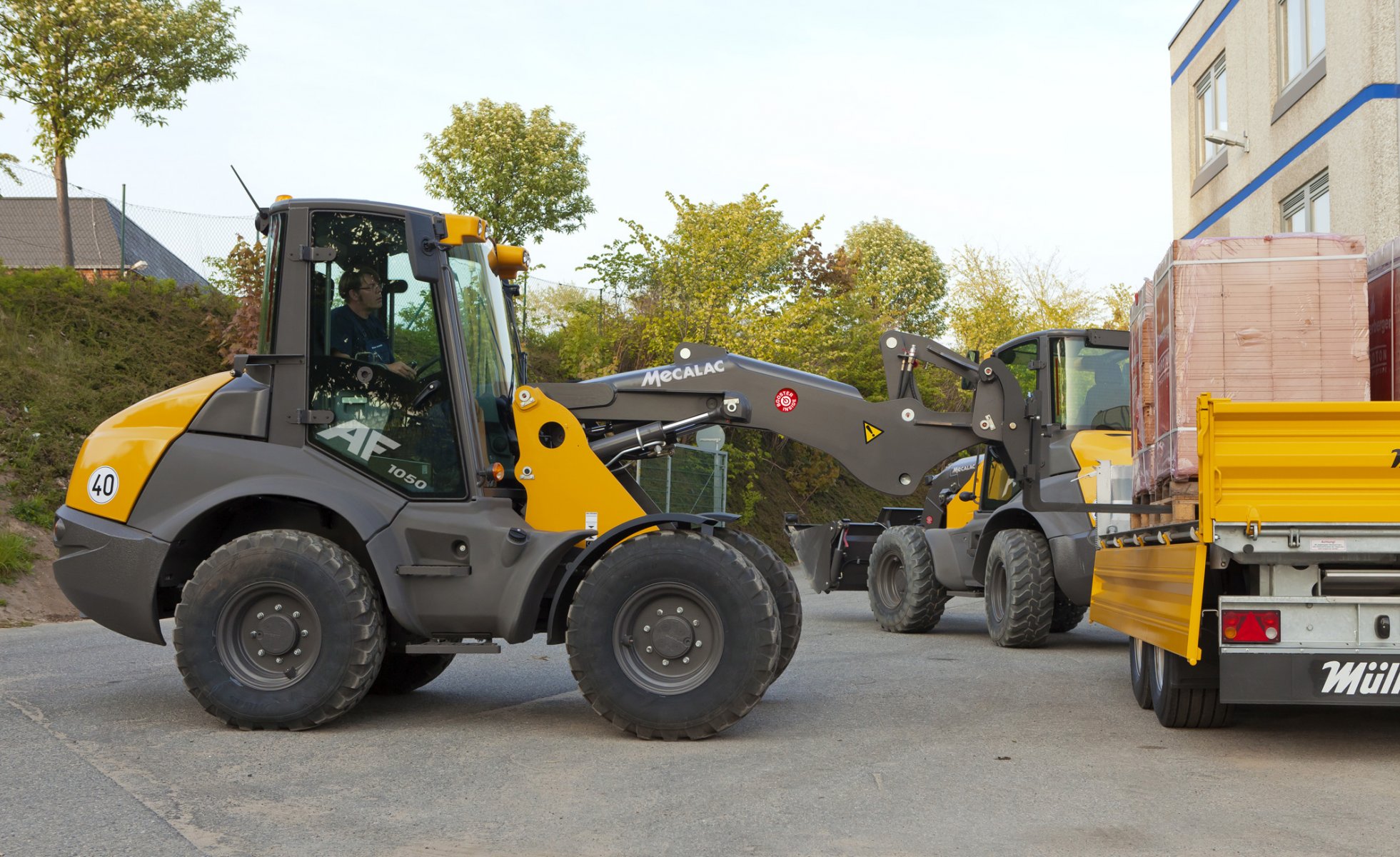

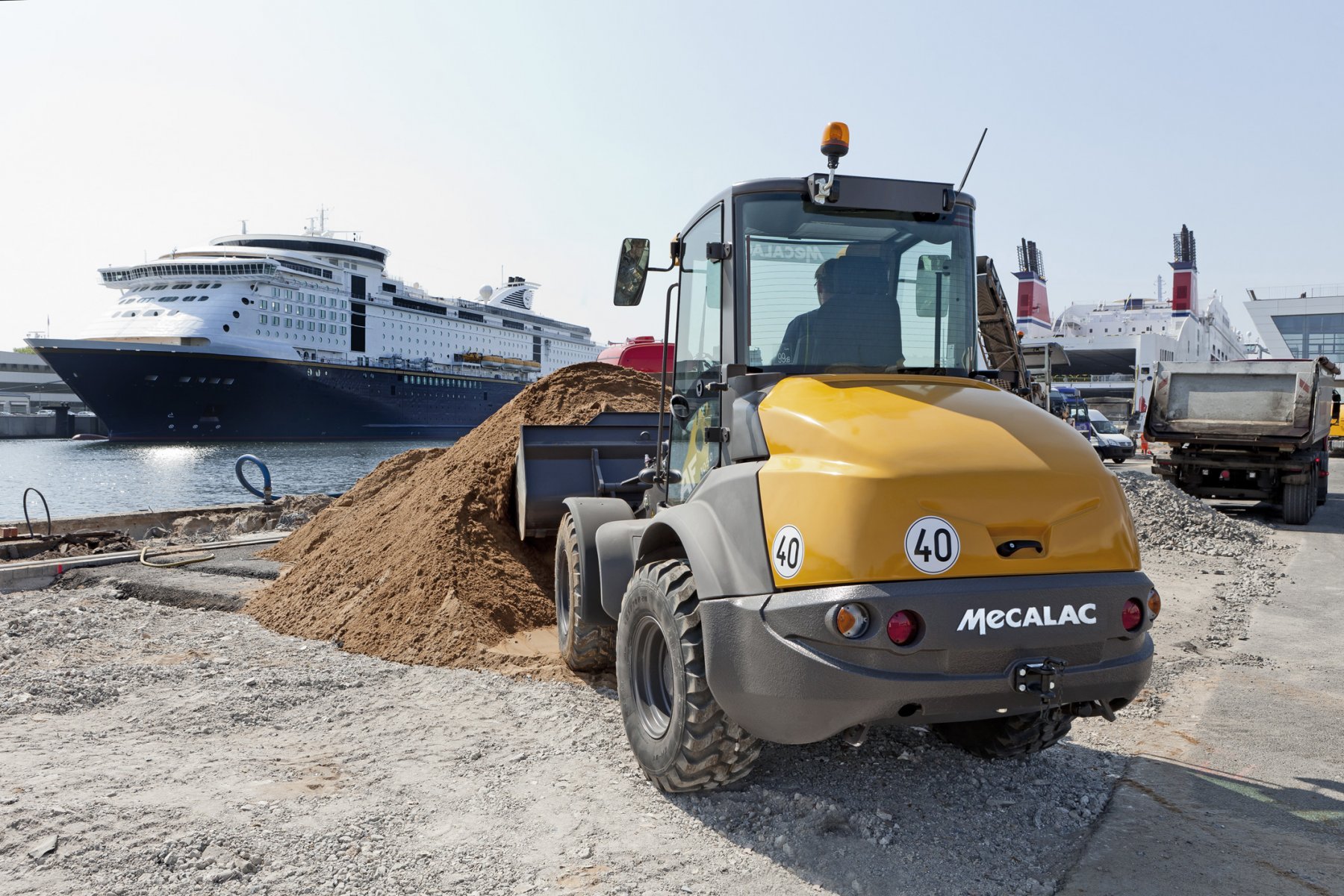

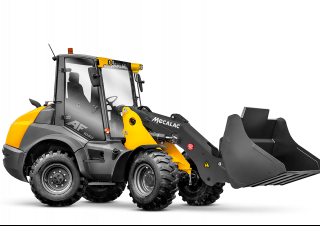

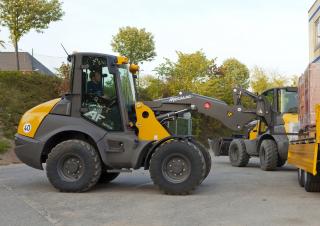

The Mecalac AF1050 is a wheel loader manufactured since 2021. It has a weight of 5.8 tons and a transport length of 6.03 meters. T…

The Mecalac AF1050 is a wheel loader manufactured since 2021. It has a weight of 5.8 tons and a transport length of 6.03 meters. The bucket capacity ranges from 1.05 to 1.5 cubic meters, with a maximum discharge height of 2.7 meters. It has a travel speed of 30 km/h and a transport width of 2.1 meters. The transport height is 2.83 meters, and the turning radius outside is 3.7 meters. It has a lifting force of 65 kN and is equipped with a quick hitch hydraulic mechanism.

Technical specs - AF1050 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.8 t

Standard tyres: 14.5-20

Bucket capacity: 1.05 m³

Bucket capacity min.: 1.05 m³

Bucket capacity max.: 1.5 m³

Steering mode: AL

Transport length: 6.03 m

Transport width: 2.1 m

Transport height: 2.83 m

Travel speed: 30 km/h

Max. discharge height: 2.7 m

Turning radius outside: 3.7 m

Lifting force: 65 kN

Model series: AF

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Displacement: 2.9 l

Revolutions at max torque: 2300 rpm

Max. torque: 300/1600 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No
