MLA 4-50 H-C Manitou MLA 4-50 H-C Specifications & Technical Data (2022—2026)

The Manitou MLA 4-50 H-C is a wheel loader manufactured since 2022. It has a weight of 2.246 tons and a transport length of 3.531 …

The Manitou MLA 4-50 H-C is a wheel loader manufactured since 2022. It has a weight of 2.246 tons and a transport length of 3.531 meters. The bucket width is 1.52 meters and the maximum discharge height is 1.829 meters. It has a travel speed of 20 km/h and a transport width of 1.1 meters. The transport height is 2.258 meters, and the lifting force is 241 kN. The turning radius outside is 2.767 meters.

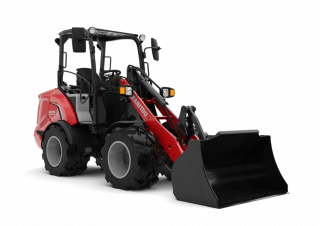

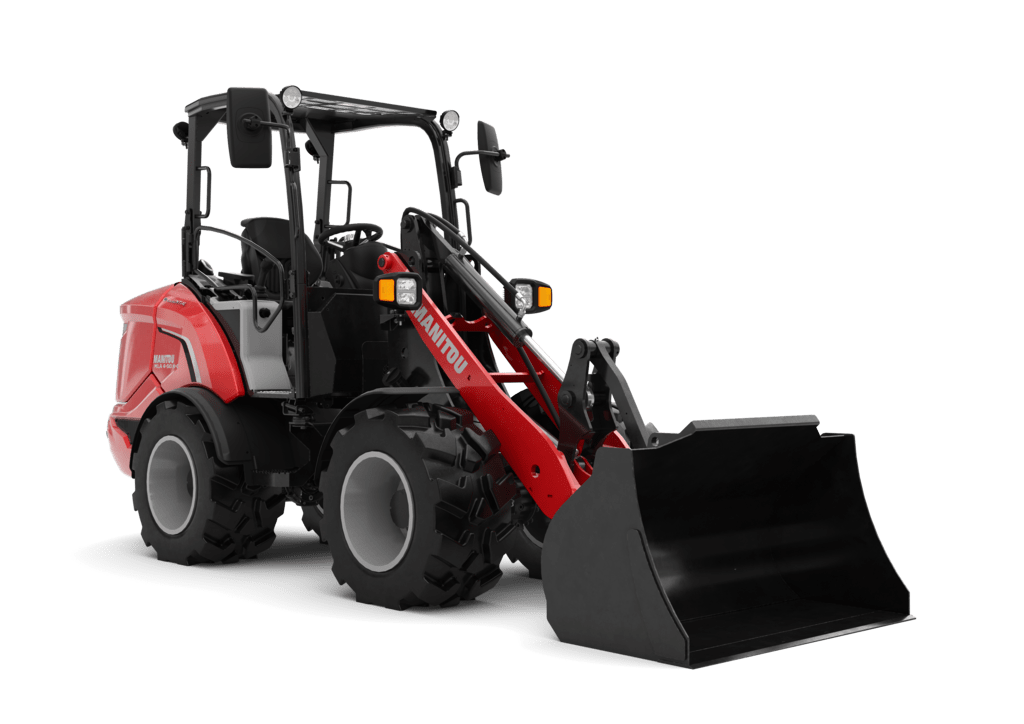

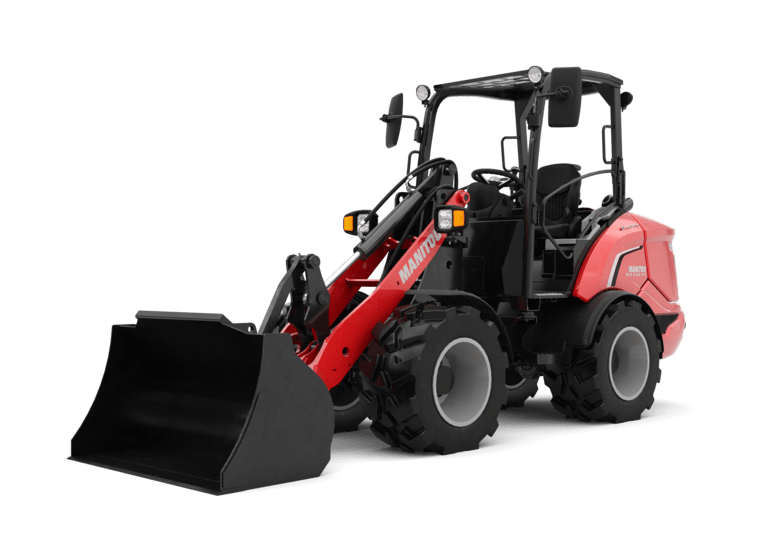

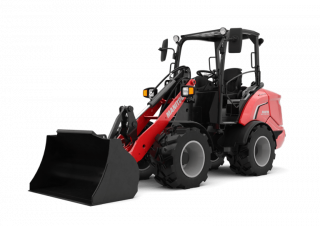

Wheel Loaders Manitou MLA 4-50 H-C
Wheel Loaders Manitou MLA 4-50 H-C
Wheel Loaders Manitou MLA 4-50 H-C
Wheel Loaders Manitou MLA 4-50 H-C
Wheel Loaders Manitou MLA 4-50 H-C
Wheel Loaders Manitou MLA 4-50 H-C

Visit Manitou live at

Technical specs - MLA 4-50 H-C Manitou

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.246 t
Bucket width
1.52 m
Steering mode
KL
Transport length
3.531 m
Transport width
1.1 m
Transport height
2.258 m
Travel speed
20 km/h
Max. discharge height
1.829 m
Turning radius outside
2.767 m
Lifting force
241 kN
Engine manuf.
Perkins
Engine type
403J-E17T
Engine power
36 kW
Revolutions at max torque
2200 rpm
Max. torque
166/1600 Nm
No. of cylinders
3
Emission level
V

More technical details, like: standard tyres, bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Manitou MLA 4-50 H-C FAQ

When was the Manitou MLA 4-50 H-C manufactured?

The Manitou MLA 4-50 H-C was first produced in 2022.

How much does the Manitou MLA 4-50 H-C weigh?

The Manitou MLA 4-50 H-C weighs 2.25 tons.

What are the transport dimensions of the Manitou MLA 4-50 H-C?

The Manitou MLA 4-50 H-C has a transport length of 3.53 meters, a transport width of 1.1 meters, and a transport height of 2.26 meters.

What is the travel speed of the Manitou MLA 4-50 H-C wheel loader?

The Manitou MLA 4-50 H-C has a travel speed of 20 km/h.

What are the maneuverability specifications of the Manitou MLA 4-50 H-C wheel loader?

The Manitou MLA 4-50 H-C has an articulated-frame steering system and an outside turning radius of 2.767 meters.

What is the power rating of the Manitou MLA 4-50 H-C wheel loader?

The source data does not provide power rating information for the Manitou MLA 4-50 H-C wheel loader.

What is the maximum discharge height of the Manitou MLA 4-50 H-C wheel loader?

The Manitou MLA 4-50 H-C wheel loader has a maximum discharge height of 1.83 meters.

What is the width of the bucket on the Manitou MLA 4-50 H-C wheel loader?

The bucket on the Manitou MLA 4-50 H-C wheel loader has a width of 1.52 meters.

How much is a Manitou MLA 4-50 H-C Wheel loader (2022u20132025) worth?

The residual value of the Manitou MLA 4-50 H-C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
