L 25 Ljungby L 25 Specifications & Technical Data (2019—2026)

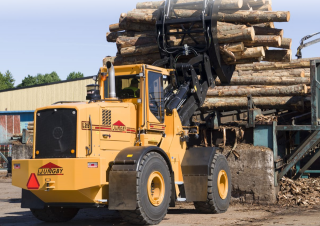

The Ljungby L 25 is a wheel loader manufactured since 2019. It has a weight of 28.5 tons and a transport length of 9.31 meters. Th…

The Ljungby L 25 is a wheel loader manufactured since 2019. It has a weight of 28.5 tons and a transport length of 9.31 meters. The bucket capacity ranges from 5 to 14 cubic meters, with a bucket width of 3.4 meters. The maximum discharge height is 0.451 meters. It has a transport width of 3.138 meters and a transport height of 3.81 meters. The lifting force is 230 kN, and the turning radius outside is 7.686 meters.

L 25

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - L 25 Ljungby

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 28.5 t

Standard tyres: 26.5 R25

Bucket width: 3.4 m

Bucket capacity: 5 m³

Bucket capacity min.: 5 m³

Bucket capacity max.: 14 m³

Steering mode: KL

Transport length: 9.31 m

Transport width: 3.138 m

Transport height: 3.81 m

Max. discharge height: 4.451 m

Turning radius outside: 7.686 m

Lifting force: 230 kN

Engine manuf.: Scania

Engine type: DC13 312A

Engine power: 294 kW

Max. torque: 2110 Nm

Emission level: V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

L 25 Ljungby Specification for Europe (SW)

Ljungby L 25 FAQ

When was the Ljungby L 25 manufactured?

The Ljungby L 25 was first produced in 2019.

How much does the Ljungby L 25 wheel loader weigh?

The Ljungby L 25 wheel loader weighs 28.5 tons.

What are the transport dimensions of the Ljungby L 25 wheel loader?

The Ljungby L 25 has a transport length of 9.31 meters, a transport width of 3.14 meters, and a transport height of 3.81 meters.

What are the undercarriage specifications of the Ljungby L 25 wheel loader?

The Ljungby L 25 wheel loader is equipped with standard tyres sized 26.5 R25.

What are the maneuverability specifications of the Ljungby L 25 wheel loader?

The Ljungby L 25 has an articulated-frame steering system and an outside turning radius of 7.686 meters.

What is the power rating of the Ljungby L 25 wheel loader?

The source data does not provide power rating information for the Ljungby L 25 wheel loader.

What is the maximum discharge height of the Ljungby L 25 wheel loader?

The Ljungby L 25 wheel loader has a maximum discharge height of 4.451 meters.

What are the specifications of the bucket on the Ljungby L 25 wheel loader?

The Ljungby L 25 wheel loader has a bucket with a capacity ranging from 5 to 14 cubic meters and a width of 3.4 meters.

How much is a Ljungby L 25 Wheel loader (2019u20132025) worth?

The residual value of the Ljungby L 25 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
