L 20 Ljungby L 20 Specifications & Technical Data (2010—2018)

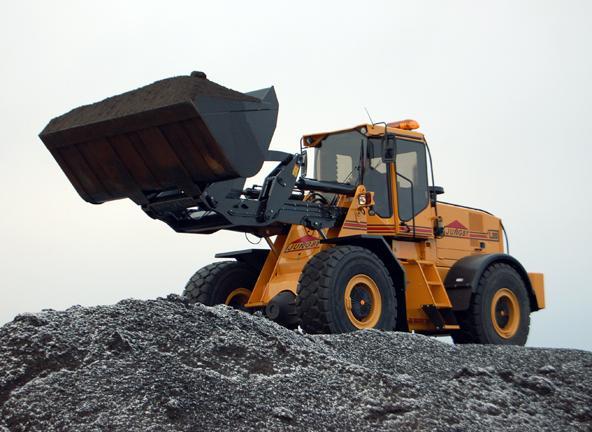

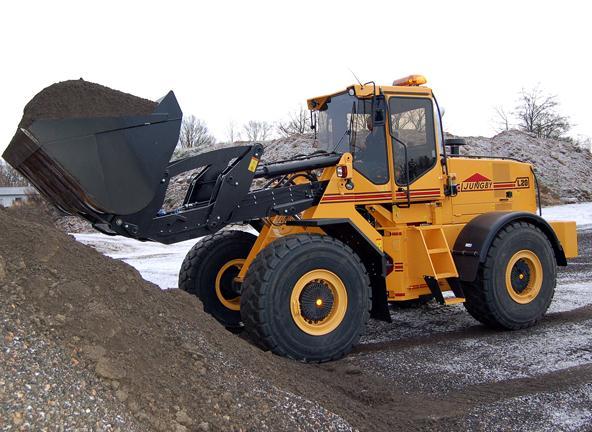

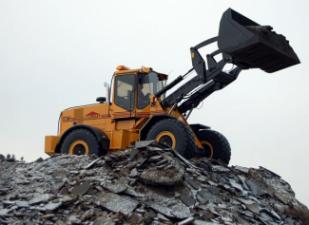

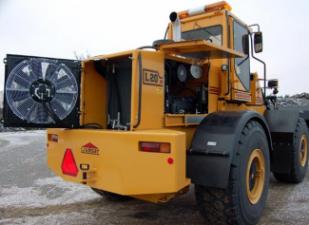

The Ljungby L 20 is a wheel loader manufactured from 2010 to 2018. It has a weight of 22 tons and a transport length of 7.84 meter…

The Ljungby L 20 is a wheel loader manufactured from 2010 to 2018. It has a weight of 22 tons and a transport length of 7.84 meters. The bucket capacity is 4.5 cubic meters, with a bucket width of 3.05 meters. The maximum discharge height is 4.345 meters. It has a transport width of 2.88 meters and a transport height of 3.51 meters. The lifting force is 180 kN, and the turning radius outside is 6.43 meters. The minimum bucket capacity is 4.5 cubic meters.

L 20

Years of manufacture: 2010—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - L 20 Ljungby

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 22 t

Standard tyres: 23.5 R25

Bucket width: 3.05 m

Bucket capacity: 4.5 m³

Bucket capacity min.: 4.5 m³

Steering mode: KL

Transport length: 7.84 m

Transport width: 2.88 m

Transport height: 3.51 m

Max. discharge height: 4.345 m

Turning radius outside: 6.43 m

Lifting force: 180 kN

Engine manuf.: Mercedes-Benz

Engine type: OM906 LA

Engine power: 205 kW

Displacement: 7.2 l

Revolutions at max torque: 2200 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

L 20 Ljungby Specification for Europe (EN)

Ljungby L 20 FAQ

When was the Ljungby L 20 manufactured?

The Ljungby L 20 was manufactured from 2010 to 2018.

How much does the Ljungby L 20 wheel loader weigh?

The Ljungby L 20 wheel loader weighs 22 tons.

What are the transport dimensions of the Ljungby L 20 wheel loader?

The Ljungby L 20 has a transport length of 7.84 meters, a transport width of 2.88 meters, and a transport height of 3.51 meters.

What are the undercarriage specifications of the Ljungby L 20 wheel loader?

The Ljungby L 20 wheel loader is equipped with standard tyres sized 23.5 R25.

What are the maneuverability specifications of the Ljungby L 20 wheel loader?

The Ljungby L 20 wheel loader has an articulated-frame steering system and an outside turning radius of 6.43 meters.

What is the lifting force of the Ljungby L 20 wheel loader?

The Ljungby L 20 wheel loader has a lifting force of 180 kN.

What is the maximum discharge height of the Ljungby L 20 wheel loader?

The Ljungby L 20 wheel loader has a maximum discharge height of 4.35 meters.

What are the specifications of the bucket on the Ljungby L 20 wheel loader?

The Ljungby L 20 wheel loader has a bucket capacity of 4.5 cubic meters, a minimum bucket capacity of 4.5 cubic meters, and a bucket width of 3.05 meters.
