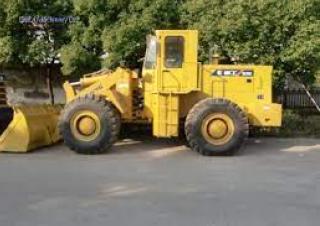

ZL50C Liugong ZL50C Specifications & Technical Data (2010—2025)

The Liugong ZL50C is a wheel loader manufactured since 2010. It has a weight of 16 tons and a bucket capacity of 3 cubic meters, w…

The Liugong ZL50C is a wheel loader manufactured since 2010. It has a weight of 16 tons and a bucket capacity of 3 cubic meters, with a bucket width of 2 meters. The maximum discharge height is 4 meters, and it has a travel speed of 34 km/h. The transport width is 2 meters, and the transport height is 3 meters. The turning radius outside is 7 meters, and the maximum bucket capacity is 3 cubic meters.

Wheel Loaders Liugong ZL50C

Visit Liugong live at

Technical specs - ZL50C Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.5 t
Standard tyres
23.5 - 25
Bucket width
2.976 m
Bucket capacity
3 m³
Bucket capacity max.
3 m³
Transport width
2.75 m
Transport height
3.483 m
Travel speed
34 km/h
Max. discharge height
4.021 m
Turning radius outside
7.72 m
Engine manuf.
Weichai
Engine type
N/A
Engine power
162 kW
Displacement
9.726 l
Revolutions at max torque
1400 - 1600 rpm
Max. torque
860 Nm
No. of cylinders
6
Emission level
Tier 2/Stage II

More technical details, like: bucket capacity min., steering mode, transport length, lifting force, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong ZL50C FAQ

When was the Liugong ZL50C manufactured?

The Liugong ZL50C was first produced in 2010.

How much does the Liugong ZL50C wheel loader weigh?

The Liugong ZL50C wheel loader weighs 16.5 tons.

What are the transport dimensions of the Liugong ZL50C wheel loader?

The Liugong ZL50C has a transport width of 2.75 meters and a transport height of 3.48 meters.

What is the travel speed of the Liugong ZL50C wheel loader?

The Liugong ZL50C wheel loader has a travel speed of 34 km/h.

What are the undercarriage specifications of the Liugong ZL50C wheel loader?

The Liugong ZL50C wheel loader is equipped with standard tyres sized 23.5 - 25.

What is the outside turning radius of the Liugong ZL50C wheel loader?

The Liugong ZL50C has an outside turning radius of 7.72 meters.

What is the maximum discharge height of the Liugong ZL50C?

The Liugong ZL50C has a maximum discharge height of 4.02 meters.

What are the bucket specifications of the Liugong ZL50C wheel loader?

The Liugong ZL50C wheel loader has a bucket capacity of 3 cubic meters, a maximum bucket capacity of 3 cubic meters, and a bucket width of 2.98 meters.

How much is a Liugong ZL50C Wheel loader (2010u20132025) worth?

The residual value of the Liugong ZL50C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
