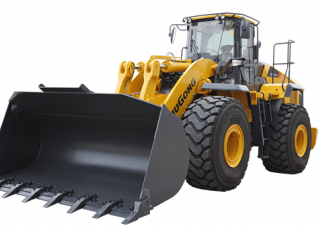

890H Liugong 890H Specifications & Technical Data (2020—2026)

The Liugong 890H is a wheel loader manufactured since 2020. It has a weight of 32.5 tons and a transport length of 9.72 meters. Th…

The Liugong 890H is a wheel loader manufactured since 2020. It has a weight of 32.5 tons and a transport length of 9.72 meters. The maximum discharge height is 3.33 meters, and it can travel at a speed of 38.2 km/h. The transport width is 3.17 meters, and the transport height is 3.785 meters. It has a lifting force of 245 kN and a turning radius outside of 7.011 meters. The bucket capacity ranges from 5.4 to 9 cubic meters, and it is equipped with air conditioning.

Visit Liugong live at

890H

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - 890H Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 32.5 t

Standard tyres: 29.5 R 25

Bucket capacity min.: 5.4 m³

Bucket capacity max.: 9 m³

Transport length: 9.72 m

Transport width: 3.17 m

Transport height: 3.785 m

Travel speed: 38.2 km/h

Max. discharge height: 3.33 m

Turning radius outside: 7.011 m

Lifting force: 245 kN

Model series: Large

Engine manuf.: Cummins

Engine type: QSX12

Engine power: 262 kW

Displacement: 11.8 l

Revolutions at max torque: 2100 rpm

Max. torque: 1693/1400 Nm

No. of cylinders: 6

Emission level: EU V

More technical details, like: bucket width, bucket capacity, steering mode, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

890H Liugong Specification for Europe (EN)

Liugong 890H FAQ

When was the Liugong 890H manufactured?

The Liugong 890H was first produced in 2020.

How much does the Liugong 890H wheel loader weigh?

The Liugong 890H wheel loader weighs 32.5 tons.

What are the transport dimensions of the Liugong 890H wheel loader?

The Liugong 890H has a transport length of 9.72 meters, a transport width of 3.17 meters, and a transport height of 3.79 meters.

What is the travel speed of the Liugong 890H wheel loader?

The Liugong 890H has a travel speed of 38.2 km/h.

What are the standard tyre specifications of the Liugong 890H wheel loader?

The Liugong 890H wheel loader is equipped with standard tyres sized 29.5 R 25.

What is the turning radius of the Liugong 890H wheel loader?

The Liugong 890H wheel loader has an outside turning radius of 7.011 meters.

What is the lifting force of the Liugong 890H wheel loader?

The Liugong 890H wheel loader has a lifting force of 245 kN.

What is the maximum discharge height of the Liugong 890H wheel loader?

The Liugong 890H wheel loader has a maximum discharge height of 3.33 meters.

What are the bucket capacity specifications of the Liugong 890H wheel loader?

The Liugong 890H wheel loader has a bucket capacity ranging from 5.4 to 9 cubic meters.

How much is a Liugong 890H Wheel loader (2020u20132025) worth?

The residual value of the Liugong 890H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
