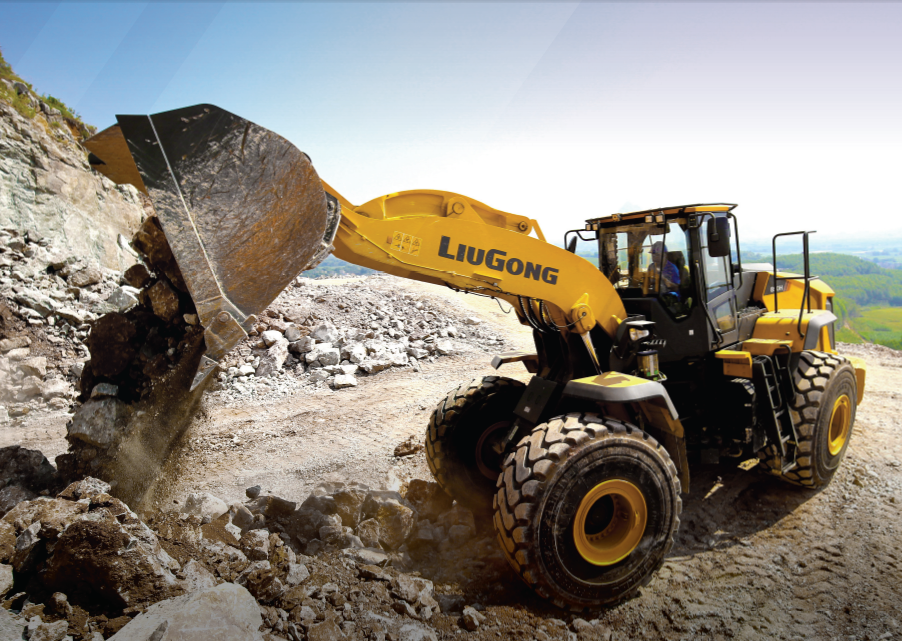

890H Liugong 890H Specifications & Technical Data (2016—2026)

The Liugong 890H is a wheel loader manufactured since 2016. It has a weight of 30.8 tons and a transport length of 9.352 meters. T…

The Liugong 890H is a wheel loader manufactured since 2016. It has a weight of 30.8 tons and a transport length of 9.352 meters. The maximum discharge height is 3.33 meters, and it can travel at a speed of 38.2 km/h. The transport width is 3.17 meters, and the transport height is 3.765 meters. It has a lifting force of 245 kN and a turning radius outside of 7.011 meters. The bucket capacity ranges from 5.4 to 9 cubic meters. Special equipment includes air conditioning.

Wheel Loaders Liugong 890H

Visit Liugong live at

Technical specs - 890H Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
30.8 t
Standard tyres
29.5 R 25
Bucket capacity min.
5.4 m³
Bucket capacity max.
9 m³
Transport length
9.352 m
Transport width
3.17 m
Transport height
3.765 m
Travel speed
38.2 km/h
Max. discharge height
3.33 m
Turning radius outside
7.011 m
Lifting force
245 kN
Model series
Large
Engine manuf.
Cummins
Engine type
QSG12
Engine power
262 kW
Displacement
11.8 l
Revolutions at max torque
2100 rpm
Max. torque
1693/1400 Nm
No. of cylinders
6
Emission level
Tier 4f/EU IV

More technical details, like: bucket width, bucket capacity, steering mode, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong 890H FAQ

When was the Liugong 890H manufactured?

The Liugong 890H was first produced in 2016.

How much does the Liugong 890H wheel loader weigh?

The Liugong 890H wheel loader weighs 30.8 tons.

What are the transport dimensions of the Liugong 890H wheel loader?

The Liugong 890H has a transport length of 9.35 meters, a transport width of 3.17 meters, and a transport height of 3.77 meters.

What is the travel speed of the Liugong 890H wheel loader?

The Liugong 890H has a travel speed of 38.2 km/h.

What is the standard tyre size of the Liugong 890H wheel loader?

The Liugong 890H wheel loader has standard tyres sized 29.5 R 25.

What is the turning radius of the Liugong 890H wheel loader?

The Liugong 890H wheel loader has an outside turning radius of 7.011 meters.

What is the lifting force of the Liugong 890H wheel loader?

The Liugong 890H wheel loader has a lifting force of 245 kN.

What is the material handling capacity of the Liugong 890H in terms of maximum discharge height?

The Liugong 890H has a maximum discharge height of 3.33 meters.

What are the bucket capacity specifications of the Liugong 890H wheel loader?

The Liugong 890H wheel loader has a bucket capacity ranging from 5.4 to 9 cubic meters.
