877H Liugong 877H Specifications & Technical Data (2017—2026)

The Liugong 877H is a wheel loader manufactured since 2017. It has a weight of 23.95 tons and a transport length of 9.1 meters. Th…

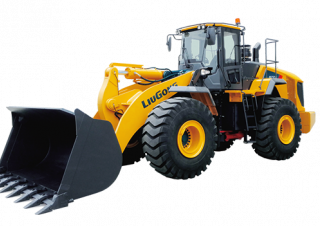

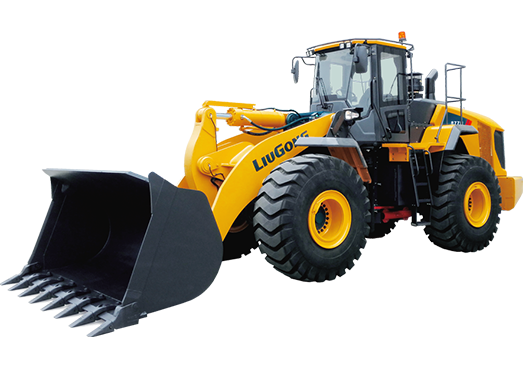

The Liugong 877H is a wheel loader manufactured since 2017. It has a weight of 23.95 tons and a transport length of 9.1 meters. The bucket capacity is 4.2 cubic meters, with a maximum discharge height of 3.15 meters. It has a travel speed of 38.3 km/h and a transport width of 2.97 meters. The transport height is 3.58 meters. The lifting force is 200 kN, and the turning radius outside is 6.625 meters. The bucket capacity ranges from a minimum of 3.5 cubic meters to a maximum of 8 cubic meters. It is equipped with air conditioning.

Wheel Loaders Liugong 877H

Visit Liugong live at

Technical specs - 877H Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.95 t
Standard tyres
26.5 R 25
Bucket capacity
4.2 m³
Bucket capacity min.
3.5 m³
Bucket capacity max.
8 m³
Transport length
9.1 m
Transport width
2.97 m
Transport height
3.58 m
Travel speed
38.3 km/h
Max. discharge height
3.15 m
Turning radius outside
6.625 m
Lifting force
200 kN
Model series
Large
Engine manuf.
Cummins
Engine type
6LTAA8.9
Engine power
210 kW
Displacement
8.9 l
Revolutions at max torque
1600 rpm
Max. torque
1487/1400 Nm
No. of cylinders
6
Emission level
Tier 2/EU II

More technical details, like: bucket width, steering mode, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong 877H FAQ

When was the Liugong 877H manufactured?

The Liugong 877H was first produced in 2017.

How much does the Liugong 877H wheel loader weigh?

The Liugong 877H wheel loader weighs 23.95 tons.

What are the transport dimensions of the Liugong 877H wheel loader?

The Liugong 877H has a transport length of 9.1 meters, a transport width of 2.97 meters, and a transport height of 3.58 meters.

What is the travel speed of the Liugong 877H wheel loader?

The Liugong 877H wheel loader has a travel speed of 38.3 km/h.

What are the undercarriage specifications of the Liugong 877H wheel loader?

The Liugong 877H wheel loader is equipped with standard tyres sized 26.5 R 25.

What is the turning radius of the Liugong 877H wheel loader?

The Liugong 877H wheel loader has an outside turning radius of 6.625 meters.

What is the lifting force of the Liugong 877H wheel loader?

The Liugong 877H wheel loader has a lifting force of 200 kN.

What is the material handling capacity of the Liugong 877H in terms of discharge height?

The Liugong 877H has a maximum discharge height of 3.15 meters for material handling.

What are the bucket capacity specifications of the Liugong 877H wheel loader?

The Liugong 877H wheel loader has a bucket capacity of 4.2 cubic meters, with a minimum capacity of 3.5 cubic meters and a maximum capacity of 8 cubic meters.

How much is a Liugong 877H Wheel loader (2017u20132025) worth?

The residual value of the Liugong 877H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
