856H Liugong 856H Specifications & Technical Data (2018—2026)

The Liugong 856H is a wheel loader manufactured since 2018. It has a weight of 17.8 tons and a transport length of 8.318 meters. T…

The Liugong 856H is a wheel loader manufactured since 2018. It has a weight of 17.8 tons and a transport length of 8.318 meters. The bucket capacity is 3.1 cubic meters, with a maximum discharge height of 2.955 meters. The travel speed of this machine is 38.6 km/h. It has a transport width of 2.75 meters and a transport height of 3.45 meters. The lifting force is 175 kN, and the turning radius outside is 6.205 meters. The bucket capacity ranges from a minimum of 2.6 cubic meters to a maximum of 5.6 cubic meters. The special equipment included is an air conditioning system.

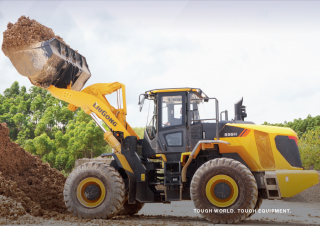

Wheel Loaders Liugong 856H
Wheel Loaders Liugong 856H
Wheel Loaders Liugong 856H
Wheel Loaders Liugong 856H

Visit Liugong live at

Technical specs - 856H Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.8 t
Standard tyres
23.5 R 25
Bucket capacity
3.1 m³
Bucket capacity min.
2.6 m³
Bucket capacity max.
5.6 m³
Transport length
8.318 m
Transport width
2.75 m
Transport height
3.45 m
Travel speed
38.6 km/h
Max. discharge height
2.955 m
Turning radius outside
6.205 m
Lifting force
175 kN
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
160 kW
Displacement
6.7 l
Revolutions at max torque
2000 rpm
Max. torque
950/1500 Nm
No. of cylinders
6
Emission level
Tier 4f/EU IV

More technical details, like: bucket width, steering mode, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong 856H FAQ

When was the Liugong 856H manufactured?

The Liugong 856H was first produced in 2018.

How much does the Liugong 856H wheel loader weigh?

The Liugong 856H wheel loader weighs 17.8 tons.

What are the transport dimensions of the Liugong 856H wheel loader?

The Liugong 856H has a transport length of 8.32 meters, a transport width of 2.75 meters, and a transport height of 3.45 meters.

What is the travel speed of the Liugong 856H wheel loader?

The Liugong 856H wheel loader has a travel speed of 38.6 km/h.

What are the undercarriage specifications of the Liugong 856H wheel loader?

The Liugong 856H wheel loader is equipped with standard tyres sized 23.5 R 25.

What is the outside turning radius of the Liugong 856H wheel loader?

The Liugong 856H wheel loader has an outside turning radius of 6.205 meters.

What is the lifting force of the Liugong 856H wheel loader?

The Liugong 856H wheel loader has a lifting force of 175 kN. No power rating data is provided in the source.

What is the maximum discharge height of the Liugong 856H?

The Liugong 856H has a maximum discharge height of 2.96 meters.

What are the bucket capacity specifications of the Liugong 856H wheel loader?

The Liugong 856H wheel loader has a bucket capacity of 3.1 cubic meters, with a maximum capacity of 5.6 cubic meters and a minimum capacity of 2.6 cubic meters.

How much is a Liugong 856H Wheel loader (2018u20132025) worth?

The residual value of the Liugong 856H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
