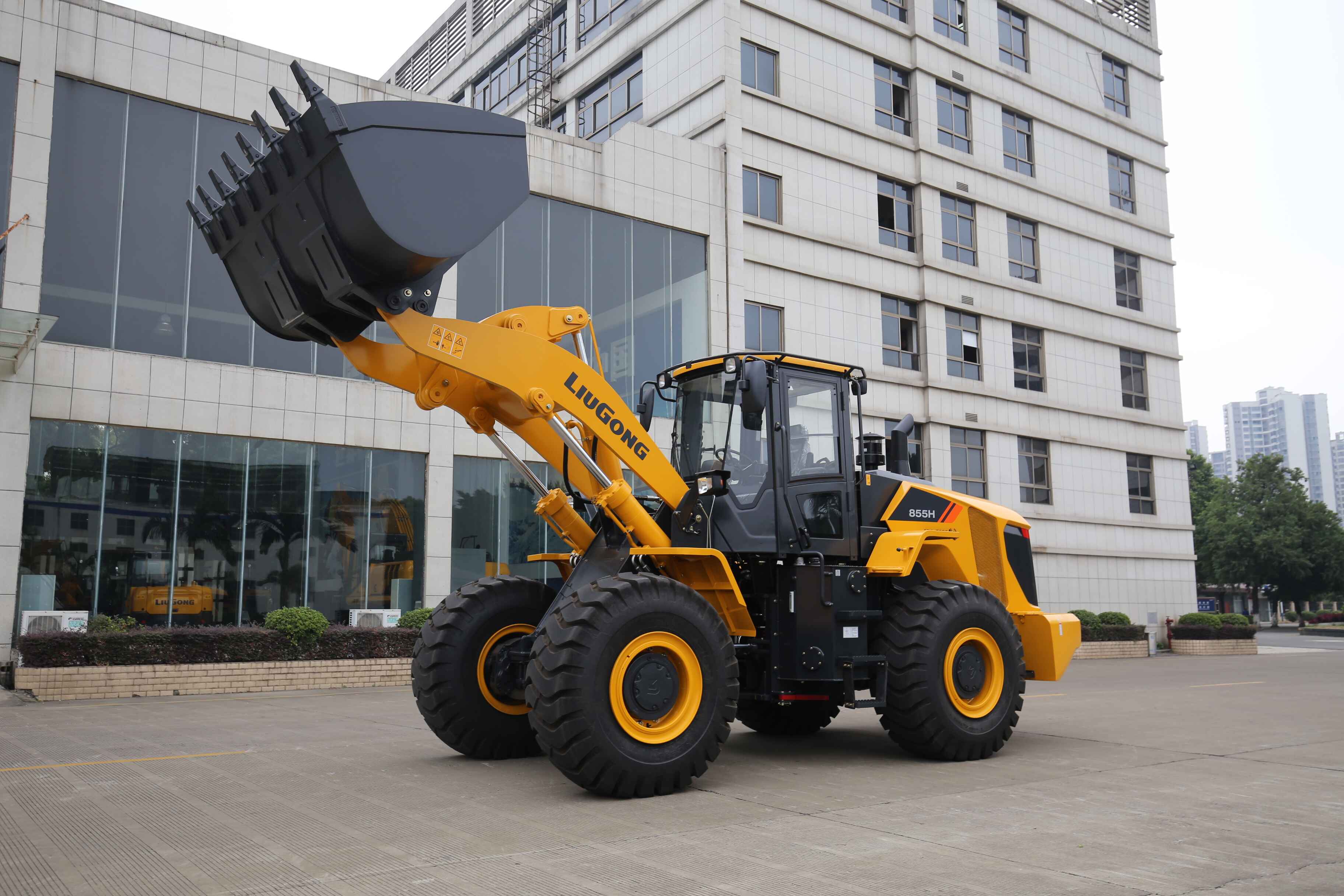

855H Liugong 855H Specifications & Technical Data (2018—2026)

The Liugong 855H is a wheel loader manufactured since 2018. It has a weight of 16.7 tons and a transport length of 8.202 meters. T…

The Liugong 855H is a wheel loader manufactured since 2018. It has a weight of 16.7 tons and a transport length of 8.202 meters. The bucket capacity ranges from 2.6 to 5.2 cubic meters. The maximum discharge height is 2.972 meters. It has a travel speed of 39 km/h and a transport width of 2.75 meters. The transport height is 3.45 meters. The lifting force is 165 kN and the turning radius outside is 6.103 meters. The special equipment includes air conditioning.

Wheel Loaders Liugong 855H

Visit Liugong live at

Technical specs - 855H Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.7 t
Standard tyres
23.5-25
Bucket capacity
5.2 m³
Bucket capacity min.
2.6 m³
Bucket capacity max.
5.2 m³
Transport length
8.202 m
Transport width
2.75 m
Transport height
3.45 m
Travel speed
39 km/h
Max. discharge height
2.972 m
Turning radius outside
6.103 m
Lifting force
165 kN
Engine manuf.
Cummins
Engine type
6LT9.3
Engine power
149 kW
Displacement
9.3 l
Revolutions at max torque
2200 rpm
Max. torque
890 Nm
No. of cylinders
6
Emission level
Tier 2/EU II

More technical details, like: bucket width, steering mode, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong 855H FAQ

When was the Liugong 855H manufactured?

The Liugong 855H was first produced in 2018.

How much does the Liugong 855H wheel loader weigh?

The Liugong 855H wheel loader weighs 16.7 tons.

What are the transport dimensions of the Liugong 855H wheel loader?

The Liugong 855H has a transport length of 8.2 meters, a transport width of 2.75 meters, and a transport height of 3.45 meters.

What is the travel speed of the Liugong 855H wheel loader?

The Liugong 855H wheel loader has a travel speed of 39 km/h.

What is the standard tyre size of the Liugong 855H wheel loader?

The Liugong 855H wheel loader is equipped with standard tyres sized 23.5-25.

What is the turning radius of the Liugong 855H wheel loader?

The Liugong 855H wheel loader has an outside turning radius of 6.103 meters.

What is the lifting force of the Liugong 855H wheel loader?

The Liugong 855H wheel loader has a lifting force of 165 kN.

What is the maximum discharge height of the Liugong 855H wheel loader for material handling?

The Liugong 855H wheel loader has a maximum discharge height of 2.97 meters for material handling.

What are the bucket capacity specifications of the Liugong 855H wheel loader?

The Liugong 855H wheel loader has a bucket capacity of 5.2 cubic meters, with a maximum capacity of 5.2 cubic meters and a minimum capacity of 2.6 cubic meters.

How much is a Liugong 855H Wheel loader (2018u20132025) worth?

The residual value of the Liugong 855H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
