835H Liugong 835H Specifications & Technical Data (2016—2026)

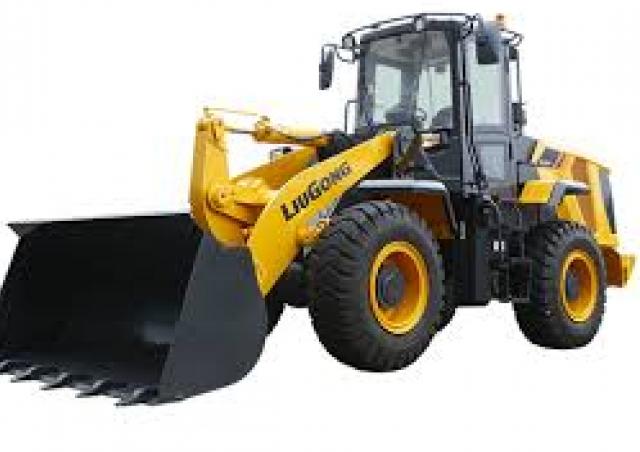

The Liugong 835H is a wheel loader manufactured since 2016. It has a weight of 10.3 tons and a transport length of 7.01 meters. Th…

The Liugong 835H is a wheel loader manufactured since 2016. It has a weight of 10.3 tons and a transport length of 7.01 meters. The bucket capacity is 1.9 cubic meters, with a maximum discharge height of 2.92 meters. The travel speed is 37 km/h, and the transport width is 2.3 meters. The transport height is 3.232 meters. It has a lifting force of 105 kN and a turning radius outside of 5.09 meters. The bucket capacity ranges from a minimum of 1.5 cubic meters to a maximum of 3 cubic meters. It is equipped with air conditioning.

Wheel Loaders Liugong 835H

Visit Liugong live at

Technical specs - 835H Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.3 t
Standard tyres
17.5 - 25
Bucket capacity
1.9 m³
Bucket capacity min.
1.5 m³
Bucket capacity max.
3 m³
Transport length
7.01 m
Transport width
2.3 m
Transport height
3.232 m
Travel speed
37 km/h
Max. discharge height
2.92 m
Turning radius outside
5.09 m
Lifting force
105 kN
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
108 kW
Displacement
6.75 l
Revolutions at max torque
2200 rpm
Max. torque
105 Nm
No. of cylinders
6
Emission level
Tier 3/EU IIIA

More technical details, like: bucket width, steering mode, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong 835H FAQ

When was the Liugong 835H manufactured?

The Liugong 835H was first produced in 2016.

How much does the Liugong 835H wheel loader weigh?

The Liugong 835H wheel loader weighs 10.3 tons.

What are the transport dimensions of the Liugong 835H wheel loader?

The Liugong 835H has a transport length of 7.01 meters, a transport width of 2.3 meters, and a transport height of 3.23 meters.

What is the travel speed of the Liugong 835H wheel loader?

The Liugong 835H has a travel speed of 37 km/h.

What is the standard tyre size of the Liugong 835H?

The Liugong 835H has standard tyres sized 17.5 - 25.

What is the turning radius of the Liugong 835H wheel loader?

The Liugong 835H has an outside turning radius of 5.09 meters.

What is the lifting force of the Liugong 835H wheel loader?

The Liugong 835H wheel loader has a lifting force of 105 kN.

What is the maximum discharge height of the Liugong 835H?

The Liugong 835H has a maximum discharge height of 2.92 meters.

What are the bucket capacity specifications of the Liugong 835H wheel loader?

The Liugong 835H has a bucket capacity of 1.9 cubic meters, with a maximum capacity of 3 cubic meters and a minimum capacity of 1.5 cubic meters.

How much is a Liugong 835H Wheel loader (2016u20132025) worth?

The residual value of the Liugong 835H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
