Liebherr L 574 2+2 Specifications & Technical Data (2003-2024)

Rate this machine now!

The Liebherr L 574 2+2 is a wheel loader manufactured since 2003. It has a weight of 24.2 tons and a transport length of 8.995 met... Read more

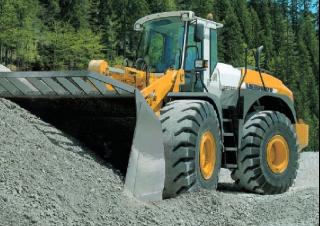

The Liebherr L 574 2+2 is a wheel loader manufactured since 2003. It has a weight of 24.2 tons and a transport length of 8.995 meters. The bucket capacity is 5 cubic meters with a width of 3 meters. The maximum discharge height is 6.32 meters. It has a travel speed of 40 km/h and a transport width and height of 3 meters and 3.54 meters respectively. The lifting force of this machine is 250 kN and it has a turning radius outside of 7.09 meters.

Technical specs - L 574 2+2 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 24.2 t
  • Standard tyres 26.5 R25
  • Bucket width 3 m
  • Bucket capacity 5 m³
  • Transport length 8.995 m
  • Transport width 3 m
  • Transport height 3.54 m
  • Travel speed 40 km/h
  • Max. discharge height 6.32 m
  • Turning radius outside 7.09 m
  • Lifting force 250 kN
  • Model series L
  • Engine manuf. Liebherr
  • Engine type D926 TI-E A2
  • Engine power 195 kW
  • Displacement 9.96 l
  • Revolutions at max torque 2000 rpm
  • Max. torque 1170 Nm
  • No. of cylinders 6
  • Cylinder bore x stroke 122x142 mm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

  • Diesel particulate filter
  • Swing loader
  • telescopic
  • Aircondition
  • Quick hitch hydr.
  • Quick hitch mech.
