L 566 XPower Liebherr L 566 XPower Specifications & Technical Data (2015—2019)

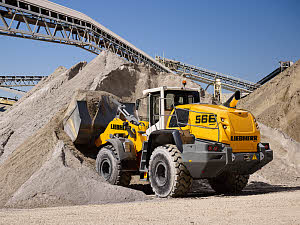

The Liebherr L 566 XPower is a wheel loader manufactured by Liebherr from 2015 to 2019. It has a weight of 23.9 tons and a transpo…

The Liebherr L 566 XPower is a wheel loader manufactured by Liebherr from 2015 to 2019. It has a weight of 23.9 tons and a transport length of 9.165 meters. The bucket capacity is 4.2 cubic meters, with a bucket width of 3 meters. The maximum discharge height is 3.205 meters. It has a travel speed of 40 km/h and a transport width and height of 3 meters and 3.59 meters respectively. The turning radius outside is 7.34 meters. The machine is equipped with air conditioning.

Wheel Loaders Liebherr L 566 XPower
Wheel Loaders Liebherr L 566 XPower
Wheel Loaders Liebherr L 566 XPower
Wheel Loaders Liebherr L 566 XPower

Visit Liebherr live at

Technical specs - L 566 XPower Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.9 t
Standard tyres
26.5 R25
Bucket width
3 m
Bucket capacity
4.2 m³
Bucket capacity min.
4.2 m³
Steering mode
KL
Transport length
9.165 m
Transport width
3 m
Transport height
3.59 m
Travel speed
40 km/h
Max. discharge height
3.205 m
Turning radius outside
7.34 m
Model series
L
Engine manuf.
Liebherr
Engine type
D 936 A7
Engine power
200 kW
Displacement
10.52 l
Revolutions at max torque
1000 rpm
Max. torque
1910 Nm
No. of cylinders
6
Cylinder bore x stroke
122x150 mm
Emission level
IV

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr L 566 XPower FAQ

When was the Liebherr L 566 XPower manufactured?

The Liebherr L 566 XPower was manufactured from 2015 to 2019.

How much does the Liebherr L 566 XPower weigh?

The Liebherr L 566 XPower weighs 23.9 tons.

What are the transport dimensions of the Liebherr L 566 XPower wheel loader?

The Liebherr L 566 XPower has a transport length of 9.17 meters, a transport width of 3 meters, and a transport height of 3.59 meters.

What is the travel speed of the Liebherr L 566 XPower wheel loader?

The Liebherr L 566 XPower has a travel speed of 40 km/h.

What is the fuel consumption range of the Liebherr L 566 XPower wheel loader?

The fuel consumption range of the Liebherr L 566 XPower wheel loader is between 9 and 15 liters per hour.

What are the undercarriage specifications of the Liebherr L 566 XPower wheel loader?

The Liebherr L 566 XPower wheel loader is equipped with standard tyres sized 26.5 R25.

What are the maneuverability specifications of the Liebherr L 566 XPower wheel loader?

The Liebherr L 566 XPower has an articulated-frame steering system and an outside turning radius of 7.34 meters.

What is the maximum discharge height of the Liebherr L 566 XPower wheel loader?

The Liebherr L 566 XPower has a maximum discharge height of 3.21 meters.

What are the specifications of the bucket on the Liebherr L 566 XPower wheel loader?

The Liebherr L 566 XPower wheel loader has a bucket capacity of 4.2 cubic meters, a minimum bucket capacity of 4.2 cubic meters, and a bucket width of 3 meters.

How much is a Liebherr L 566 XPower Wheel loader (2015u20132019) worth?

The residual value of the Liebherr L 566 XPower depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
