L 566 Liebherr L 566 Specifications & Technical Data (2012—2015)

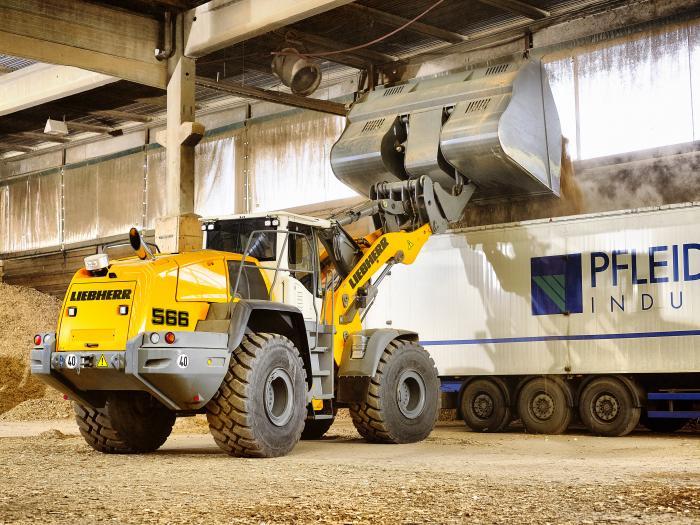

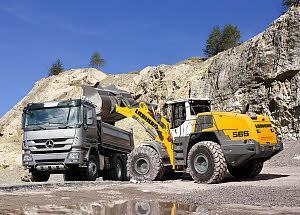

The Liebherr L 566 is a wheel loader manufactured by Liebherr from 2012 to 2015. It has a weight of 23.15 tons and a transport len…

The Liebherr L 566 is a wheel loader manufactured by Liebherr from 2012 to 2015. It has a weight of 23.15 tons and a transport length of 9.26 meters. The bucket capacity is 4 cubic meters with a width of 3 meters. The maximum discharge height is 3.24 meters. It has a travel speed of 40 km/h and a transport width of 3 meters. The transport height is 3.59 meters and the turning radius outside is 7.58 meters. The machine is equipped with air conditioning.

Visit Liebherr live at

L 566

Years of manufacture: 2012—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - L 566 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 23.15 t

Standard tyres: 26.5 R 25

Bucket width: 3 m

Bucket capacity: 4 m³

Bucket capacity min.: 4 m³

Steering mode: KL

Transport length: 9.26 m

Transport width: 3 m

Transport height: 3.59 m

Travel speed: 40 km/h

Max. discharge height: 3.24 m

Turning radius outside: 7.58 m

Model series: L

Engine manuf.: Liebherr

Engine type: D 936 A 7

Engine power: 190 kW

Displacement: 10.52 l

Revolutions at max torque: 1300 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Liebherr L 566 FAQ

When was the Liebherr L 566 manufactured?

The Liebherr L 566 was manufactured from 2012 to 2015.

How much does the Liebherr L 566 weigh?

The Liebherr L 566 weighs 23.15 tons.

What are the transport dimensions of the Liebherr L 566 wheel loader?

The Liebherr L 566 has a transport length of 9.26 meters, a transport width of 3 meters, and a transport height of 3.59 meters.

What is the travel speed of the Liebherr L 566 wheel loader?

The Liebherr L 566 wheel loader has a travel speed of 40 km/h.

What is the standard tyre size of the Liebherr L 566 wheel loader?

The Liebherr L 566 wheel loader is equipped with standard tyres sized 26.5 R 25.

What are the maneuverability specifications of the Liebherr L 566 wheel loader?

The Liebherr L 566 wheel loader has an outside turning radius of 7.58 meters and features articulated-frame steering.

What is the maximum discharge height of the Liebherr L 566?

The Liebherr L 566 has a maximum discharge height of 3.24 meters.

What are the specifications of the bucket on the Liebherr L 566 wheel loader?

The Liebherr L 566 wheel loader has a bucket with a capacity of 4 cubic meters, a minimum bucket capacity of 4 cubic meters, and a bucket width of 3 meters.

How much is a Liebherr L 566 Wheel loader (2012u20132015) worth?

The residual value of the Liebherr L 566 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
