L 564 2+2 Liebherr L 564 2+2 Specifications & Technical Data (2003—2026)

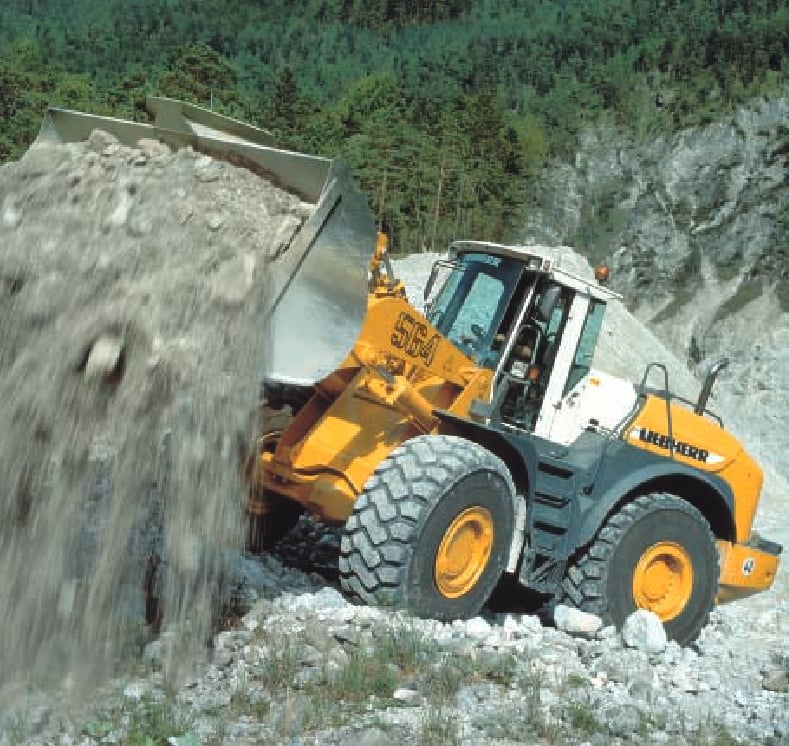

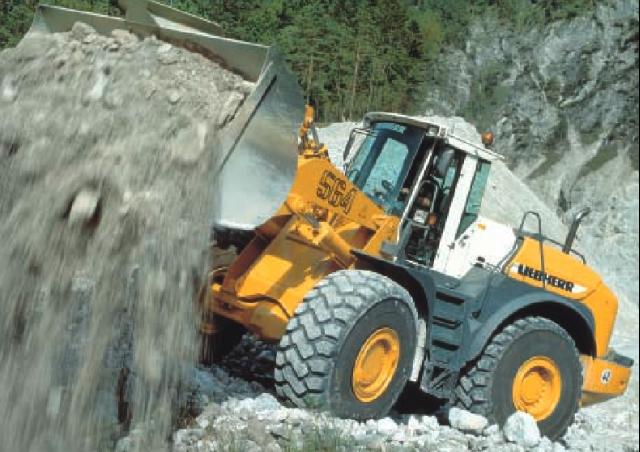

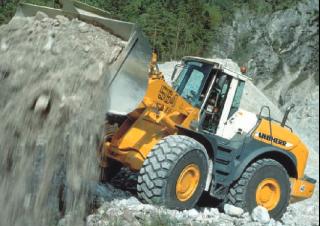

The Liebherr L 564 2+2 is a wheel loader manufactured by Liebherr since 2003. It has a weight of 22.4 tons and a transport length …

The Liebherr L 564 2+2 is a wheel loader manufactured by Liebherr since 2003. It has a weight of 22.4 tons and a transport length of 8.83 meters. The bucket capacity is 5 cubic meters with a width of 3 meters. The maximum discharge height is 6.025 meters. It has a travel speed of 40 km/h and a transport width and height of 3 meters and 3.54 meters respectively. The lifting force of this machine is 245 kN and it has a turning radius outside of 6.99 meters.

Wheel Loaders Liebherr L 564 2+2

Visit Liebherr live at

Technical specs - L 564 2+2 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.4 t
Standard tyres
23.5 R25
Bucket width
3 m
Bucket capacity
5 m³
Transport length
8.83 m
Transport width
3 m
Transport height
3.54 m
Travel speed
40 km/h
Max. discharge height
6.025 m
Turning radius outside
6.99 m
Lifting force
245 kN
Model series
L
Engine manuf.
Liebherr
Engine type
D926 TI-E A2
Engine power
183 kW
Displacement
9.96 l
Revolutions at max torque
2000 rpm
Max. torque
1074 Nm
No. of cylinders
6
Cylinder bore x stroke
122x142 mm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr L 564 2+2 FAQ

When was the Liebherr L 564 2+2 manufactured?

The Liebherr L 564 2+2 was first produced in 2003.

How much does the Liebherr L 564 2+2 weigh?

The Liebherr L 564 2+2 weighs 22.4 tons.

What are the transport dimensions of the Liebherr L 564 2+2 wheel loader?

The Liebherr L 564 2+2 has a transport length of 8.83 meters, a transport width of 3 meters, and a transport height of 3.54 meters.

What is the travel speed of the Liebherr L 564 2+2 wheel loader?

The Liebherr L 564 2+2 wheel loader has a travel speed of 40 km/h.

What are the standard tyre specifications of the Liebherr L 564 2+2 wheel loader?

The Liebherr L 564 2+2 wheel loader is equipped with standard tyres sized 23.5 R25.

What is the turning radius of the Liebherr L 564 2+2 wheel loader?

The Liebherr L 564 2+2 wheel loader has an outside turning radius of 6.99 meters.

What is the lifting force of the Liebherr L 564 2+2 wheel loader?

The Liebherr L 564 2+2 wheel loader has a lifting force of 245 kN.

What is the maximum discharge height of the Liebherr L 564 2+2?

The Liebherr L 564 2+2 has a maximum discharge height of 6.03 meters.

What are the specifications of the primary work tool on the Liebherr L 564 2+2 wheel loader?

The primary work tool of the Liebherr L 564 2+2 wheel loader has a bucket capacity of 5 cubic meters and a bucket width of 3 meters.

How much is a Liebherr L 564 2+2 Wheel loader (2003u20132025) worth?

The residual value of the Liebherr L 564 2+2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
