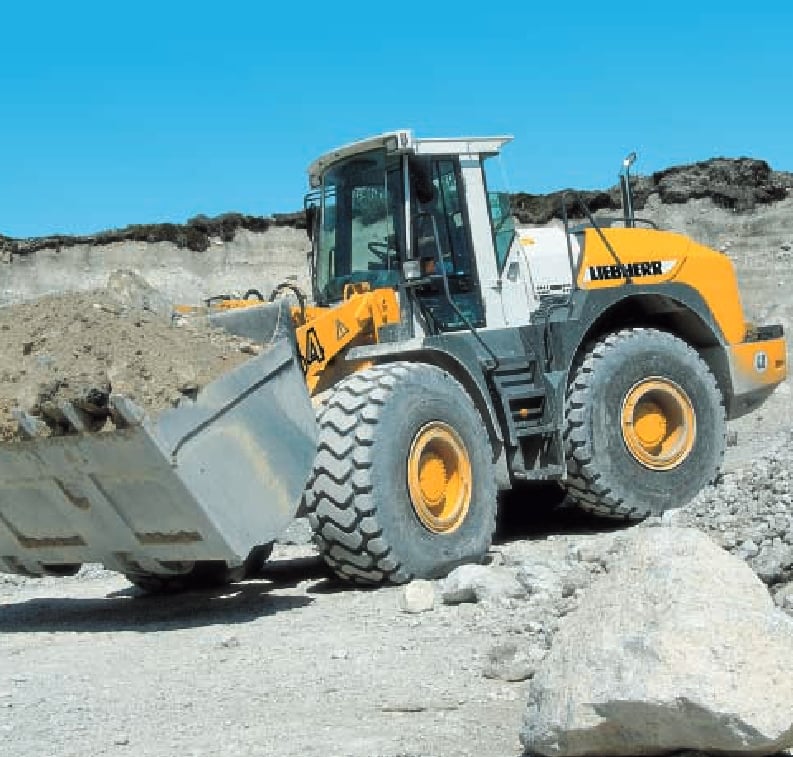

L 554 2+2 Liebherr L 554 2+2 Specifications & Technical Data (2003—2006)

The Liebherr L 554 2+2 is a wheel loader manufactured from 2003 to 2006. It has a weight of 17.3 tons and a transport length of 8.…

The Liebherr L 554 2+2 is a wheel loader manufactured from 2003 to 2006. It has a weight of 17.3 tons and a transport length of 8.425 meters. The bucket capacity is 3.8 cubic meters with a width of 2.7 meters. The maximum discharge height is 5.83 meters. It has a travel speed of 40 km/h and a transport width and height of 2.7 meters and 3.355 meters respectively. The lifting force is 180 kN and it has a turning radius outside of 6.44 meters.

Wheel Loaders Liebherr L 554 2+2

Visit Liebherr live at

Technical specs - L 554 2+2 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.3 t
Standard tyres
23.5 R25
Bucket width
2.7 m
Bucket capacity
3.8 m³
Transport length
8.425 m
Transport width
2.7 m
Transport height
3.355 m
Travel speed
40 km/h
Max. discharge height
5.83 m
Turning radius outside
6.44 m
Lifting force
180 kN
Engine manuf.
Liebherr
Engine type
D924 TI-E A2
Engine power
145 kW
Displacement
6.64 l
Revolutions at max torque
2000 rpm
Max. torque
802 Nm
No. of cylinders
4
Cylinder bore x stroke
122x142 mm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr L 554 2+2 FAQ

When was the Liebherr L 554 2+2 manufactured?

The Liebherr L 554 2+2 was manufactured from 2003 to 2006.

How much does the Liebherr L 554 2+2 wheel loader weigh?

The Liebherr L 554 2+2 wheel loader weighs 17.3 tons.

What are the transport dimensions of the Liebherr L 554 2+2 wheel loader?

The Liebherr L 554 2+2 has a transport length of 8.43 meters, a transport width of 2.7 meters, and a transport height of 3.36 meters.

What is the travel speed of the Liebherr L 554 2+2 wheel loader?

The Liebherr L 554 2+2 wheel loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Liebherr L 554 2+2 wheel loader?

The Liebherr L 554 2+2 is equipped with standard tyres sized 23.5 R25.

What is the turning radius of the Liebherr L 554 2+2 wheel loader?

The Liebherr L 554 2+2 has an outside turning radius of 6.44 meters.

What is the power rating of the Liebherr L 554 2+2 wheel loader?

There is no power rating data available for the Liebherr L 554 2+2 wheel loader in the provided information.

What is the maximum discharge height of the Liebherr L 554 2+2 wheel loader?

The Liebherr L 554 2+2 wheel loader has a maximum discharge height of 5.83 meters.

What are the specifications of the bucket on the Liebherr L 554 2+2 wheel loader?

The bucket of the Liebherr L 554 2+2 has a capacity of 3.8 cubic meters and a width of 2.7 meters.

How much is a Liebherr L 554 2+2 Wheel loader (2003u20132006) worth?

The residual value of the Liebherr L 554 2+2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
