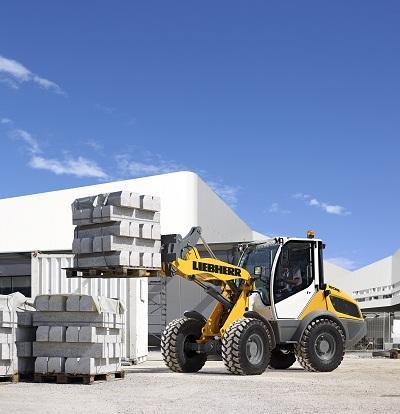

L 506 Compact Liebherr L 506 Compact Specifications & Technical Data (2013—2014)

The Liebherr L 506 Compact is a wheel loader manufactured by Liebherr from 2013 to 2014. It has a weight of 5.18 tons and a transp…

The Liebherr L 506 Compact is a wheel loader manufactured by Liebherr from 2013 to 2014. It has a weight of 5.18 tons and a transport length of 5.415 meters. The bucket capacity is 0.8 cubic meters with a bucket width of 1.9 meters. The maximum discharge height is 2.53 meters and it has a travel speed of 20 km/h. The transport width and height are both 1.9 meters and 2.46 meters respectively. The turning radius outside is 4.23 meters. The machine is equipped with a quick hitch mechanism.

Wheel Loaders Liebherr L 506 Compact
Wheel Loaders Liebherr L 506 Compact
Wheel Loaders Liebherr L 506 Compact
Wheel Loaders Liebherr L 506 Compact

Visit Liebherr live at

Technical specs - L 506 Compact Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.18 t
Standard tyres
340/80 R 18
Bucket width
1.9 m
Bucket capacity
0.8 m³
Bucket capacity min.
0.8 m³
Steering mode
KL
Transport length
5.415 m
Transport width
1.9 m
Transport height
2.46 m
Travel speed
20 km/h
Max. discharge height
2.53 m
Turning radius outside
4.23 m
Model series
L
Engine manuf.
Yanmar
Engine type
4TNV98
Engine power
46 kW
Displacement
3.32 l
Revolutions at max torque
1400 rpm
Emission level
III A

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Liebherr L 506 Compact FAQ

When was the Liebherr L 506 Compact manufactured?

The Liebherr L 506 Compact was manufactured from 2013 to 2014.

How much does the Liebherr L 506 Compact weigh?

The Liebherr L 506 Compact weighs 5.18 tons.

What are the transport dimensions of the Liebherr L 506 Compact wheel loader?

The Liebherr L 506 Compact has a transport length of 5.42 meters, a transport width of 1.9 meters, and a transport height of 2.46 meters.

What is the travel speed of the Liebherr L 506 Compact wheel loader?

The Liebherr L 506 Compact has a travel speed of 20 km/h.

What are the undercarriage specifications of the Liebherr L 506 Compact wheel loader?

The Liebherr L 506 Compact wheel loader is equipped with standard tyres sized 340/80 R 18.

What are the maneuverability specifications of the Liebherr L 506 Compact wheel loader?

The Liebherr L 506 Compact has an outside turning radius of 4.23 meters and features articulated-frame steering.

What is the maximum discharge height of the Liebherr L 506 Compact wheel loader?

The Liebherr L 506 Compact has a maximum discharge height of 2.53 meters.

What are the specifications of the bucket on the Liebherr L 506 Compact wheel loader?

The Liebherr L 506 Compact wheel loader has a bucket capacity of 0.8 cubic meters, a minimum bucket capacity of 0.8 cubic meters, and a bucket width of 1.9 meters.

How much is a Liebherr L 506 Compact Wheel loader (2013u20132014) worth?

The residual value of the Liebherr L 506 Compact depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
