L 504 Compact Liebherr L 504 Compact Specifications & Technical Data (2022—2026)

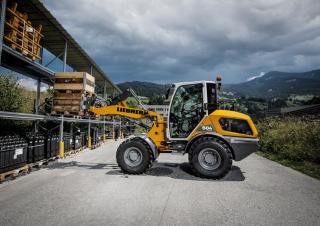

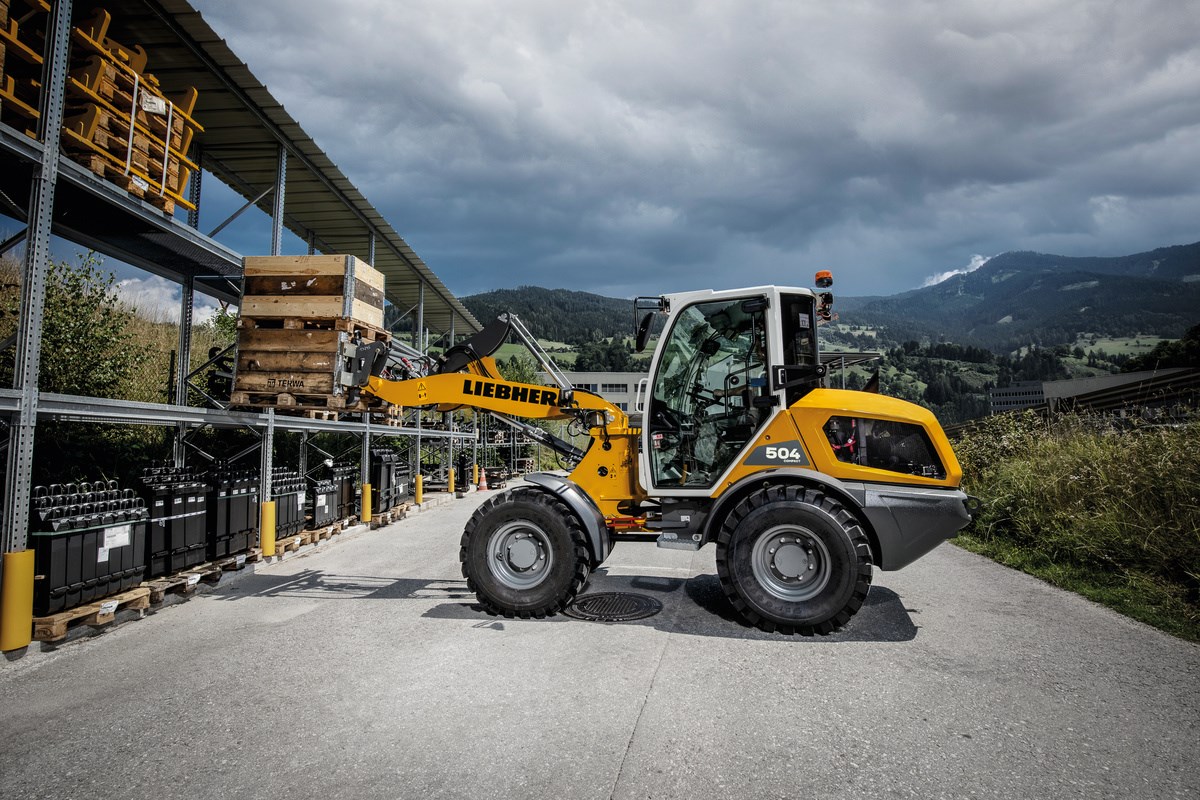

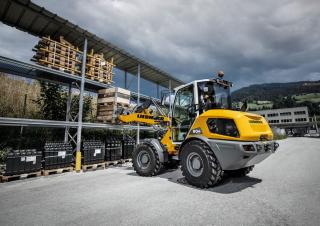

The Liebherr L 504 Compact is a wheel loader manufactured since 2022. It has a weight of 4.6 tons and a transport length of 5.365 …

The Liebherr L 504 Compact is a wheel loader manufactured since 2022. It has a weight of 4.6 tons and a transport length of 5.365 meters. The bucket capacity is 0.7 cubic meters, with a bucket width of 1.8 meters. The maximum discharge height is 2.52 meters, and it has a travel speed of 20 km/h. The transport width and height are both 1.8 meters and 2.48 meters respectively. The turning radius outside is 4.32 meters. The machine is equipped with a diesel particulate filter and a quick hitch hydr.

Visit Liebherr live at

L 504 Compact

Years of manufacture: 2022—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - L 504 Compact Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.6 t

Standard tyres: 340/80R18

Bucket width: 1.8 m

Bucket capacity: 0.7 m³

Bucket capacity min.: 0.7 m³

Bucket capacity max.: 0.7 m³

Steering mode: KL

Transport length: 5.365 m

Transport width: 1.8 m

Transport height: 2.48 m

Travel speed: 20 km/h

Max. discharge height: 2.52 m

Turning radius outside: 4.32 m

Model series: L

Engine manuf.: Yanmar

Engine type: 4TNV88C

Engine power: 34 kW

Displacement: 2.19 l

Revolutions at max torque: 1950 rpm

Max. torque: 140 Nm

No. of cylinders: 4

Cylinder bore x stroke: 88x90 mm

Emission level: V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: Yes

Download datasheets (PDF)

Liebherr L 504 Compact FAQ

When was the Liebherr L 504 Compact manufactured?

The Liebherr L 504 Compact was first produced in 2022.

How much does the Liebherr L 504 Compact weigh?

The Liebherr L 504 Compact weighs 4.6 tons.

What are the transport dimensions of the Liebherr L 504 Compact wheel loader?

The Liebherr L 504 Compact has a transport length of 5.37 meters, a transport width of 1.8 meters, and a transport height of 2.48 meters.

What is the travel speed of the Liebherr L 504 Compact wheel loader?

The Liebherr L 504 Compact has a travel speed of 20 km/h.

What is the standard tyre size of the Liebherr L 504 Compact wheel loader?

The Liebherr L 504 Compact wheel loader is equipped with standard tyres sized 340/80R18.

What are the maneuverability specifications of the Liebherr L 504 Compact wheel loader?

The Liebherr L 504 Compact features articulated-frame steering and has an outside turning radius of 4.32 meters.

What is the maximum discharge height of the Liebherr L 504 Compact wheel loader?

The Liebherr L 504 Compact has a maximum discharge height of 2.52 meters.

What are the specifications of the bucket on the Liebherr L 504 Compact wheel loader?

The Liebherr L 504 Compact wheel loader has a bucket with a capacity of 0.7 cubic meters and a width of 1.8 meters.

How much is a Liebherr L 504 Compact Wheel loader (2022u20132025) worth?

The residual value of the Liebherr L 504 Compact depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Liebherr L 504 Compact overview

Operator's cab

Operator’s Cab

Elastic mounted, noise-proof cab. ROPS roll over protection per EN ISO 3471 / EN 474-1 FOPS falling objects protection per EN ISO 3449 / EN 474-1, Cat. II. Operator’s door with 180° opening angle, right side hinged window with opener or 180° opening, single-pane safety glass (ESG), heated rear window (ESG), all panes are tinted. Adjustable steering column, optional: Liebherr operator’s seat 4 way adjustable, vibration-damped operator’s seat “Standard” (mechanically sprung, adjustable to operator’s weight). Cab heating and ventilation: Operator’s cabin with defroster and electrically heated rear window, fresh air filter, air recirculation system and hot water heating, cabin ventilation.

Bucket and Ground Engaging Tools

Tipping Load

What is tipping load? Load at centre of gravity of working equipment, so that the wheel loader just begins to tip over the front axle. This is the most unfavourable static-load position for the wheel loader. Lifting arms horizontal, wheel loader fully articulated at centre pivot. Pay load. The pay load must not exceed 50 % of the tipping load when articulated. This is equivalent to a static stability-margin factor of 2.0. Bucket capacity. The bucket volume is determined from the pay load.
