R540 Kubota R540 Specifications & Technical Data (2021—2026)

The Kubota R540 is a wheel loader manufactured since 2021. It has a weight of 4.665 tons and a transport length of 5.44 meters. Th…

The Kubota R540 is a wheel loader manufactured since 2021. It has a weight of 4.665 tons and a transport length of 5.44 meters. The bucket capacity is 0.65 cubic meters with a width of 1.72 meters. The travel speed of this machine is 20 km/h. It has a transport width and height of 1.72 meters and 2.455 meters respectively. The turning radius outside is 3.62 meters.

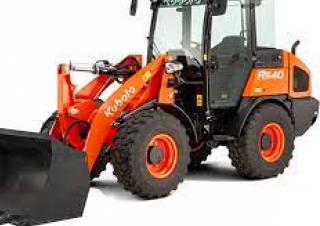

Wheel Loaders Kubota R540
Wheel Loaders Kubota R540
Wheel Loaders Kubota R540
Wheel Loaders Kubota R540

Technical specs - R540 Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.665 t
Bucket width
1.72 m
Bucket capacity
0.65 m³
Transport length
5.44 m
Transport width
1.72 m
Transport height
2.455 m
Travel speed
20 km/h
Turning radius outside
3.62 m
Model series
R
Engine manuf.
Kubota
Engine type
V2607-CR-E5-WL
Engine power
38 kW
Displacement
2.615 l
Revolutions at max torque
2400 rpm
Emission level
Tier 4

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kubota R540 FAQ

When was the Kubota R540 manufactured?

The Kubota R540 was first produced in 2021.

How much does the Kubota R540 weigh?

The Kubota R540 weighs 4.67 tons.

What are the transport dimensions of the Kubota R540 wheel loader?

The Kubota R540 has a transport length of 5.44 meters, a transport width of 1.72 meters, and a transport height of 2.46 meters.

What is the travel speed of the Kubota R540 wheel loader?

The Kubota R540 wheel loader has a travel speed of 20 km/h.

What is the turning radius of the Kubota R540 wheel loader?

The Kubota R540 wheel loader has an outside turning radius of 3.62 meters.

What are the specifications of the primary work tool on the Kubota R540 wheel loader?

The Kubota R540 is equipped with a bucket that has a capacity of 0.65 cubic meters and a width of 1.72 meters.

How much is a Kubota R540 Wheel loader (2021u20132025) worth?

The residual value of the Kubota R540 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kubota R540 overview

Kubota R540 features overview

Kubota Wheel Loaders

Kubota's next-generation R540 and R640 wheel loaders are built to get the job done quickly, easily, and efficiently. They're built for comfort, with a new, high-visibility cabin. They're also built for simple and productive operation, even by operators with novice experience. Additionally, they are built for performance, with enhanced productivity features and power to spare.


Engine / Powertrain / Drivetrain

Multi-function operating lever

All major loader functions are on a single lever that is easy to operate with just one hand, on the R540 and R640. The 2-step speed control switch lets you quickly change speeds, allowing you to operate at optimum efficiency for the task at hand.


Differential lock (100% On demand, front & rear)

Should the wheels start to slip, simply press the differential lock switch to immediately engage both front and rear wheels. The result is positive slip-free traction.


Operator's cab

Air conditioning

A powerful heating/cooling system and eleven vents provide optimum comfort on the coldest winter and hottest summer days.


High-visibility cabin

Fully enclosed in glass, the high-visibility cabin offers the operator a panoramic perspective of the environment outside, with the pallet fork tips clearly visible from the driver's seat. The full glass door and wide opening window provide excellent visibility to the left and right, while the rear window offers an unobstructed view when traveling in reverse.


ROPS/FOPS cab and canopy

Manufactured and attached at the Kubota factory, both the Roll-Over Protective Structure (ROPS) and Falling Object Protective Structure (FOPS) meet the applicable ISO, SAE standards and OSHA regulations.


Bucket and Ground Engaging Tools

Working range

A long reach and high clearance make all types of material handling jobs easy. The high clearance lets you load trucks with ease, while the superior reach makes pallet fork operations faster and more efficient.


Arm tilt / Parallel movement

Transporting a fully loaded pallet with the pallet fork, Kubota's arm tilt/parallel movement structure keeps the load upright and steady, even while raising or lowering the lift arm.


Powerful lifting capacity

An improved lifting force provides smooth operation for both R540 and R640, while lifting and handling material in a variety of applications.
