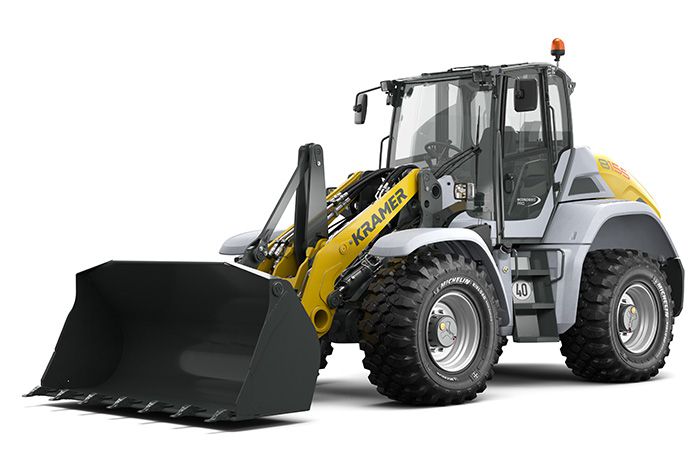

8155L Kramer 8155L Specifications & Technical Data (2018—2019)

The Kramer 8155L is a wheel loader manufactured by Kramer from 2018 to 2019. It has a weight of 10.5 tons and a transport length o…

The Kramer 8155L is a wheel loader manufactured by Kramer from 2018 to 2019. It has a weight of 10.5 tons and a transport length of 7.04 meters. The bucket capacity is 1.35 cubic meters with a width of 2.5 meters. The maximum discharge height is 3.95 meters. It has a travel speed of 40 km/h and a transport width of 2.5 meters. The transport height is 3.01 meters. The lifting force is 68 kN and the turning radius outside is 3.865 meters. The bucket capacity is a minimum of 1.35 cubic meters. It is equipped with air conditioning.

8155L

Years of manufacture: 2018—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 8155L Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 10.5 t

Bucket width: 2.5 m

Bucket capacity: 1.35 m³

Bucket capacity min.: 1.35 m³

Steering mode: AL/VL

Transport length: 7.04 m

Transport width: 2.5 m

Transport height: 3.01 m

Travel speed: 40 km/h

Max. discharge height: 3.95 m

Turning radius outside: 3.865 m

Lifting force: 68 kN

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 100 kW

Displacement: 3.6 l

Revolutions at max torque: 2200 rpm

Max. torque: 500/1600 Nm

No. of cylinders: 4

Emission level: IV

More technical details, like: standard tyres, bucket capacity max., model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

8155L Kramer Specification for Europe (DE)

Kramer 8155L FAQ

When was the Kramer 8155L manufactured?

The Kramer 8155L was manufactured from 2018 to 2019.

How much does the Kramer 8155L wheel loader weigh?

The Kramer 8155L wheel loader weighs 10.5 tons.

What are the transport dimensions of the Kramer 8155L wheel loader?

The Kramer 8155L has a transport length of 7.04 meters, a transport width of 2.5 meters, and a transport height of 3.01 meters.

What is the travel speed of the Kramer 8155L wheel loader?

The Kramer 8155L has a travel speed of 40 km/h.

What are the maneuverability specifications of the Kramer 8155L wheel loader?

The Kramer 8155L has an outside turning radius of 3.865 meters and features all-wheel steering as well as front steering modes.

What is the power rating of the Kramer 8155L wheel loader?

Power rating data for the Kramer 8155L wheel loader is not available in the provided information.

What is the maximum discharge height of the Kramer 8155L?

The Kramer 8155L has a maximum discharge height of 3.95 meters.

What are the bucket specifications of the Kramer 8155L wheel loader?

The Kramer 8155L wheel loader has a bucket capacity of 1.35 cubic meters and a bucket width of 2.5 meters.
