8155 Kramer 8155 Specifications & Technical Data (2018—2021)

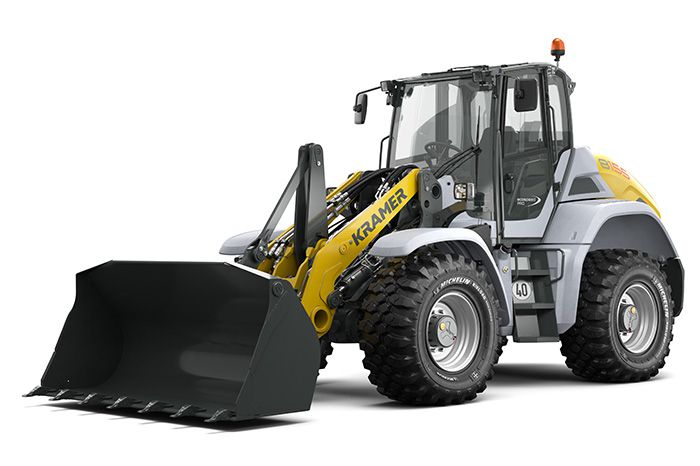

The Kramer 8155 is a wheel loader manufactured from 2018 to 2021. It has a weight of 9.85 tons and a transport length of 6.45 mete…

The Kramer 8155 is a wheel loader manufactured from 2018 to 2021. It has a weight of 9.85 tons and a transport length of 6.45 meters. The bucket capacity ranges from 1.35 to 4.5 cubic meters, with a bucket width of 2.5 meters. The maximum discharge height is 2.725 meters. It has a travel speed of 20 km/h and a transport width of 2.5 meters. The transport height is 3.01 meters, and the turning radius outside is 3.865 meters. Special equipment includes air conditioning, a diesel particulate filter, and a quick hitch hydraulic mechanism.

8155

Years of manufacture: 2018—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 8155 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.85 t

Bucket width: 2.5 m

Bucket capacity: 1.35 m³

Bucket capacity min.: 1.35 m³

Bucket capacity max.: 4.5 m³

Steering mode: AL/VL

Transport length: 6.45 m

Transport width: 2.5 m

Transport height: 3.01 m

Travel speed: 20 km/h

Max. discharge height: 2.725 m

Turning radius outside: 3.865 m

Lifting force: 65 kN

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 100 kW

Displacement: 3.6 l

Revolutions at max torque: 2200 rpm

Max. torque: 500/1600 Nm

No. of cylinders: 4

Emission level: IV

More technical details, like: standard tyres, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

8155 Kramer Specification for Europe (DE)

Kramer 8155 FAQ

When was the Kramer 8155 manufactured?

The Kramer 8155 was manufactured from 2018 to 2021.

How much does the Kramer 8155 wheel loader weigh?

The Kramer 8155 wheel loader weighs 9.85 tons.

What are the transport dimensions of the Kramer 8155 wheel loader?

The Kramer 8155 has a transport length of 6.45 meters, a transport width of 2.5 meters, and a transport height of 3.01 meters.

What is the travel speed of the Kramer 8155 wheel loader?

The Kramer 8155 has a travel speed of 20 km/h.

What are the turning radius and steering modes of the Kramer 8155 wheel loader?

The Kramer 8155 has an outside turning radius of 3.865 meters and features both all-wheel steering and front steering modes.

What is the lifting force of the Kramer 8155 wheel loader?

The Kramer 8155 wheel loader has a lifting force of 65 kN.

What is the maximum discharge height of the Kramer 8155?

The Kramer 8155 has a maximum discharge height of 2.73 meters.

What are the specifications of the bucket on the Kramer 8155 wheel loader?

The Kramer 8155 wheel loader has a bucket with a capacity ranging from 1.35 to 4.5 cubic meters and a width of 2.5 meters.
