8105 Kramer 8105 Specifications & Technical Data (2014—2021)

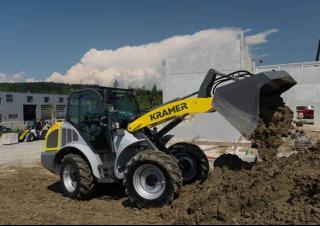

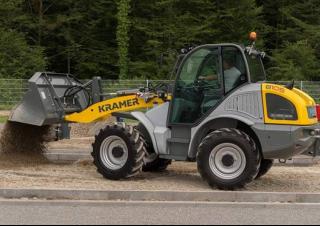

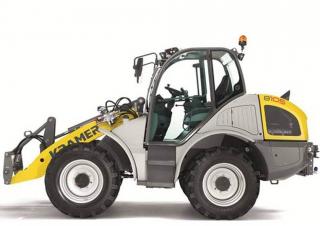

The Kramer 8105 is a wheel loader manufactured from 2014 to 2021. It has a weight of 5.5 tons and a transport length of 5.71 meter…

The Kramer 8105 is a wheel loader manufactured from 2014 to 2021. It has a weight of 5.5 tons and a transport length of 5.71 meters. The bucket capacity is 1.05 cubic meters, with a bucket width of 2.05 meters. The maximum discharge height is 2.5 meters, and it has a travel speed of 20 km/h. The transport width is 1.92 meters, and the transport height is 2.64 meters. The turning radius outside is 2.95 meters, and it is equipped with a quick hitch hydraulic mechanism.

8105

Years of manufacture: 2014—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 8105 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.5 t

Standard tyres: 14.5-20

Bucket width: 2.05 m

Bucket capacity: 1.05 m³

Bucket capacity min.: 1.05 m³

Steering mode: AL

Transport length: 5.71 m

Transport width: 1.92 m

Transport height: 2.64 m

Travel speed: 20 km/h

Max. discharge height: 2.5 m

Turning radius outside: 2.95 m

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Displacement: 2.9 l

Revolutions at max torque: 2300 rpm

No. of cylinders: 4

Emission level: III B

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Kramer 8105 FAQ

When was the Kramer 8105 manufactured?

The Kramer 8105 was manufactured from 2014 to 2021.

How much does the Kramer 8105 wheel loader weigh?

The Kramer 8105 wheel loader weighs 5.5 tons.

What are the transport dimensions of the Kramer 8105 wheel loader?

The Kramer 8105 has a transport length of 5.71 meters, a transport width of 1.92 meters, and a transport height of 2.64 meters.

What is the travel speed of the Kramer 8105 wheel loader?

The Kramer 8105 wheel loader has a travel speed of 20 km/h.

What is the standard tyre size of the Kramer 8105 wheel loader?

The Kramer 8105 wheel loader is equipped with standard tyres of size 14.5-20.

What are the maneuverability specifications of the Kramer 8105 wheel loader?

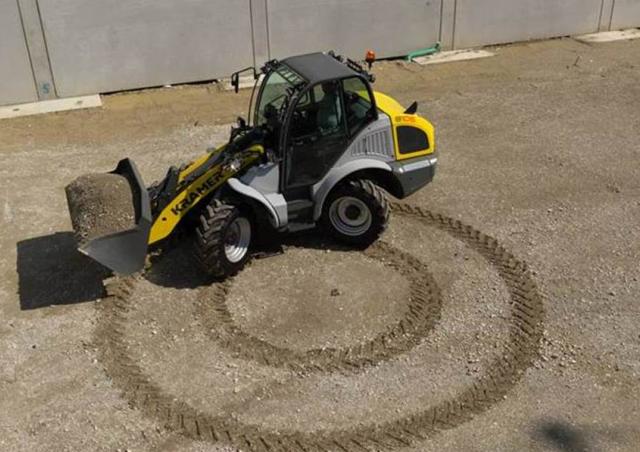

The Kramer 8105 wheel loader has an outside turning radius of 2.95 meters and features all-wheel steering.

What is the maximum discharge height of the Kramer 8105?

The Kramer 8105 has a maximum discharge height of 2.5 meters.

What are the bucket specifications of the Kramer 8105 wheel loader?

The Kramer 8105 wheel loader has a bucket capacity of 1.05 cubic meters and a bucket width of 2.05 meters.
